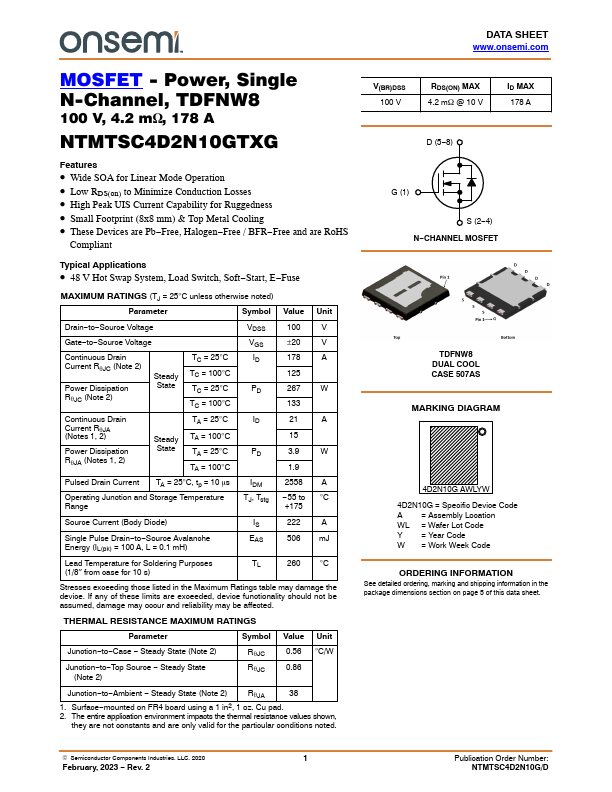

NTMTSC4D2N10GTXG
NTMTSC4D2N10GTXG is 100V 178A N-Channel Power MOSFET manufactured by onsemi.
Features
- Wide SOA for Linear Mode Operation
- Low RDS(on) to Minimize Conduction Losses
- High Peak UIS Current Capability for Ruggedness
- Small Footprint (8x8 mm) & Top Metal Cooling
- These Devices are Pb- Free, Halogen- Free / BFR- Free and are Ro HS pliant
G (1)
S (2- 4) N- CHANNEL MOSFET
Typical Applications
- 48 V Hot Swap System, Load Switch, Soft- Start, E- Fuse
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain
TC = 25°C
Current Rq JC (Note 2) Steady TC = 100°C
Power Dissipation Rq JC (Note 2)
State TC = 25°C
TC = 100°C
267 W
Continuous Drain Current Rq JA (Notes 1, 2)
Power Dissipation Rq JA (Notes 1, 2)
TA = 25°C
Steady TA = 100°C
State TA = 25°C
TA =...
