SBCW66GLT1G - General Purpose Transistor

Datasheet Summary

Features

  • S Prefix for Automotive and Other.

📥 Download Datasheet

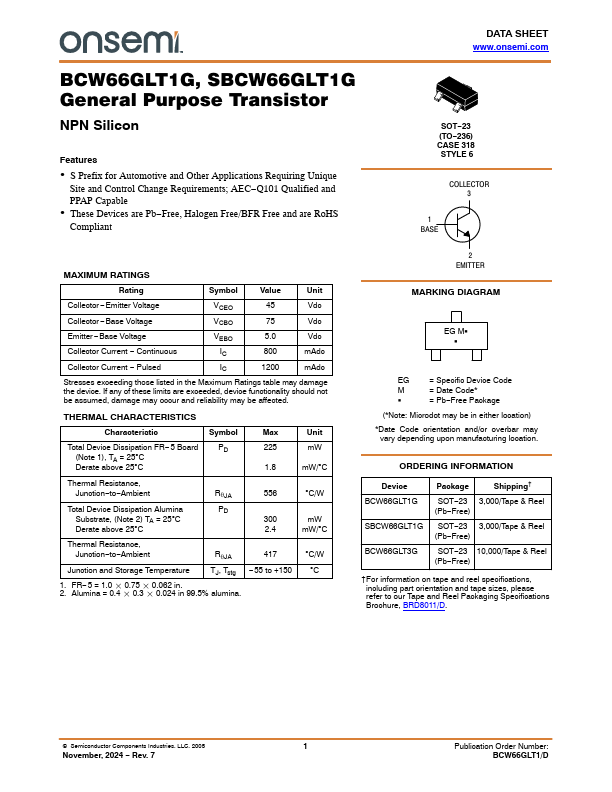

Datasheet preview – SBCW66GLT1G

Datasheet Details

Part number SBCW66GLT1G
Manufacturer ON Semiconductor
File Size 75.15 KB
Description General Purpose Transistor
Datasheet download datasheet SBCW66GLT1G Datasheet

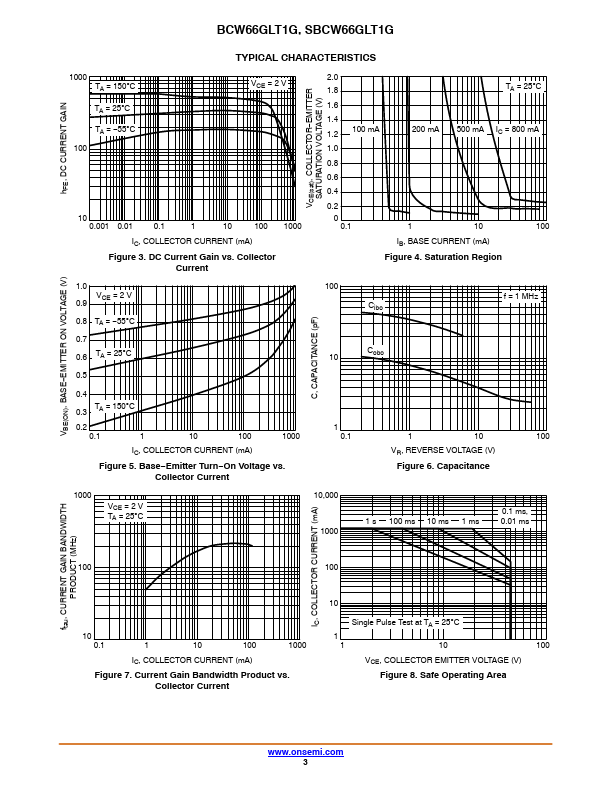

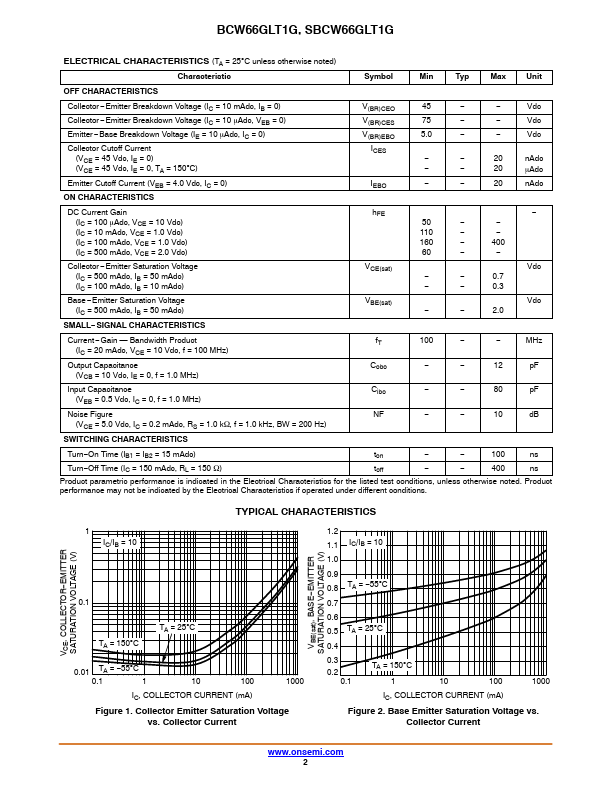

Additional preview pages of the SBCW66GLT1G datasheet.

📁 Similar Datasheet

  • SBC020N03LSG - Power Transistor (Infineon Technologies)
  • SBC2015-B - Bluetooth-Modules (Smartdesign Technology)
  • SBC23-11 - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
  • SBC23-11EGWA - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
  • SBC23-11SURKCGKWA - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
  • SBC327 - PNP Silicon Transistor (AUK corp)
  • SBC328 - PNP Silicon Transistor (AUK corp)
  • SBC337 - NPN Silicon Transistor (AUK corp)
  • SBC338 - NPN Silicon Transistor (AUK corp)
  • SBC546 - NPN Silicon Transistor (AUK corp)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
BCW66GLT1G, SBCW66GLT1G General Purpose Transistor NPN Silicon Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector −Emitter Voltage VCEO 45 Vdc Collector −Base Voltage VCBO 75 Vdc Emitter −Base Voltage VEBO 5.0 Vdc Collector Current − Continuous IC 800 mAdc Collector Current − Pulsed IC 1200 mAdc Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
