SBCX19LT1G - Transistor

Features

S and NSV Prefix for Automotive and Other.

ON Semiconductor

Datasheet Details

Part number	SBCX19LT1G
Manufacturer	ON Semiconductor
File Size	91.32 KB
Description	Transistor
Datasheet	SBCX19LT1G Datasheet
Additional preview pages of the SBCX19LT1G datasheet.

📁 Similar Datasheet

SBC020N03LSG - Power Transistor (Infineon Technologies)
SBC2015-B - Bluetooth-Modules (Smartdesign Technology)
SBC23-11 - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
SBC23-11EGWA - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
SBC23-11SURKCGKWA - SINGLE DIGIT NUMERIC DISPLAY (Kingbright)
SBC327 - PNP Silicon Transistor (AUK corp)
SBC328 - PNP Silicon Transistor (AUK corp)
SBC337 - NPN Silicon Transistor (AUK corp)
SBC338 - NPN Silicon Transistor (AUK corp)
SBC546 - NPN Silicon Transistor (AUK corp)

Other Datasheets by ON Semiconductor

SBC817-16L - NPN Silicon Transistors
SBC817-25L - NPN Silicon Transistors
SBC817-40L - NPN Silicon Transistors
SBC846 - General Purpose Transistors
SBC846ALT1G - NPN Silicon Transistor
SBC846BDW1T1G - Dual General Purpose Transistors
SBC847 - General Purpose Transistors
SBC847BDW1T1G - Dual General Purpose Transistors

Full PDF Text Transcription

Click to expand full text

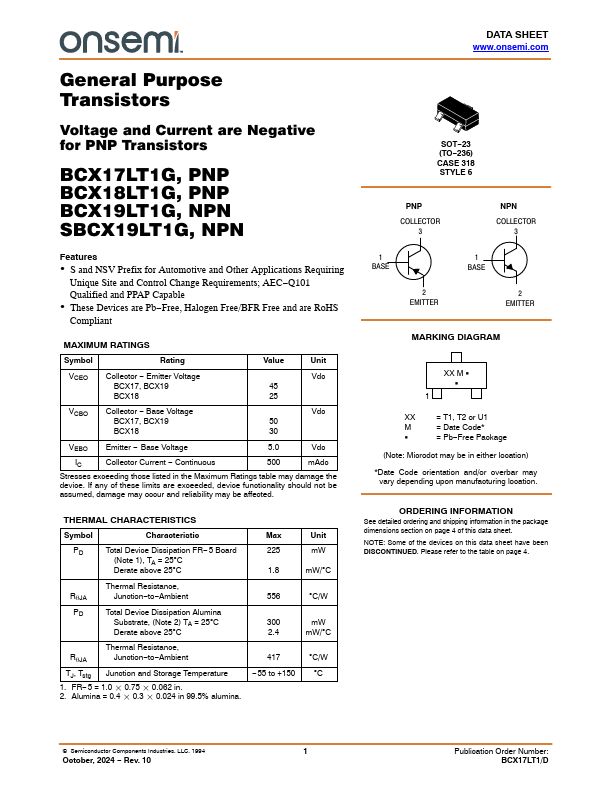

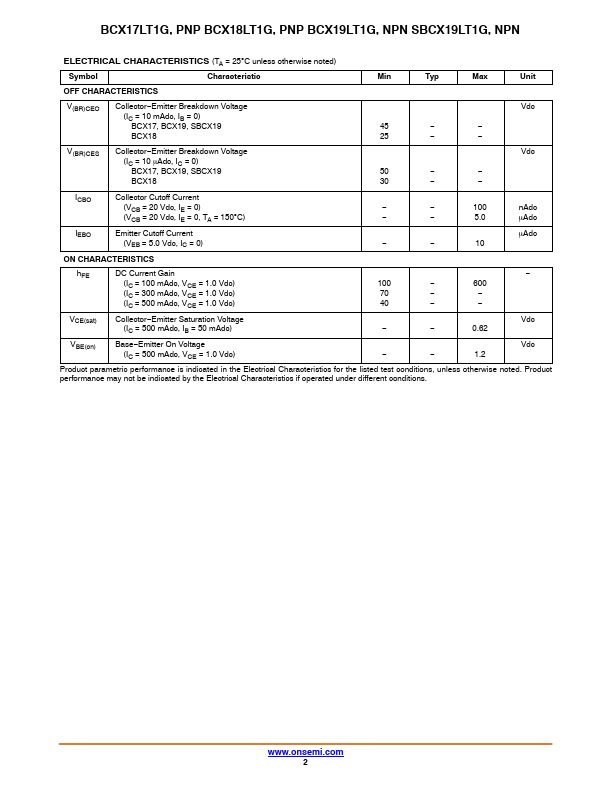

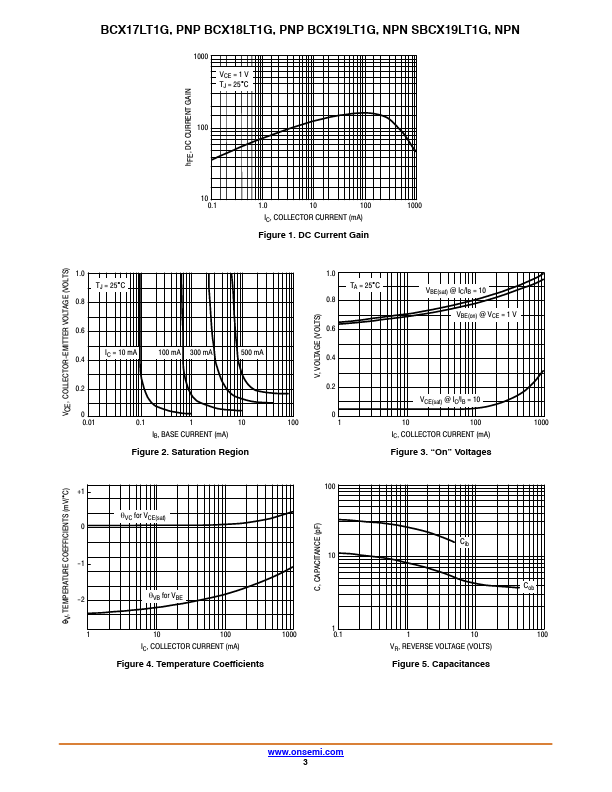

BCX17LT1G, PNP BCX18LT1G, PNP BCX19LT1G, NPN SBCX19LT1G, NPN General Purpose Transistors Voltage and Current are Negative for PNP Transistors Features • S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector − Emitter Voltage BCX17, BCX19 BCX18 VCEO Vdc 45 25 Collector − Base Voltage BCX17, BCX19 BCX18 VCBO Vdc 50 30 Emitter − Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS Characteristic VEBO IC Symbol 5.0 500 Max Vdc mAdc Unit Total Device Dissipation FR− 5 Board (Note 1), TA = 25°C Derate above 25°C PD 225 mW 1.
