SBRB1545CTG - Power Rectifier

Datasheet Summary

Features

  • Features.
  • Center.
  • Tap Configuration.
  • Guardring for Stress Protection.
  • Low Forward Voltage.
  • 175°C Operating Junction Temperature.
  • Epoxy Meets UL 94, V.
  • 0 @ 0.125 in.
  • Short Heatsink Tab Manufactured.
  • Not Sheared.
  • Similar in Size to the Industry Standard TO220 Package.
  • SBRB Prefix for Automotive and Other.

📥 Download Datasheet

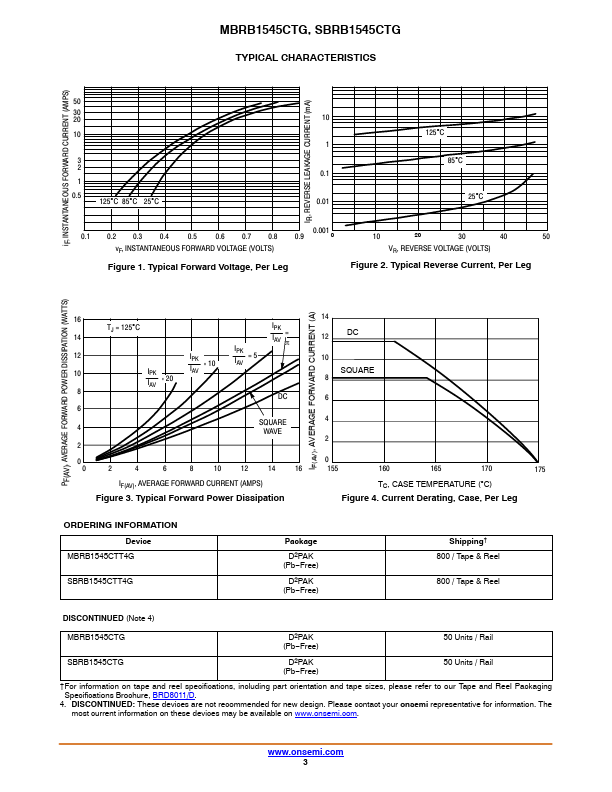

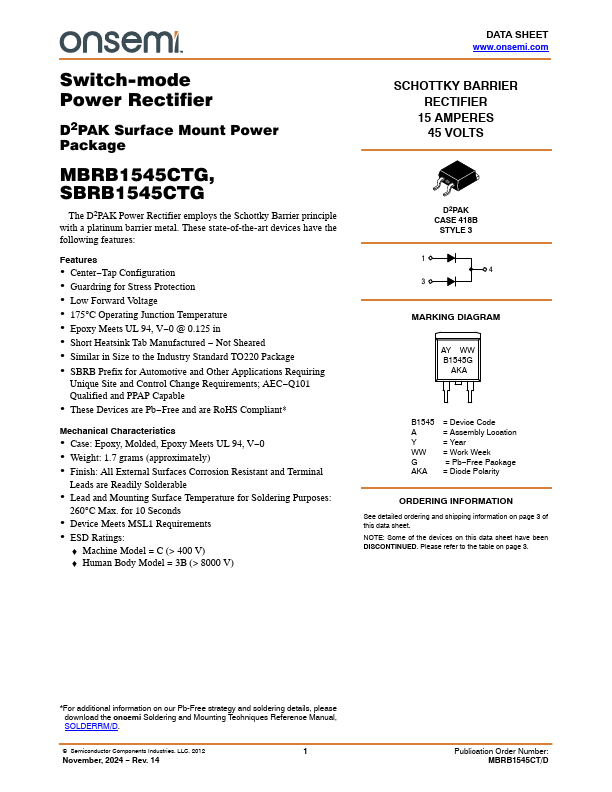

Datasheet preview – SBRB1545CTG

Datasheet Details

Part number SBRB1545CTG
Manufacturer ON Semiconductor
File Size 95.43 KB
Description Power Rectifier
Datasheet download datasheet SBRB1545CTG Datasheet

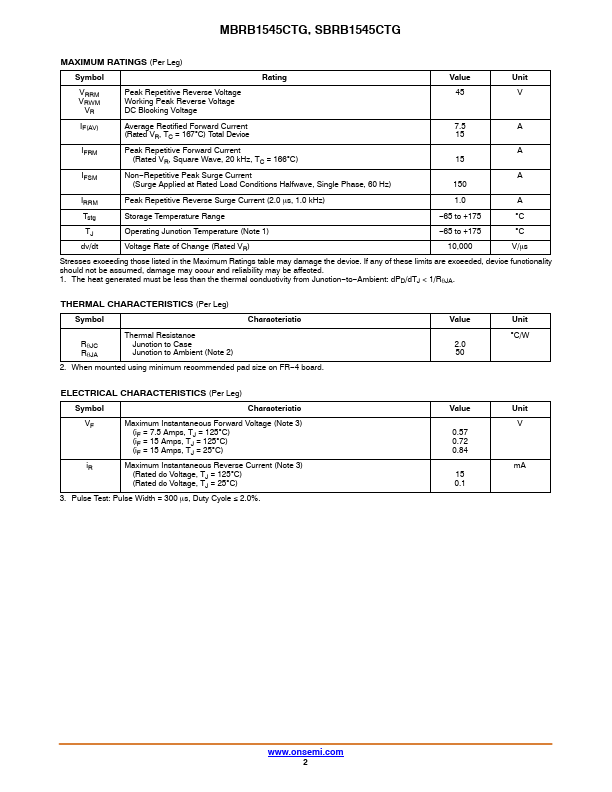

Additional preview pages of the SBRB1545CTG datasheet.

📁 Similar Datasheet

  • SBRB30200CT - Schottky Barrier Rectifier (GOOD-ARK)
  • SBR0 - (SBR05 - SBR30) Standard Recovery 1-Phase Silicon Bridge Rectifier Assembly (Semtech Corporation)
  • SBR0120S3 - (SBR0120S3 / SBR0120S5) Super barrier rectifier (APD)
  • SBR0120S5 - (SBR0120S3 / SBR0120S5) Super barrier rectifier (APD)
  • SBR0130S3 - (SBR0130S3 / SBR0130S5) Super barrier rectifier (APD)
  • SBR0130S5 - (SBR0130S3 / SBR0130S5) Super barrier rectifier (APD)
  • SBR0140S3 - (SBR0140S3 / SBR0140S5) Super barrier rectifier (APD)
  • SBR0140S5 - (SBR0140S3 / SBR0140S5) Super barrier rectifier (APD)
  • SBR0220LP - Super Barrier Rectifier (Diodes Incorporated)
  • SBR0220T5 - Super Barrier Rectifier (Diodes Incorporated)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
MBRB1545CTG, SBRB1545CTG SWITCHMODE Power Rectifier D2PAK Surface Mount Power Package The D2PAK Power Rectifier employs the Schottky Barrier principle with a platinum barrier metal. These state-of-the-art devices have the following features: Features • Center−Tap Configuration • Guardring for Stress Protection • Low Forward Voltage • 175°C Operating Junction Temperature • Epoxy Meets UL 94, V−0 @ 0.125 in • Short Heatsink Tab Manufactured − Not Sheared • Similar in Size to the Industry Standard TO220 Package • SBRB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant* Mechanical Characteristics • Case: Epoxy, Molded, Epoxy Meets UL 94, V−0 • Weight: 1.
