SMMBT5401L
SMMBT5401L is High Voltage PNP Silicon Transistor manufactured by onsemi.

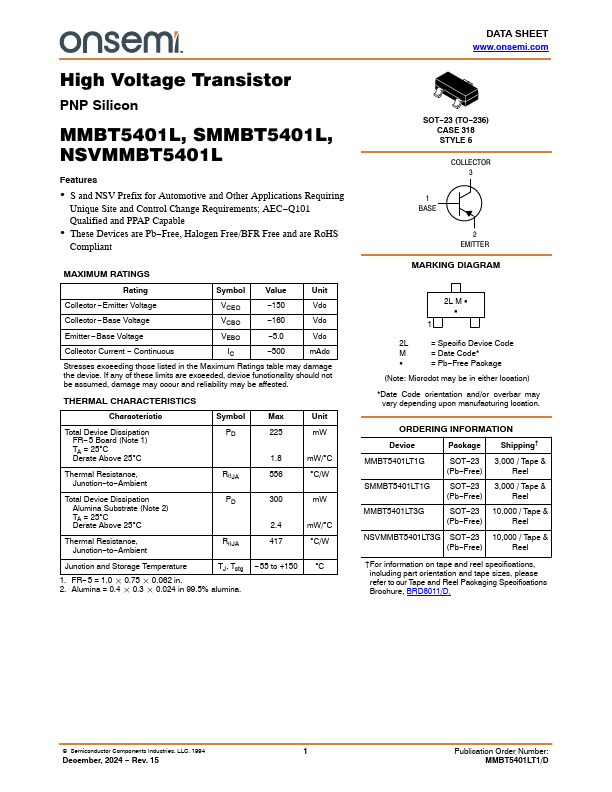

DATA SHEET .onsemi.
High Voltage Transistor
PNP Silicon
MMBT5401L, SMMBT5401L, NSVMMBT5401L
Features
- S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS
Rating
Symbol Value
Unit
Collector
- Emitter Voltage
VCEO
- 150
Vdc
Collector
- Base Voltage
VCBO
- 160
Vdc
Emitter
- Base Voltage
VEBO
- 5.0
Vdc
Collector Current
- Continuous
- 500 m...
