SMMBTA06W - Driver Transistor

Datasheet Summary

Features

Moisture Sensitivity Level: 1.
ESD Rating:.
Human Body Model.
4 kV.
Machine Model.
400 V.
S Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	SMMBTA06W
Manufacturer	ON Semiconductor
File Size	150.09 KB
Description	Driver Transistor
Datasheet	SMMBTA06W Datasheet

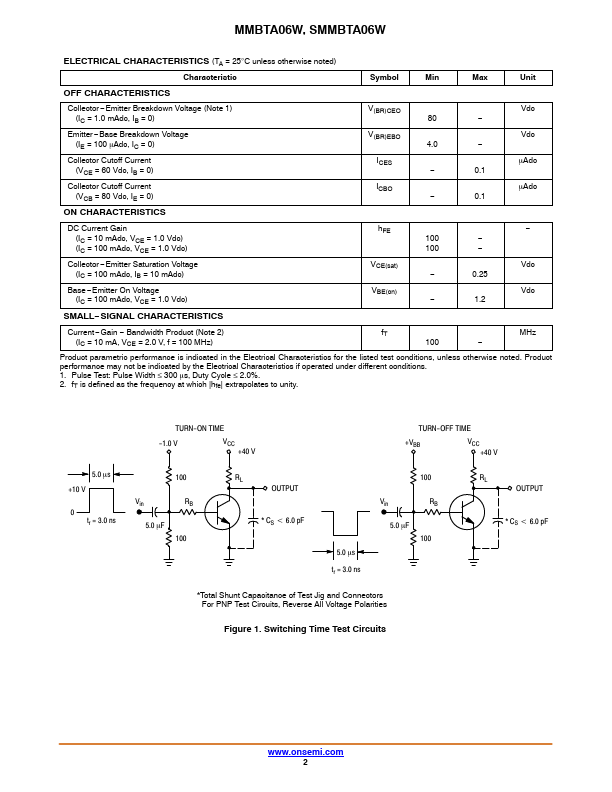

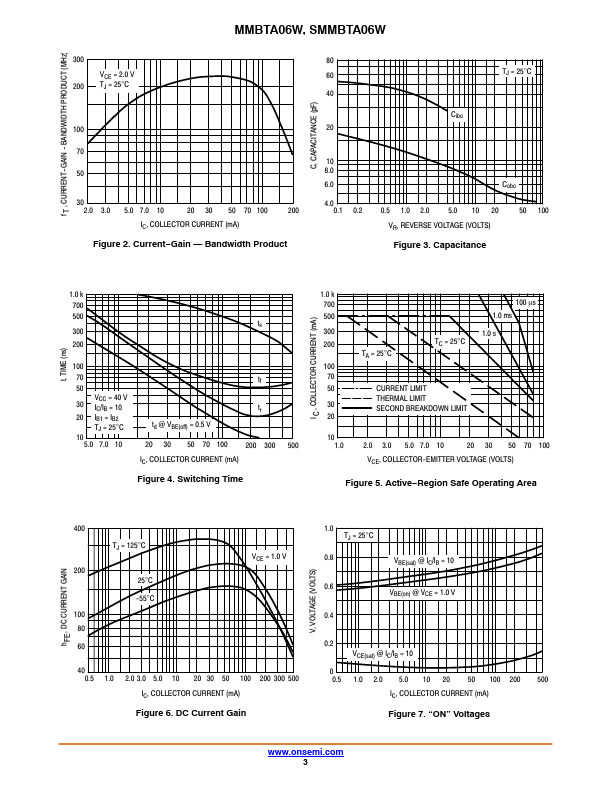

Additional preview pages of the SMMBTA06W datasheet.

📁 Similar Datasheet

SMMBT3904WT1G - NPN Transistor (onsemi)
SMMBT3906WT1G - PNP Transistor (onsemi)
SMMB912D - Dual N-Channel MOSFET (Vishay)
SMMB912DK - Dual N-Channel MOSFET (Vishay)
SMMBD2837LT1G - Monolithic Dual Switching Diodes (onsemi)
SMM-102-02-F-D - SOCKET STRIP (Samtec)
SMM-102-02-F-S - SOCKET STRIP (Samtec)
SMM-102-02-F-x - SOCKET STRIP (Samtec)
SMM-1xx-02-x-x - SOCKET STRIP (Samtec)
SMM0102 - Thin Film Micro-MELF Resistors (Vishay Siliconix)

Other Datasheets by ON Semiconductor

SMMBTA06L - Driver Transistors
SMMBTA13L - Darlington Amplifier Transistors
SMMBTA13LT1G - Darlington Amplifier Transistors
SMMBTA14L - Darlington Amplifier Transistors
SMMBTA14LT1G - Darlington Amplifier Transistors
SMMBTA14LT3G - Darlington Amplifier Transistors
SMMBTA42L - High Voltage Transistors
SMMBTA56L - PNP Silicon Driver Transistors

Full PDF Text Transcription

Click to expand full text

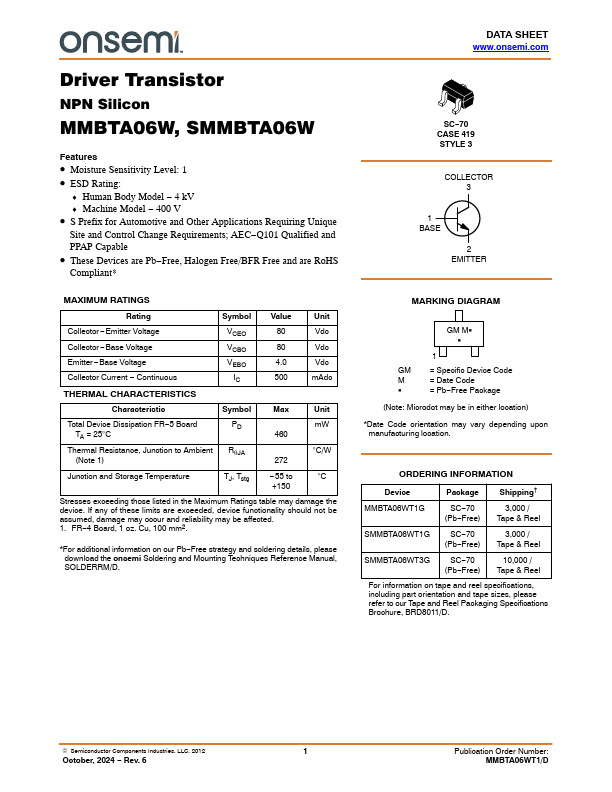

MMBTA06W, SMMBTA06W, Driver Transistor NPN Silicon Features • Moisture Sensitivity Level: 1 • ESD Rating: ♦ Human Body Model − 4 kV ♦ Machine Model − 400 V • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS VCEO VCBO VEBO IC 80 Vdc 80 Vdc 4.
