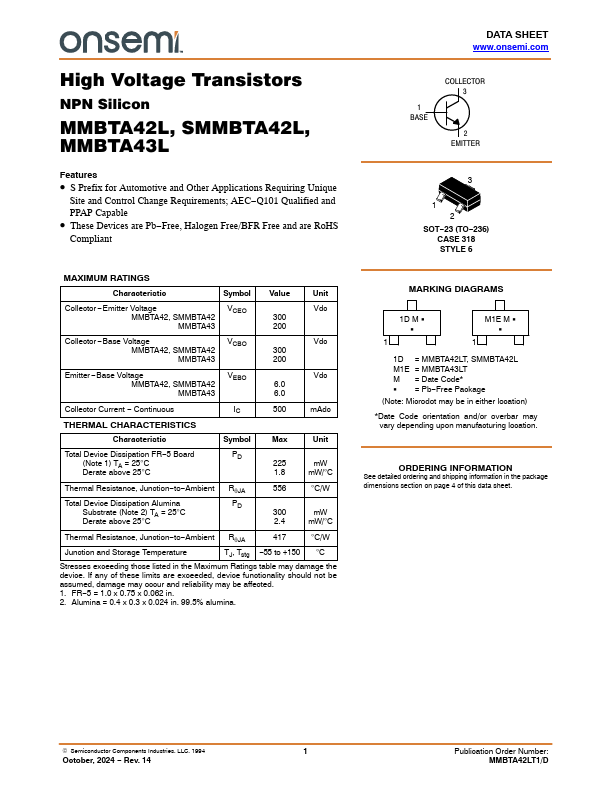

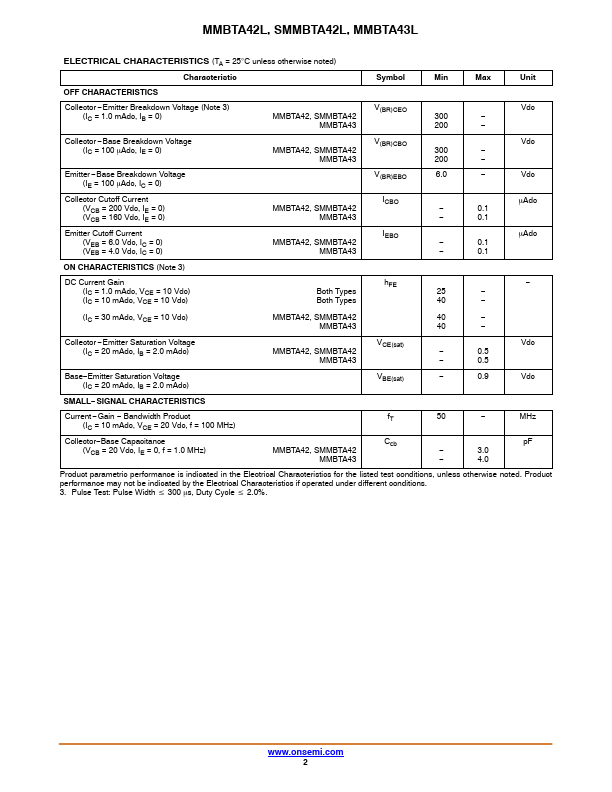

MMBTA42L, SMMBTA42L, MMBTA43L High Voltage Transistors NPN Silicon Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Characteristic Symbol Value Unit Collector −Emitter Voltage VCEO Vdc MMBTA42, SMMBTA42 300 MMBTA43 200 Collector −Base Voltage MMBTA42, SMMBTA42 VCBO 300 Vdc MMBTA43 200 Emitter −Base Voltage VEBO Vdc MMBTA42, SMMBTA42 6.0 MMBTA43 6.0 Collector Current − Continuous THERMAL CHARACTERISTICS IC 500 mAdc Characteristic Symbol Max Unit Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C PD 225 mW 1.
