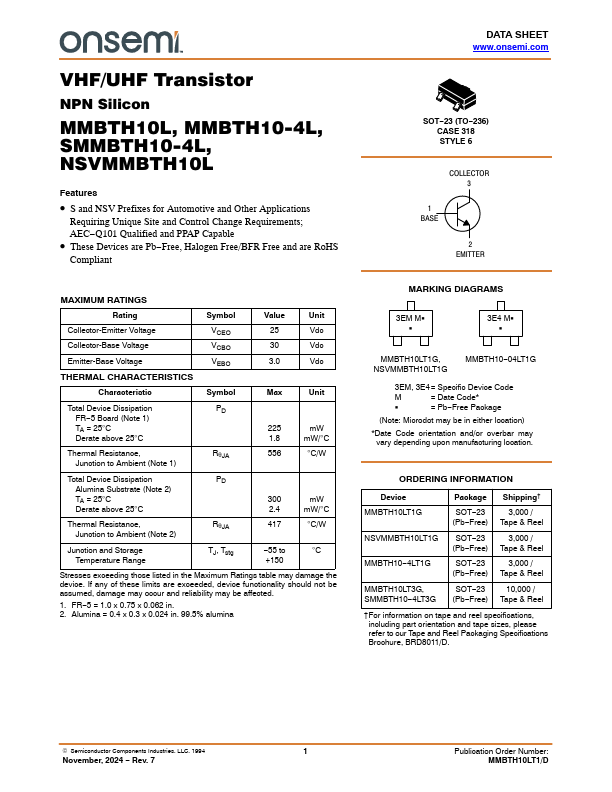

SMMBTH10-4L
SMMBTH10-4L is NPN Silicon VHF/UHF Transistor manufactured by onsemi.
Features
- S and NSV Prefixes for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage THERMAL CHARACTERISTICS
VCEO VCBO VEBO
Vdc
Vdc
Vdc
Characteristic
Symbol
Max
Unit
Total Device Dissipation
FR- 5 Board (Note 1) TA = 25°C Derate above 25°C
225 m W
1.8 m W/°C
Thermal Resistance, Junction to Ambient (Note 1)
RθJA
°C/W
Total Device Dissipation
Alumina Substrate (Note 2) TA = 25°C Derate above 25°C
300 m W
2.4 m W/°C
Thermal Resistance, Junction to Ambient (Note 2)
RθJA
°C/W
Junction and Storage Temperature...
