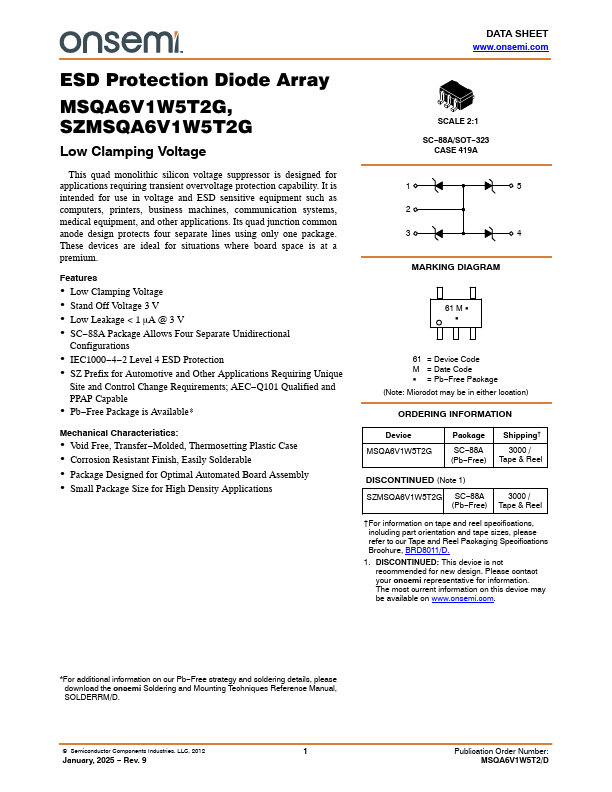

SZMSQA6V1W5T2G Datasheet Esd Protection Diode Array

Manufacturer: onsemi

Overview: MSQA6V1W5T2G, SZMSQA6V1W5T2G ESD Protection Diode Array Low Clamping Voltage This quad monolithic silicon voltage suppressor is designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as puters, printers, business machines, munication systems, medical equipment, and other applications. Its quad junction mon anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.

Key Features

  • Low Clamping Voltage.
  • Stand Off Voltage 3 V.
  • Low Leakage < 1 mA @ 3 V.
  • SC.
  • 88A Package Allows Four Separate Unidirectional Configurations.
  • IEC1000.
  • 4.
  • 2 Level 4 ESD Protection.
  • SZ Prefix for Automotive and Other.
