UJ3D06506TS - 650V SiC Diode

Product Overview

ON Semiconductor

Datasheet Details

Part number	UJ3D06506TS
Manufacturer	ON Semiconductor
File Size	343.39 KB
Description	650V SiC Diode
Datasheet	UJ3D06506TS Datasheet

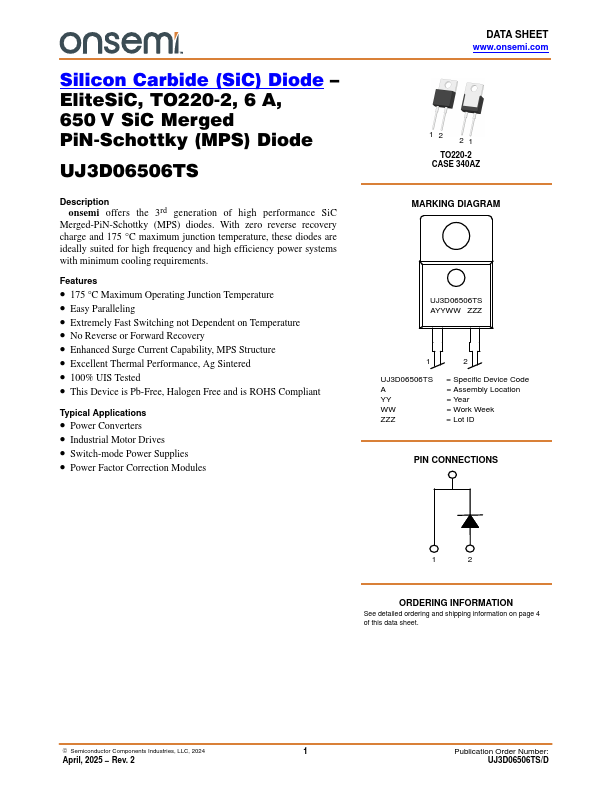

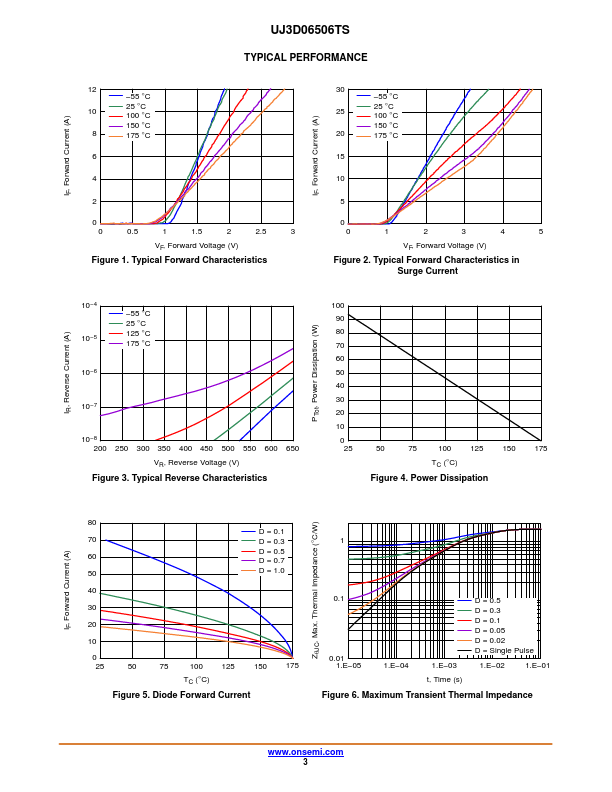

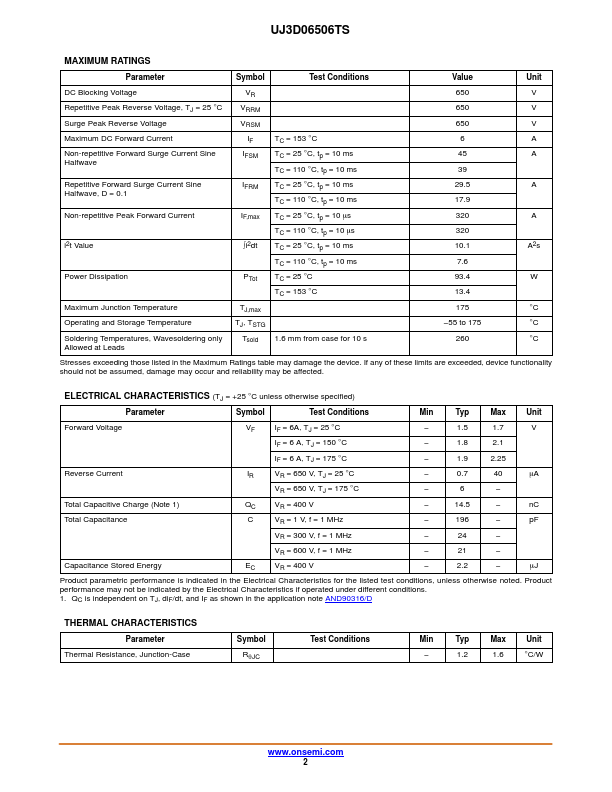

Additional preview pages of the UJ3D06506TS datasheet.

Product details

Description

Merged-PiN-Schottky (MPS) diodes.

With zero reverse recovery charge and 175 °C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling requirements.

Features

175 °C Maximum Operating Junction Temperature.
Easy Paralleling.
Extremely Fast Switching not Dependent on Temperature.
No Reverse or Forward Recovery.
Enhanced Surge Current Capability, MPS Structure.
Excellent Thermal Performance, Ag Sintered.
100% UIS Tested.
This Device is Pb-Free, Halogen Free and is ROHS Compliant Typical.
