UJ4SC075005L8S - 750V SiC JFET

General Description

The UJ4SC075005L8S is a 750 V, 5.4 mW G4 SiC FET.

on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.

Key Features

  • On-resistance RDS(on): 5.4 mW (Typ).
  • Operating Temperature: 175 °C (Max).
  • Excellent Reverse Recovery: Qrr = 440 nC.
  • Low Body Diode VFSD: 1.03 V.
  • Low Gate Charge: QG = 164 nC.
  • Threshold Voltage VG(th): 4.7 V (Typ) Allowing 0 to 15 V Drive.
  • Low Intrinsic Capacitance.
  • ESD Protected, HBM Class 2.
  • H-PDSO-F8 Package for Faster Switching, Clean Gate Waveforms.
  • This Device is Pb-Free, Halogen Free and is RoHS Comp.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UJ4SC075005L8S SiC JFET Qorvo
UJ4SC075006K4S 750V SiC FET UnitedSiC
UJ4SC075006K4S 750V SiC Cascode JFET onsemi
UJ4SC075009K4S 750V SiC FET UnitedSiC
UJ4SC075009K4S SiC Cascode JFET onsemi

Other Datasheets by onsemi

Part Number Description
UJ4SC075011K4S SiC JFET
UJ4C075023K4S SiC Cascode JFET
UJ4C075044B7S SiC Cascode JFET
UJ4N075004L8S SiC JFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

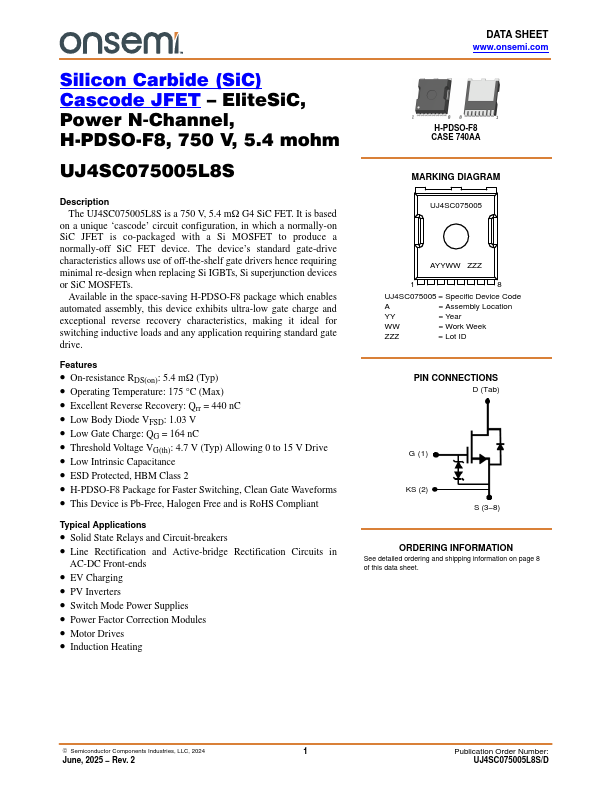

Silicon Carbide (SiC) Cascode JFET – EliteSiC, Power N-Channel, H‐PDSO‐F8, 750 V, 5.4 mohm UJ4SC075005L8S Description The UJ4SC075005L8S is a 750 V, 5.4 mW G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers hence requiring minimal re-design when replacing Si IGBTs, Si superjunction devices or SiC MOSFETs. Available in the space-saving H-PDSO-F8 package which enables automated assembly, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive loads and any application requiring standard gate drive.
