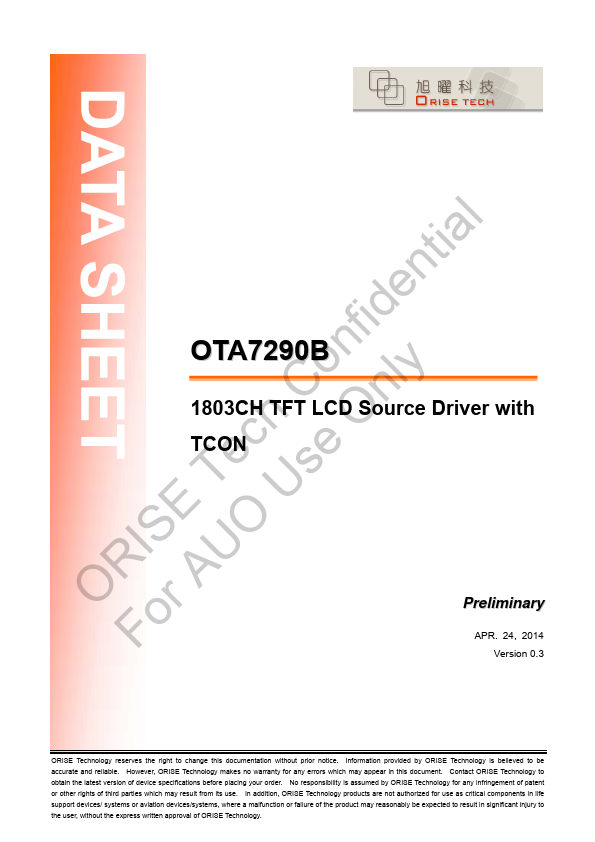

ORISE OTA7290B
OTA7290B is a highly integrated 1803 channel source driver with Special design for middle size TFT LCD Panel with MIPI MIPI interface with timing controller for medium-size color TFT-LCD panels. The OTA7290B integrated source driver, timing l controller, VCOM buffer, Gamma buffer, GIP, image process unit tia and MIPI interface into single chip. The OTA7290B supports both MIPI with multi-drop and direct mode.| Part No. | OTA7290B |
|---|---|
| Datasheet | OTA7290B Download |
| Manufacturer |  ORISE |
| Description | 1803CH TFT LCD Source Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION
2.FEATURES
OTA7290B is a highly integrated 1803 channel source driver with● Special design for middle size TFT LCD Panel with MIPI MIPI interface with timing controller for medium-size color TFT-LCD panels. Source output supports 8-bit resolution with 256 grayscale. n Operating parameters can be set via pin control for all control e features. ORFISorEATUeOchUCsoenOfidnly Special circuit architecture is designed for lower power dissipation. interface
● The chip Integrate 1803 channel source driver and timing controller
● Support panel resolution (HxV) : 1200(RGB)x1920, 600(RGB)x1024, 1080(RGB)x1920, 1200(RGB)x1600
● 8-bit resolution 256 gray-scale
● Operating frequency: MIPI: 1Gbps/Lane (Max.)
● Support 2, 3 or 4 data lanes for MIPI interface
● Power for digital circuit(VCC/VCC_IF): 1.4V ~ 1.6V
● Power for digital circuit(VDD): 2.7V ~ 3.6V
● Power for analog circuit(AVDD): 7.0 ~ 10.0V
● Support RGB independent gamma correction function
● Support CABC function
● Sup...
