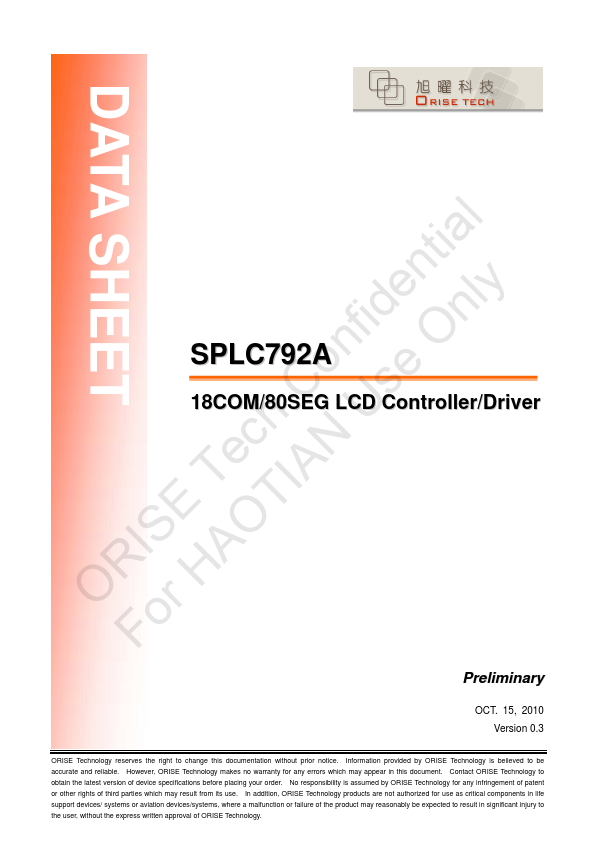

ORISE SPLC792A
The SPLC792A, a dot-matrix LCD controller and driver from Interface Mode ORISE, is a unique design for displaying alpha-numeric, ─ 4-bit or 8-bit 6800 / 8080 MPU interfaces Japanese-Kana characters and symbols. The SPLC792A provides 4-bit, 8-bit and serial interfaces mode can be easy control by microprocessor. The SPLC792A is able to display 2-line of l 16-character and 80-Icon on the display panel.| Part No. | SPLC792A |
|---|---|
| Datasheet | SPLC792A Download |
| Manufacturer |  ORISE |
| Description | 18COM/80SEG LCD Controller/Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION
● Icon RAM: 80 bits The SPLC792A, a dot-matrix LCD controller and driver from● Interface Mode ORISE, is a unique design for displaying alpha-numeric, ─ 4-bit or 8-bit 6800 / 8080 MPU interfaces Japanese-Kana characters and symbols. The CMOS tia technology ensures the power saves in the most efficient way and the performance keeps in the highest rank. n 2.
FEATURES
e ly● Operation Voltage Range ─ Power supply voltage (VDD) : 2.4 to 5.5V fid n ─ LCD driving voltage : 3.0 to 6.0V
● Display data RAM: 640 bits n O ─ 80 Character of display data
● Character generator ROM: 10240 bits o e ─ Character font 5 x 8 dots : 256 characters C s
● Character generator RAM: 320 bits ─ Character font 5 x 8 dots : 8 characters ─ 3-Wire / 4-Wire Serial interfaces ─ I2C interfaces
● LCD Display ─ 1/8 duty: 1 lines of 5 x 8 dots / line without Icon display ─ 1/9 duty: 1 lines of 5 x 8 dots / line with Icon display ─ 1/16 duty: 2 lines of 5 x 8 dots / line without Icon display ─ 1/17 duty...
