OS-1838B - INFRARED RECEIVER MODULE

Description

The OS-1838B is miniaturized infrared receivers for remote control and other applications requiring improved ambient light rejection.

The separate PIN diode and preamplifier IC are assembled on a single leadframe.

The epoxy package contains a special IR filter.

Features

  • Photo detector and preamplifier in one package.
  • Internal filter for PCM frequency.
  • Inner shield,good anti-interference ability.
  • High immunity against ambient light.
  • Improved shielding against electric field disturbance.
  • 3.0V or 5.0V supply voltage; low power consumption.
  • TTL and CMOS compatibility.
  • Suitable transmission code:NEC code,RC5 code.

📥 Download Datasheet

Datasheet preview – OS-1838B

Datasheet Details

Part number OS-1838B
Manufacturer OS-OPTO
File Size 249.27 KB
Description INFRARED RECEIVER MODULE
Datasheet download datasheet OS-1838B Datasheet

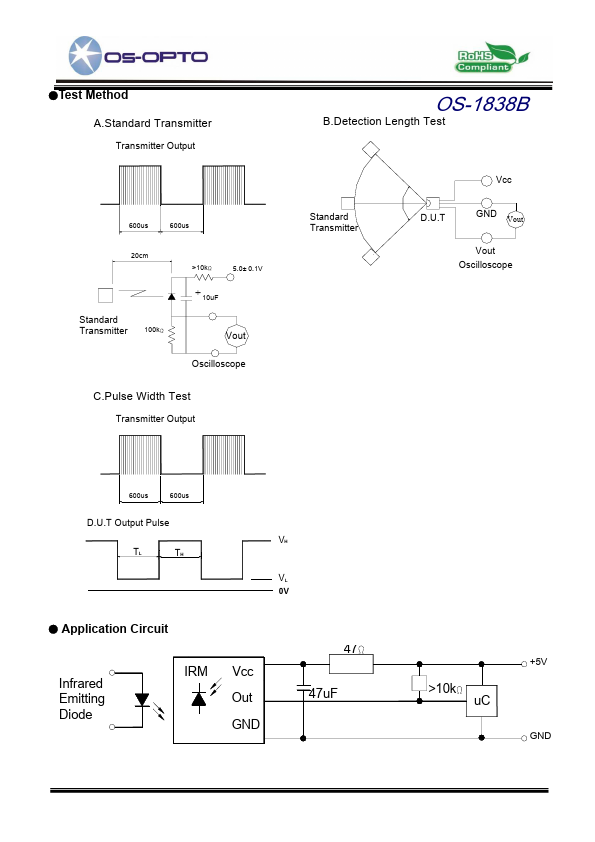

Additional preview pages of the OS-1838B datasheet.

📁 Similar Datasheet

Other Datasheets by OS-OPTO

    Full PDF Text Transcription

    Click to expand full text
    INFRARED RECEIVER MODULE Description The OS-1838B is miniaturized infrared receivers for remote control and other applications requiring improved ambient light rejection. The separate PIN diode and preamplifier IC are assembled on a single leadframe. The epoxy package contains a special IR filter. This module has excellent performance even in disturbed ambient light applications and provides protection against uncontrolled output pulses. Features • Photo detector and preamplifier in one package . • Internal filter for PCM frequency. • Inner shield,good anti-interference ability. • High immunity against ambient light. • Improved shielding against electric field disturbance • 3.0V or 5.0V supply voltage; low power consumption. • TTL and CMOS compatibility.
