LSQ976
LSQ976 is 0603 LED manufactured by ams OSRAM.

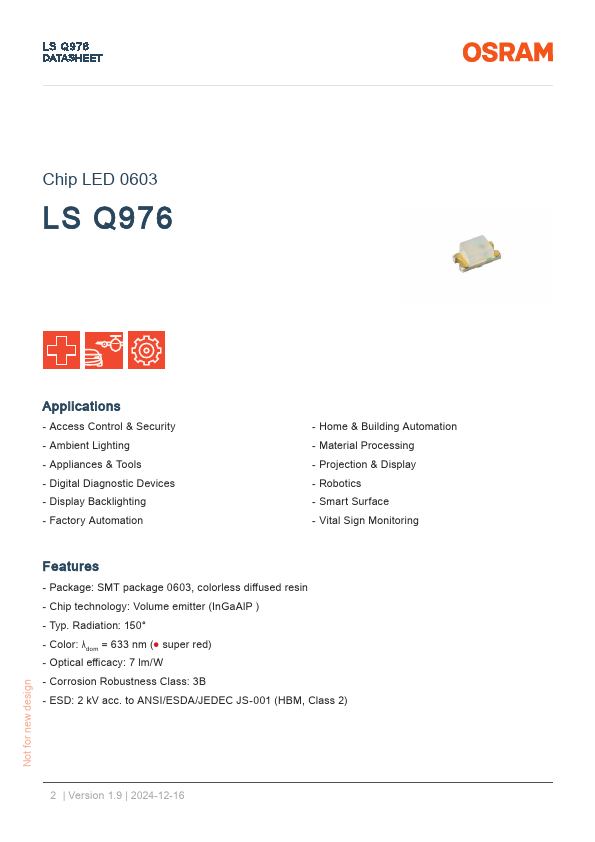

Features
- Package: SMT package 0603, colorless diffused resin
- Chip technology: Volume emitter (In Ga Al P )
- Typ. Radiation: 150°
- Color: λdom = 633 nm (- super red)
- Optical efficacy: 7 lm/W
- Corrosion Robustness Class: 3B
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
2 | Version 1.9 | 2024-12-16
Not for new design
LS Q976 DATASHEET

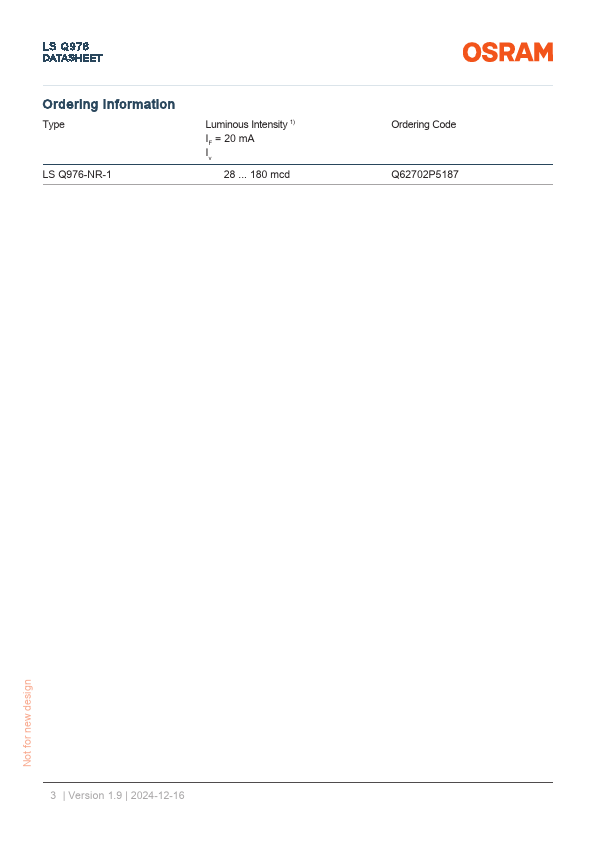

Ordering Information
Type
LS Q976-NR-1
Luminous Intensity 1) IF = 20 m A Iv
28 ... 180 mcd
Ordering Code Q62702P5187
3 | Version 1.9 | 2024-12-16
Not for new design
LS Q976 DATASHEET
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TA = 25 °C Surge Current t ≤ 10 µs; D = 0.1 ; TA = 25 °C Reverse voltage 2) TA = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. max. max. max.
Values -30 °C 85 °C -40 °C 85 °C 95 °C 25 m A
100 m A
12 V
2 k V
Not for new design
4 | Version 1.9 | 2024-12-16
LS Q976 DATASHEET
Characteristics
IF = 20 m A; TA = 25 °C Parameter
Peak Wavelength Dominant Wavelength 3)
Spectral Bandwidth at 50% Irel,max Viewing angle at 50% IV Forward Voltage 4) IF = 20 m A Reverse current 2) VR = 12 V Temperature Coefficient of Peak Wavelength Temperature Coefficient of Dominant Wavelength Temperature Coefficient of Forward Voltage Real thermal resistance junction/ambient 5)6) Real thermal resistance junction/solderpoint 5)
Symbol λpeak...
