BPW21 - Silicon Photodiode

Key Features

  • - Package: hermetically sealed - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)  - Especially suitable for.

📥 Download Datasheet

Datasheet Details

Part number BPW21
Manufacturer ams OSRAM
File Size 1.17 MB
Description Silicon Photodiode
Datasheet download datasheet BPW21 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BPW21 Silicon Photodiode Siemens Semiconductor Group
BPW21R Silicon Photodiode Vishay
BPW20R Silicon PN Photodiode Vishay Telefunken
BPW20RF Silicon Photodiode Vishay Siliconix
BPW24R Silicon PIN Photodiode Vishay Telefunken

Other Datasheets by ams OSRAM

Part Number Description
BPW34 Silicon PIN Photodiode
BPW34B Silicon PIN Photodiode
BPW34BS Silicon PIN Photodiode
BPW34F Silicon PIN Photodiode
BPW34FA Silicon PIN Photodiode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

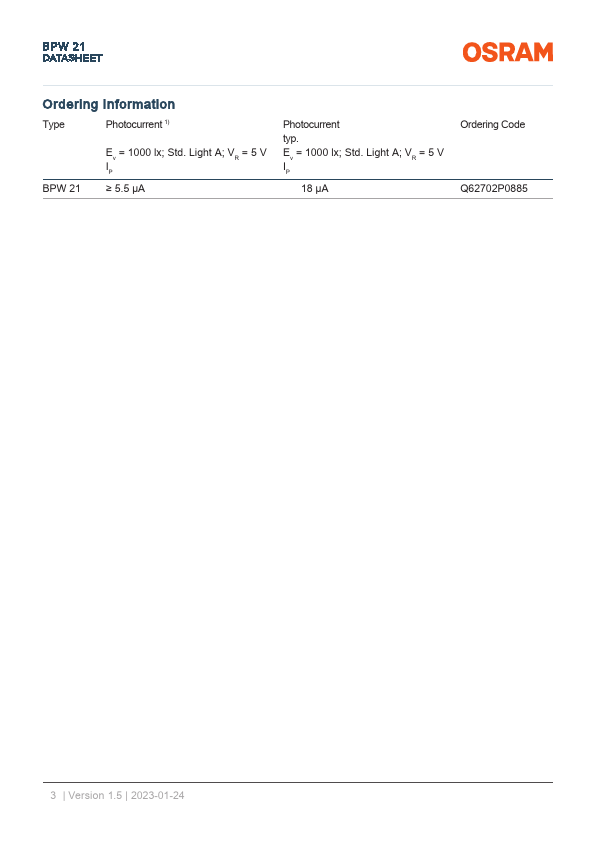

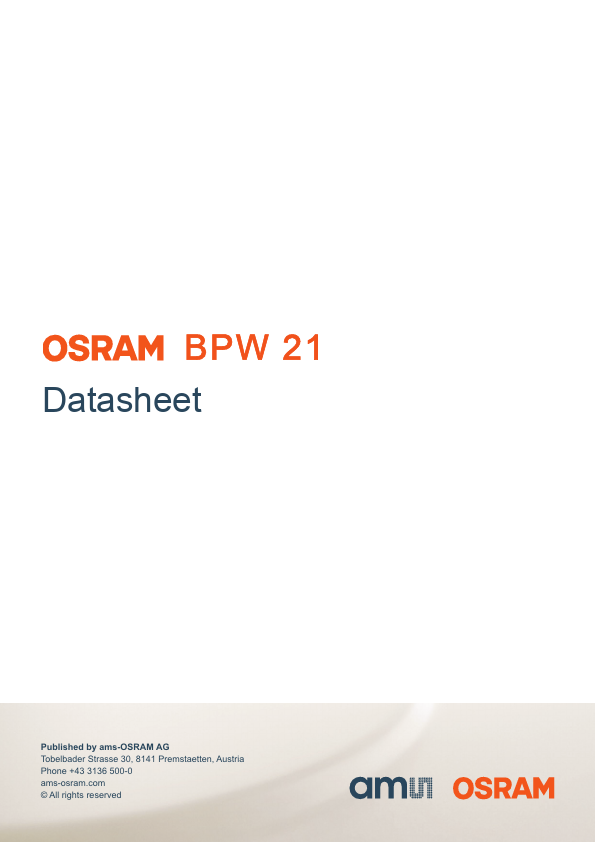

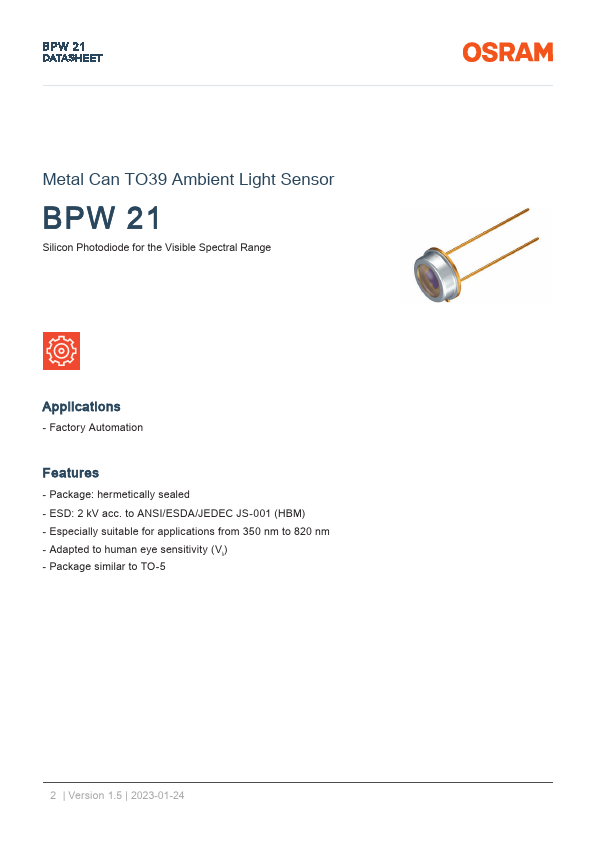

www.osram-os.com BPW 21 DATASHEET BPW 21 Datasheet  Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.5d | 2023-01-24  BPW 21 DATASHEET Metal Can TO39 Ambient Light Sensor BPW 21 Silicon Photodiode for the Visible Spectral Range Applications - Factory Automation Features - Package: hermetically sealed - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)  - Especially suitable for applications from 350 nm to 820 nm - Adapted to human eye sensitivity (Vλ) - Package similar to TO-5 2 | Version 1.5 | 2023-01-24  BPW 21 DATASHEET Ordering Information  Type Photocurrent 1) BPW 21 Ev = 1000 lx; Std. Light A; VR = 5 V IP ≥ 5.5 µA Photocurrent  typ. Ev = 1000 lx; Std.
