BPW34FASR - Silicon PIN Photodiode

Key Features

  • Package: black epoxy.
  • Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.
  • ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2).
  • Especially suitable for.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BPW34FAS Silicon PIN Photodiode Siemens Semiconductor Group
BPW34FA Silicon PIN Photodiode Siemens Semiconductor Group
BPW34F Silicon PIN Photodiode Siemens Semiconductor Group
BPW34FS Silicon PIN Photodiode Siemens Semiconductor Group
BPW34 Silicon PIN Photodiode Siemens Semiconductor Group

Other Datasheets by ams OSRAM

Part Number Description
BPW34FAS Silicon PIN Photodiode
BPW34FA Silicon PIN Photodiode
BPW34F Silicon PIN Photodiode
BPW34FS Silicon PIN Photodiode
BPW34FSR Silicon PIN Photodiode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

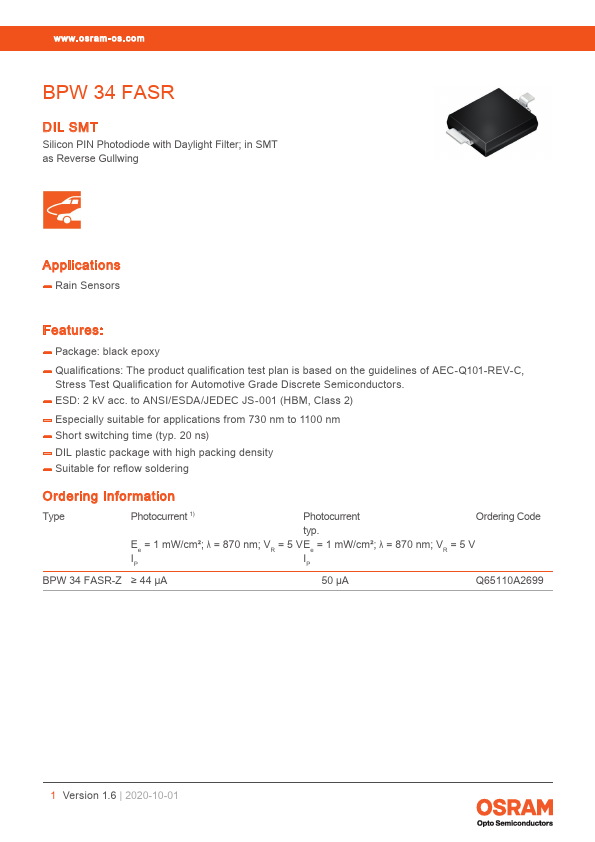

Prowdwuwk.todsartaemn-bolast.tco|mVersion 1.1 BPW 34 FASR   BPW 34 FASR DIL SMT Silicon PIN Photodiode with Daylight Filter; in SMT as Reverse Gullwing Applications ——Rain Sensors Features: ——Package: black epoxy ——Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors. ——ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) ——Especially suitable for applications from 730 nm to 1100 nm ——Short switching time (typ. 20 ns) ——DIL plastic package with high packing density ——Suitable for reflow soldering Ordering Information  Type  Photocurrent 1) Photocurrent  Ordering Code typ.
