CTELLN51.14

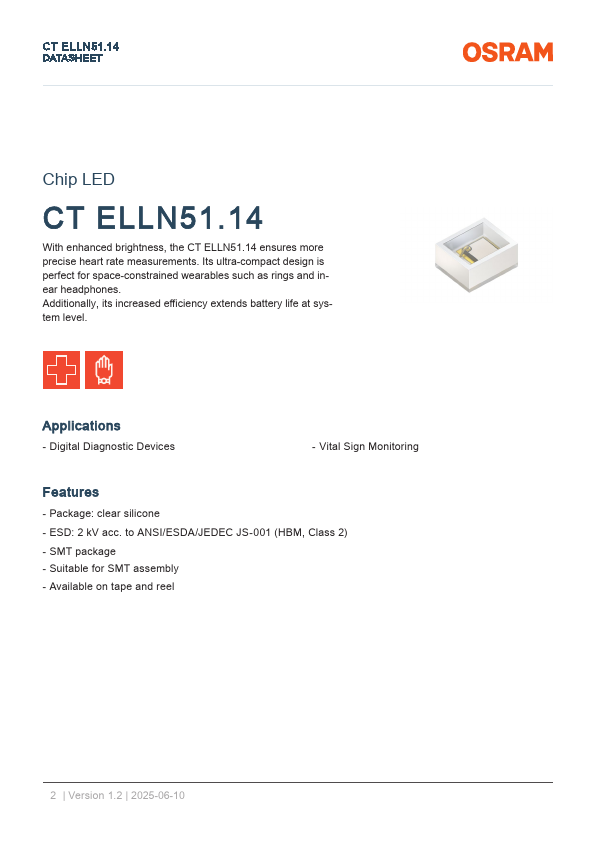

Features
- Package: clear silicone
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- SMT package
- Suitable for SMT assembly
- Available on tape and reel
2 | Version 1.2 | 2025-06-10
CT ELLN51.14 DATASHEET

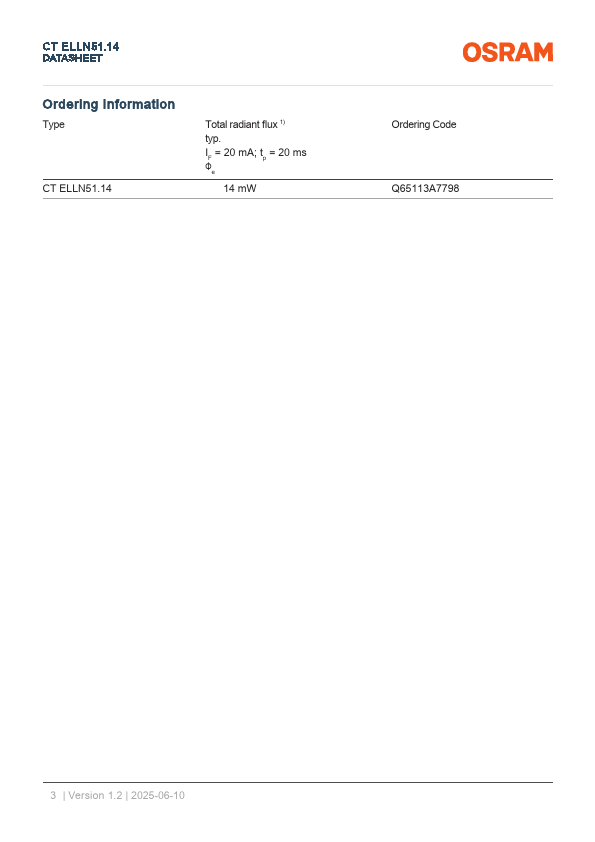

Ordering Information
Type
CT ELLN51.14
Total radiant flux 1) typ. IF = 20 m A; tp = 20 ms Φe
14 m W
Ordering Code Q65113A7798
3 | Version 1.2 | 2025-06-10
CT ELLN51.14 DATASHEET
Maximum Ratings
TS = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current Forward current pulsed tp ≤ 50 µs; D ≤ 0.005 Reverse voltage 2) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top
Tstg
Tj IF IF pulse
VR Ptot VESD min. max. min. max. max. max. max. max. max. max.
Values
-40 °C 85 °C -40 °C 85 °C 100 °C 30 m A 0.75 A
5V 90 m W
2 k V
4 | Version 1.2 | 2025-06-10
CT ELLN51.14 DATASHEET
Characteristics
IF = 20 m A; tp = 20 ms; TS = 25 °C Parameter Peak wavelength Centroid...
