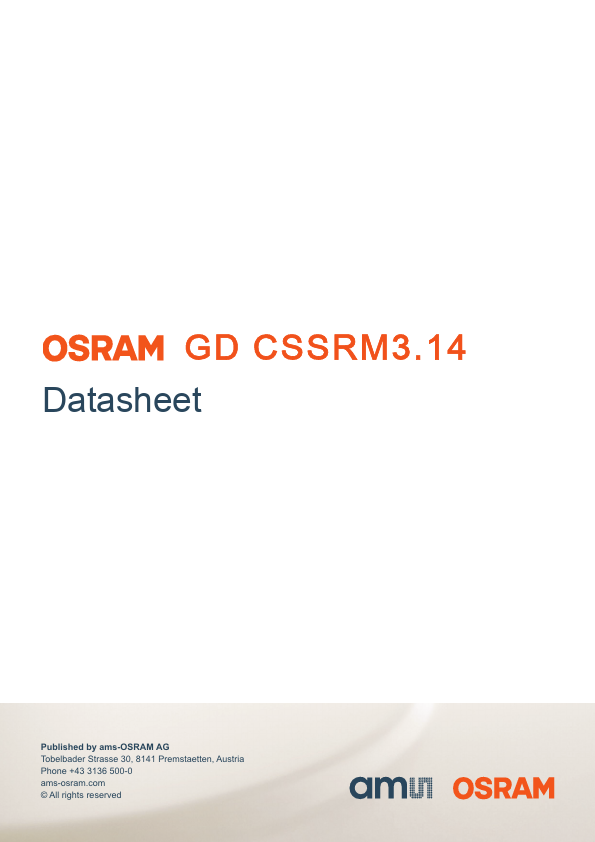

OSRAM GDCSSRM3.14
Deep Blue LED
| Part No. | GDCSSRM3.14 |
|---|---|
| Datasheet | GDCSSRM3.14 Download |
| Manufacturer |  OSRAM |
| Description | Deep Blue LED |
| Buy | Stock & Price |

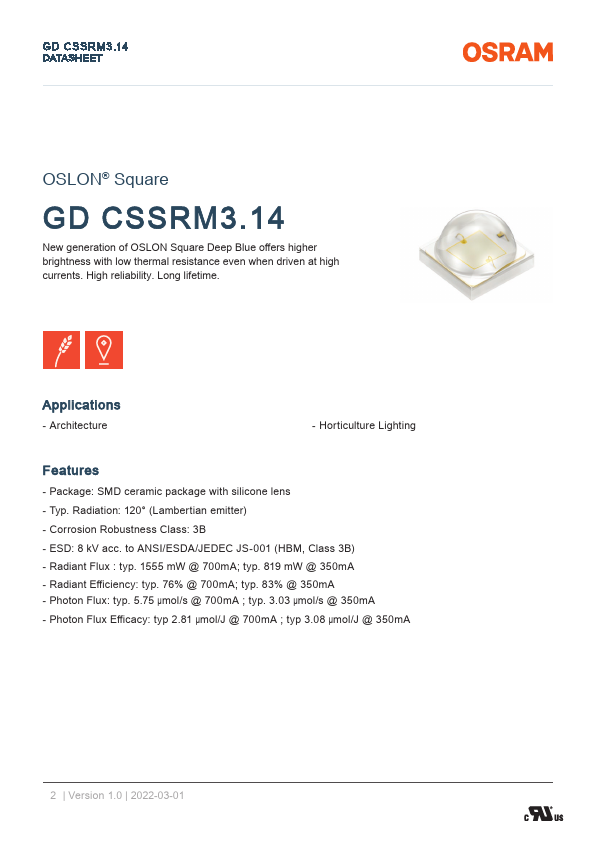

APPLICATIONS
- Architecture - Horticulture LightingFEATURES
- Package: SMD ceramic package with silicone lens - Typ. Radiation: 120° (Lambertian emitter) - Corrosion Robustness Class: 3B - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) - Radiant Flux : typ. 1555 mW @ 700mA; typ. 819 mW @ 350mA - Radiant Efficiency: typ. 76% @ 700mA; typ. 83% @ 350mA - Photon Flux: typ. 5.75 μmol/s @ 700mA ; typ. 3.03 μmol/s @ 350mA - Photon Flux Efficacy: typ 2.81 μmol/J @ 700mA ; typ 3.08 μmol/J @ 350mA 2 | Version 1.0 | 2022-03-01 <img <img <img GD CSSRM3.14 DATASHEET Ordering Information Type GD CSSRM3.14-AHAM-24-1 GD CSSRM3.14-AJAM-24-1 Total radiant flux 1) IF = 700 mA ΦE 1450 ... 1800 mW 1500 ... 1800 mW Ordering Code Q65113A4394 Q65113A4447 3 | Version 1.0 | 2022-03-01 GD CSSRM3.14 DATASHEETMAXIMUM RATINGS
Parameter Operating Temperature Storage Temperature Junction Temperature Forward current Surge Current t ≤ 10 µs; D = 0.005 %; TJ = 25 °C Reverse voltage 2) ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max.
