GFPUSRA1.25 - High-power LED

Features

  • - Package: SMD epoxy package with silicone lens - Typ. Radiation: 120° - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) - Radiant Flux (@ 700mA): typ. 901 mW @ 25°C; typ. 834 mW @ 85°C - Radiant Efficiency (@ 700mA): typ. 64.1% @ 25°C; typ. 61.1% @ 85°C - Photon Flux (@ 700mA): typ. 5.44 μmol/s @ 25°C; typ. 5.10 μmol/s @ 85°C - Photon Flux Efficacy (@ 700mA): typ. 3.87 μmol/J @ 25°C; typ. 3.73 μmol/J @ 85°C - ThinFilm LED chip designed and manufactured in Germany 2 | Version 1.3 | 202.

📥 Download Datasheet

📁 Similar Datasheet

  • GFP201 - Cermet Industrial Panel Controls (TOCOS)
  • GFP4N60 - N-channel enhancement mode power field effect Transistors (Chinahaiso electronic)
  • GFP50N03 - N-Channel Enhancement-Mode MOSFET (General Semiconductor)
  • GFP50N06 - MOSFET (Chinahaiso electronic)
  • GFP5N60 - N-Channel enhancement mode power field effect Transistors (ETC)
  • GFP5N60 - Field effect transistor (Haiso)
  • GFP60N03 - N-Channel Enhancement-Mode MOSFET (General Semiconductor)
  • GFP70N03 - N-Channel Enhancement-Mode MOSFET (General Semiconductor)
  • GFP740 - MOSFET (Chinahaiso)
  • GFP8N60 - N-Channel enhancement mode power field effect Transistors (ETC)
Other Datasheets by OSRAM

    Full PDF Text Transcription

    Click to expand full text

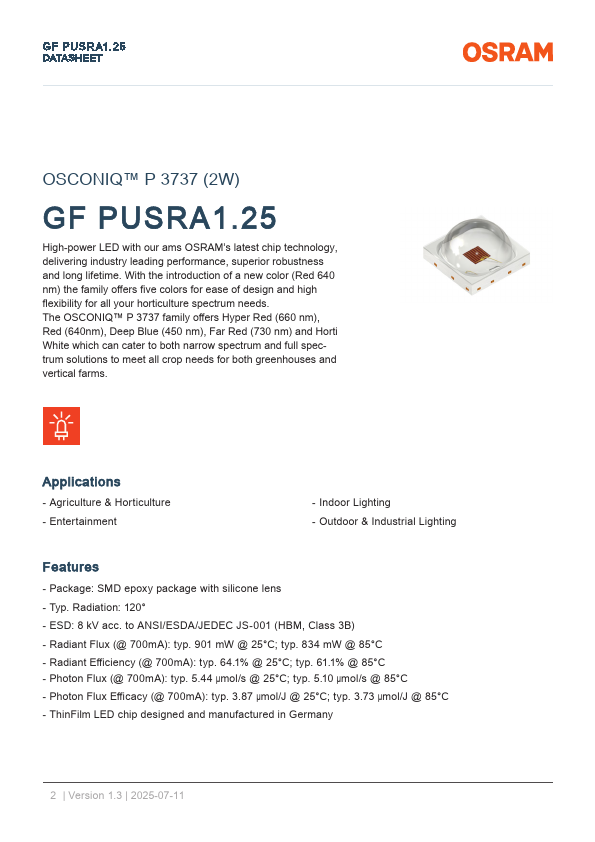

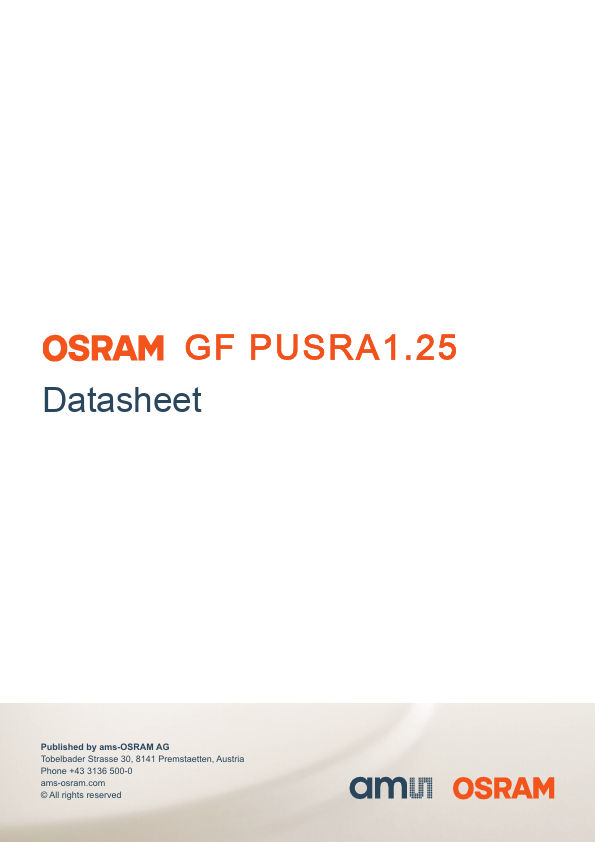

    www.osram-os.com GF PUSR A1. 25 DATASHEET GF PUSRA1.25 Datasheet  Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.3d | 2025-07-11  GF PUSR A1. 25 DATASHEET OSCONIQ™ P 3737 (2W) GF PUSRA1.25 High-power LED with our ams OSRAM’s latest chip technology, delivering industry leading performance, superior robustness and long lifetime. With the introduction of a new color (Red 640 nm) the family offers five colors for ease of design and high flexibility for all your horticulture spectrum needs.
