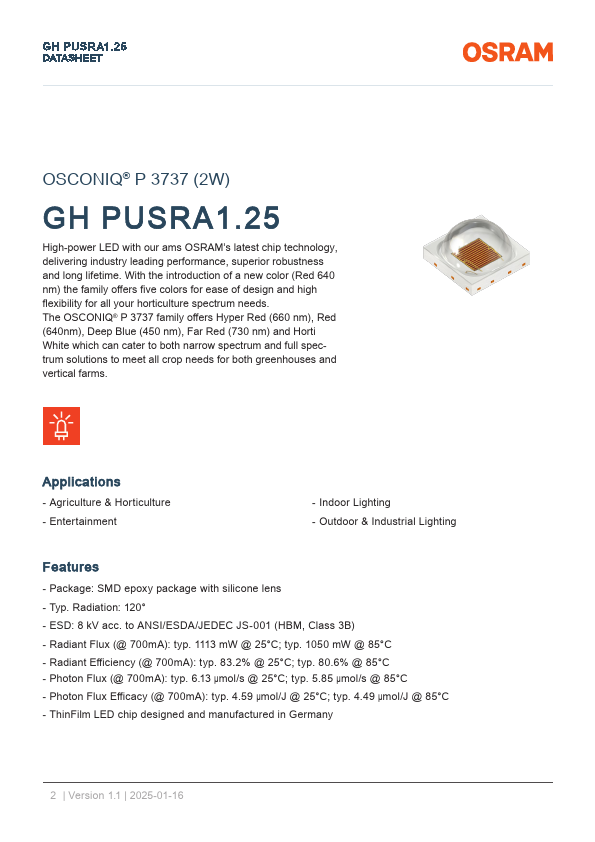

GH-PUSRA1.25
GH-PUSRA1.25 is High-power LED manufactured by ams OSRAM.
Features
- Package: SMD epoxy package with silicone lens
- Typ. Radiation: 120°
- ESD: 8 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Radiant Flux (@ 700m A): typ. 1113 m W @ 25°C; typ. 1050 m W @ 85°C
- Radiant Efficiency (@ 700m A): typ. 83.2% @ 25°C; typ. 80.6% @ 85°C
- Photon Flux (@ 700m A): typ. 6.13 μmol/s @ 25°C; typ. 5.85 μmol/s @ 85°C
- Photon Flux Efficacy (@ 700m A): typ. 4.59 μmol/J @ 25°C; typ. 4.49 μmol/J @ 85°C
- Thin Film LED chip designed and manufactured in Germany
2 | Version 1.1 | 2025-01-16
GH PUSR A1. 25 DATASHEET
Ordering Information
Type
GH PUSRA1.25-SMSP-1-1
Photon Flux 1) IF = 700 m A ΦP
5 6.25 μmol/s
Ordering Code Q65113A7879
3 | Version 1.1 | 2025-01-16
GH PUSR A1. 25 DATASHEET

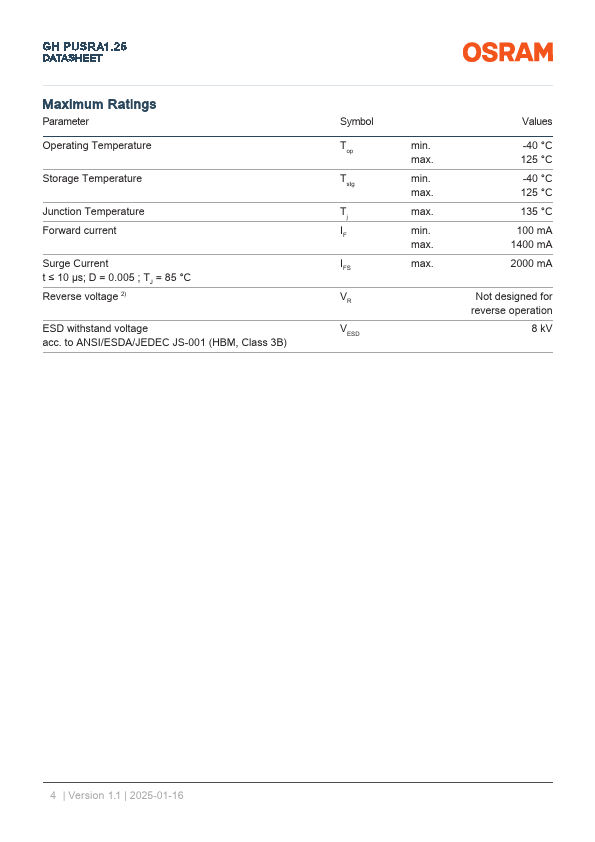

Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature Forward current
Surge Current t ≤ 10 µs; D = 0.005 ; TJ = 85 °C Reverse voltage 2)
ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 135 °C 100 m A 1400 m A 2000 m A
Not designed for reverse operation
8 k V
4 | Version 1.1 | 2025-01-16
GH PUSR A1. 25 DATASHEET
Characteristics
IF = 700 m A; TJ = 85 °C Parameter Peak Wavelength Centroid Wavelength 3) IF = 700 m A
Spectral Bandwidth at 50% Irel,max Viewing angle at 50% IV Forward Voltage 4) IF = 700 m...
