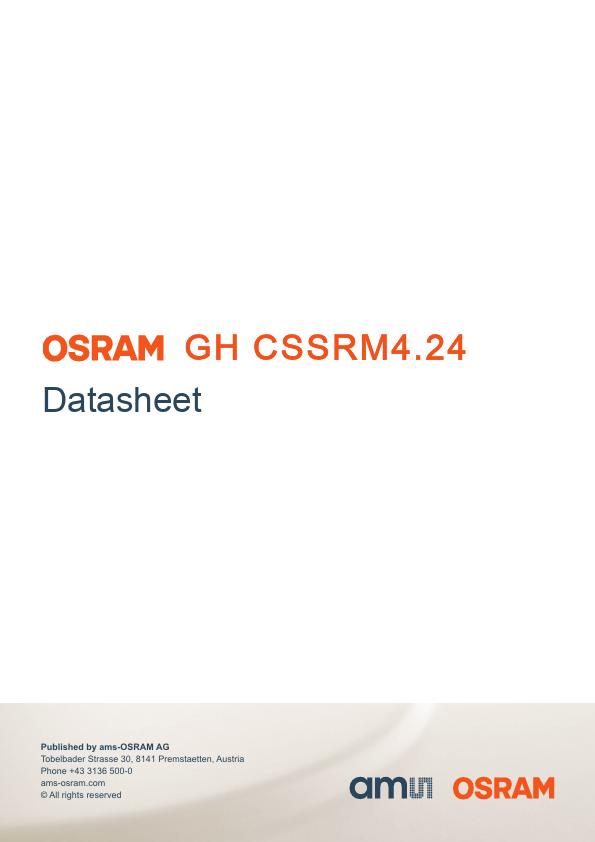

OSRAM GHCSSRM4.24
Square Hyper Red
| Part No. | GHCSSRM4.24 |
|---|---|
| Datasheet | GHCSSRM4.24 Download |
| Manufacturer |  OSRAM |
| Description | Square Hyper Red |
| Buy | Stock & Price |

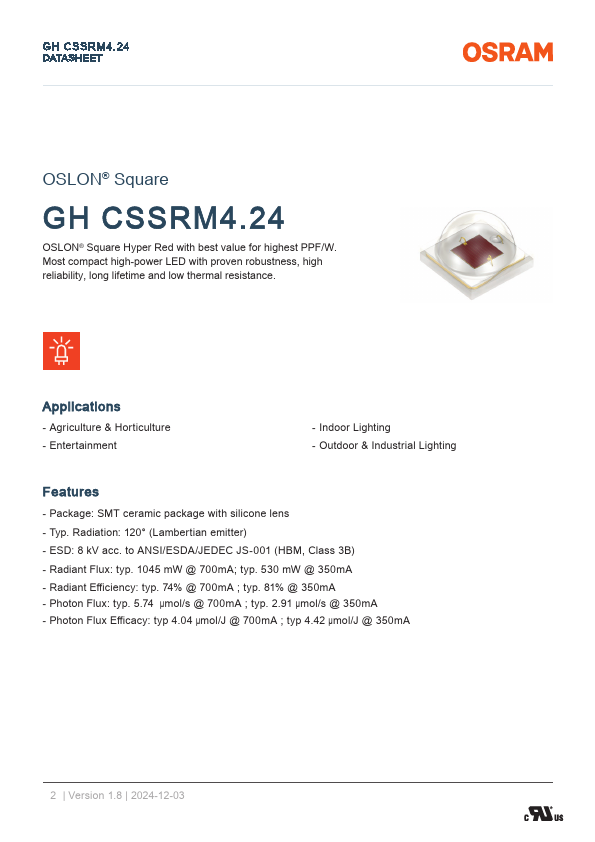

APPLICATIONS
- Agriculture & Horticulture - Entertainment - Indoor Lighting - Outdoor & Industrial LightingFEATURES

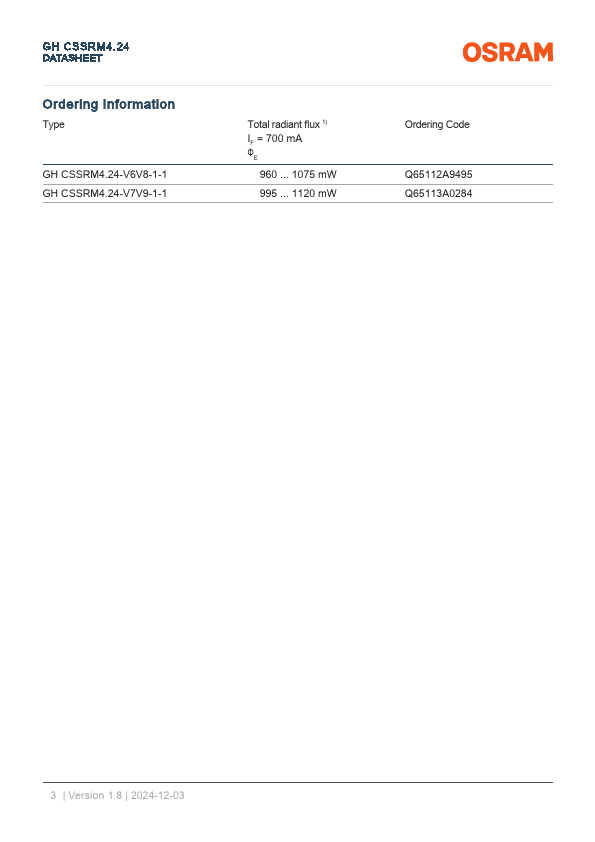

- Package: SMT ceramic package with silicone lens - Typ. Radiation: 120° (Lambertian emitter) - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) - Radiant Flux: typ. 1045 mW @ 700mA; typ. 530 mW @ 350mA - Radiant Efficiency: typ. 74% @ 700mA ; typ. 81% @ 350mA - Photon Flux: typ. 5.74 μmol/s @ 700mA ; typ. 2.91 μmol/s @ 350mA - Photon Flux Efficacy: typ 4.04 μmol/J @ 700mA ; typ 4.42 μmol/J @ 350mA 2 | Version 1.8 | 2024-12-03 GH CSSRM4.24 DATASHEET Ordering Information Type GH CSSRM4.24-V6V8-1-1 GH CSSRM4.24-V7V9-1-1 Total radiant flux 1) IF = 700 mA ΦE 960 ... 1075 mW 995 ... 1120 mW Ordering Code Q65112A9495 Q65113A0284 3 | Version 1.8 | 2024-12-03 GH CSSRM4.24 DATASHEETMAXIMUM RATINGS
Parameter Operating Temperature Storage Temperature Junction Temperature Forward current Surge Current t ≤ 10 µs; D = 0.005 ; TJ = 25 °C Reverse voltage 2) ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max.
