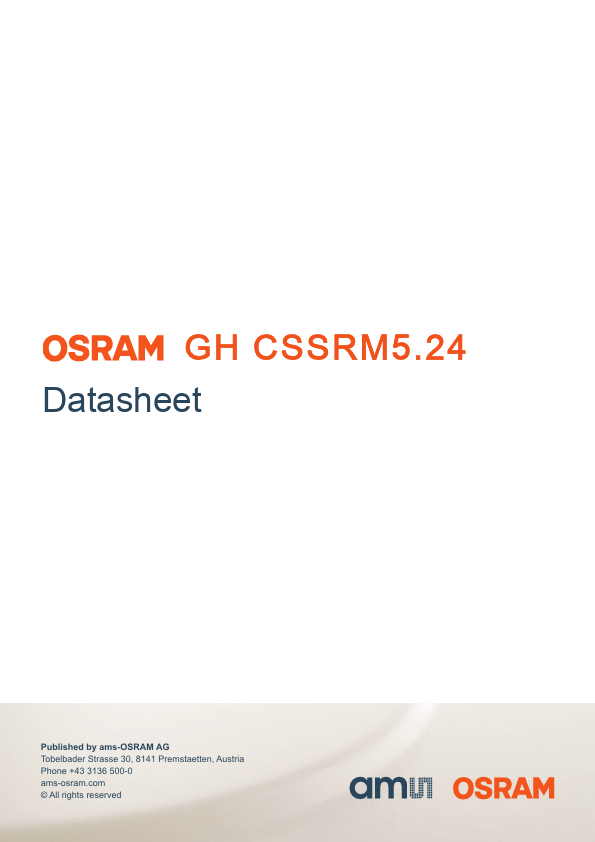

OSRAM GHCSSRM5.24
high-power LED
| Part No. | GHCSSRM5.24 |
|---|---|
| Datasheet | GHCSSRM5.24 Download |
| Manufacturer |  OSRAM |
| Description | high-power LED |
| Buy | Stock & Price |

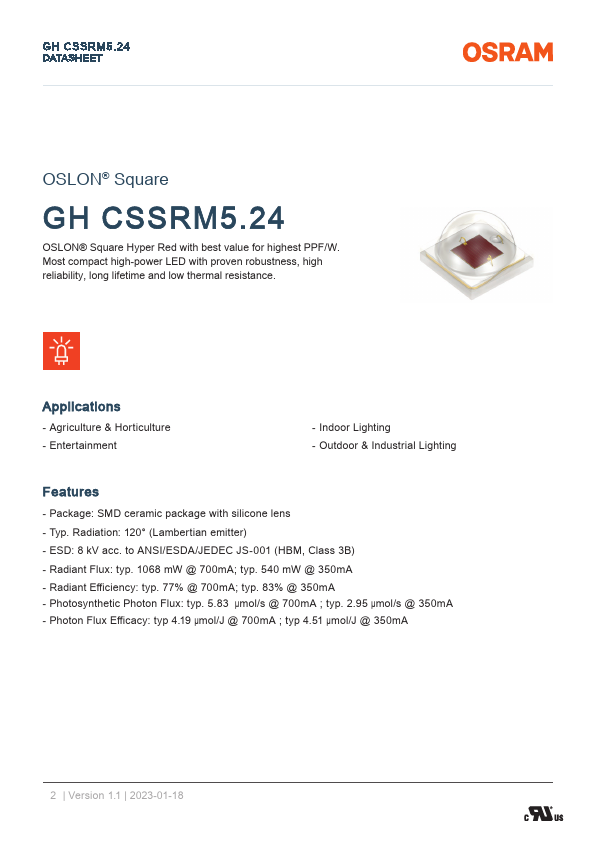

APPLICATIONS
- Agriculture & Horticulture - Entertainment - Indoor Lighting - Outdoor & Industrial LightingFEATURES
- Package: SMD ceramic package with silicone lens - Typ. Radiation: 120° (Lambertian emitter) - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) - Radiant Flux: typ. 1068 mW @ 700mA; typ. 540 mW @ 350mA - Radiant Efficiency: typ. 77% @ 700mA; typ. 83% @ 350mA - Photosynthetic Photon Flux: typ. 5.83 μmol/s @ 700mA ; typ. 2.95 μmol/s @ 350mA - Photon Flux Efficacy: typ 4.19 μmol/J @ 700mA ; typ 4.51 μmol/J @ 350mA 2 | Version 1.1 | 2023-01-18 GH CSSRM5.24 DATASHEET Ordering Information Type GH CSSRM5.24-V7A2-1-1 GH CSSRM5.24-V8A2-1-1 Total radiant flux 1) IF = 700 mA ΦE 995 ... 1165 mW 1035 ... 1165 mW Ordering Code Q65113A3948 Q65113A4032 3 | Version 1.1 | 2023-01-18 GH CSSRM5.24 DATASHEETMAXIMUM RATINGS
Parameter Operating Temperature Storage Temperature Junction Temperature Forward current Surge Current t ≤ 10 µs; D = 0.005 ; TJ = 25 °C Reverse voltage 2) ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max.
