GRVJLPL1.23

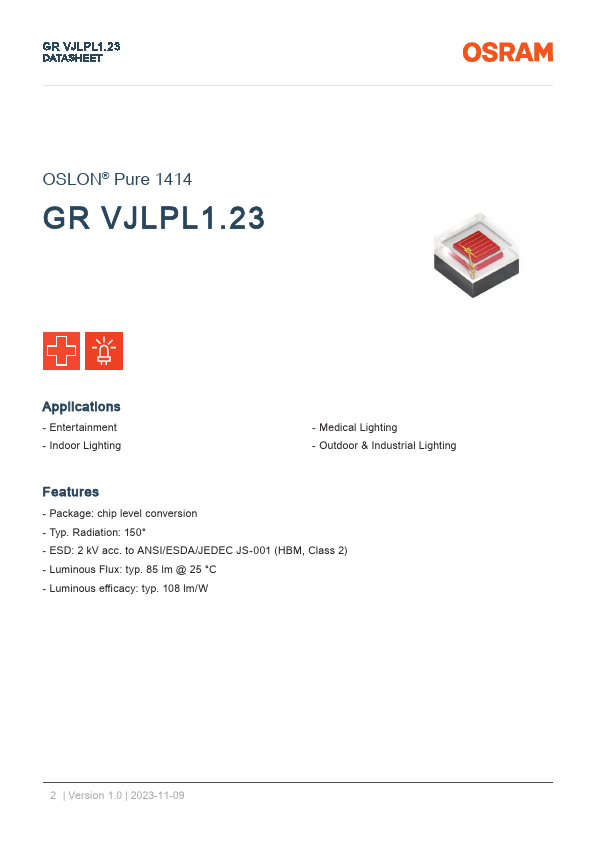

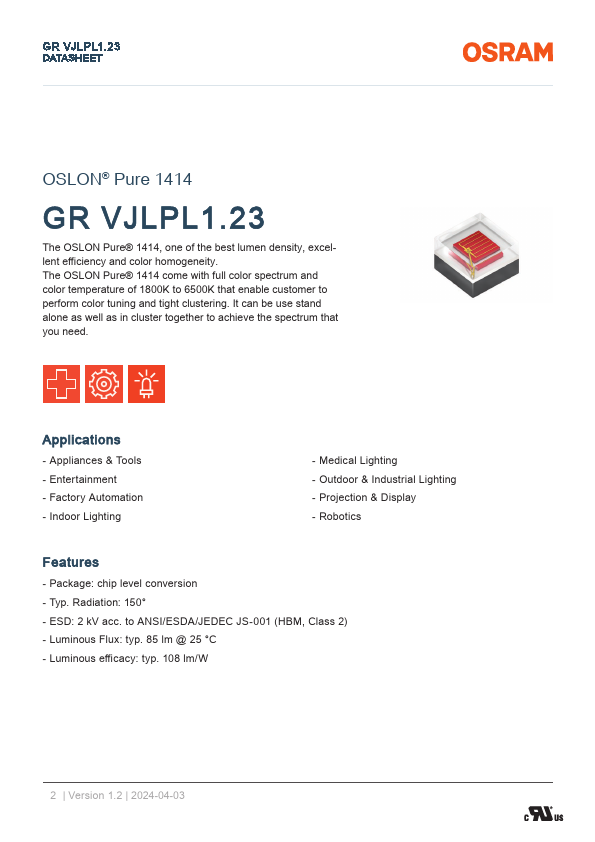

Features
- Package: chip level conversion
- Typ. Radiation: 150°
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Luminous Flux: typ. 85 lm @ 25 °C
- Luminous efficacy: typ. 108 lm/W
2 | Version 1.0 | 2023-11-09
GR VJLPL1. 23 DATASHEET

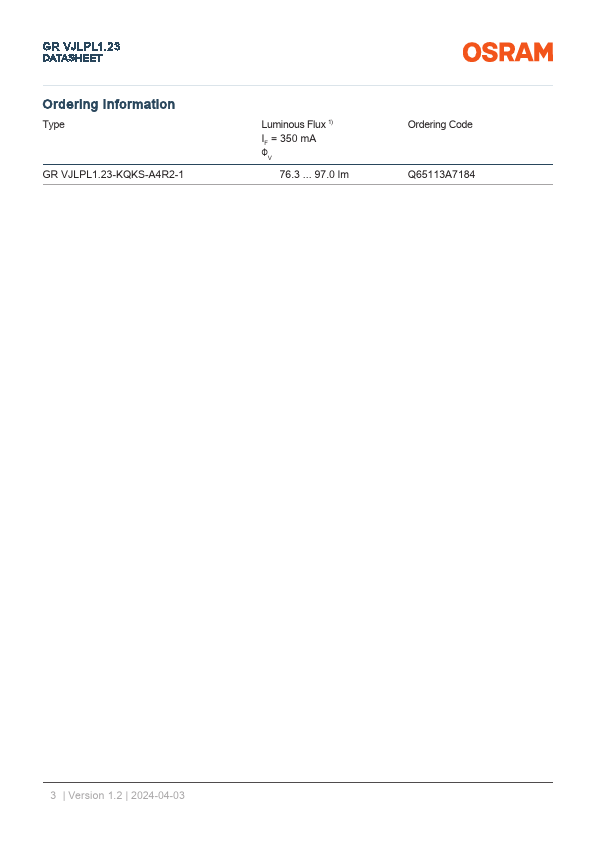

Ordering Information
Type
GR VJLPL1.23-KQKS-A4R2-1
Luminous Flux 1) IF = 350 m A ΦV
76 97.0 lm
Ordering Code Q65113A7184
3 | Version 1.0 | 2023-11-09
GR VJLPL1. 23 DATASHEET

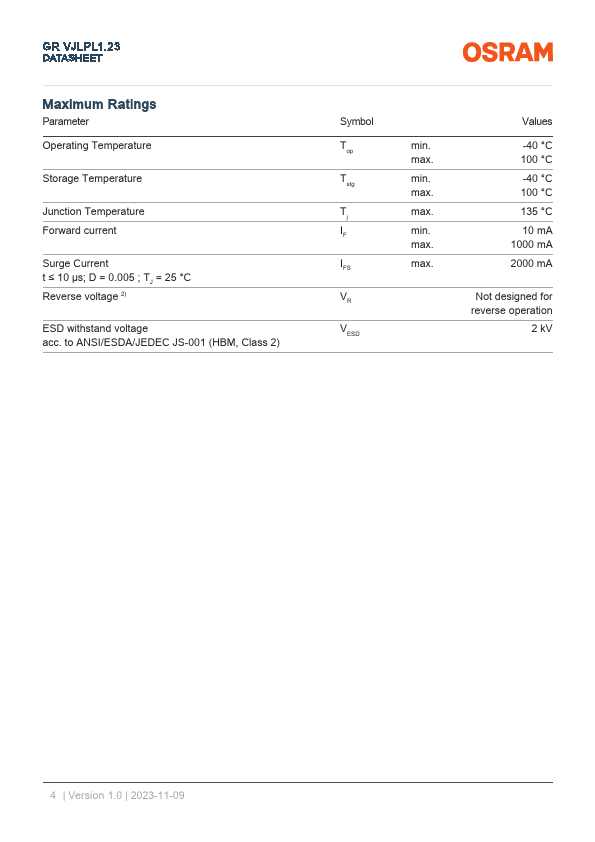

Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature Forward current
Surge Current t ≤ 10 µs; D = 0.005 ; TJ = 25 °C Reverse voltage 2)
ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max.
Values
-40 °C 100 °C -40 °C 100 °C 135 °C 10 m A 1000 m A 2000 m A
Not designed for reverse operation
2 k V
4 | Version 1.0 | 2023-11-09
GR VJLPL1. 23 DATASHEET
Characteristics
IF = 350 m A; TJ = 25 °C Parameter Dominant...
