GWVJLPL1.CM

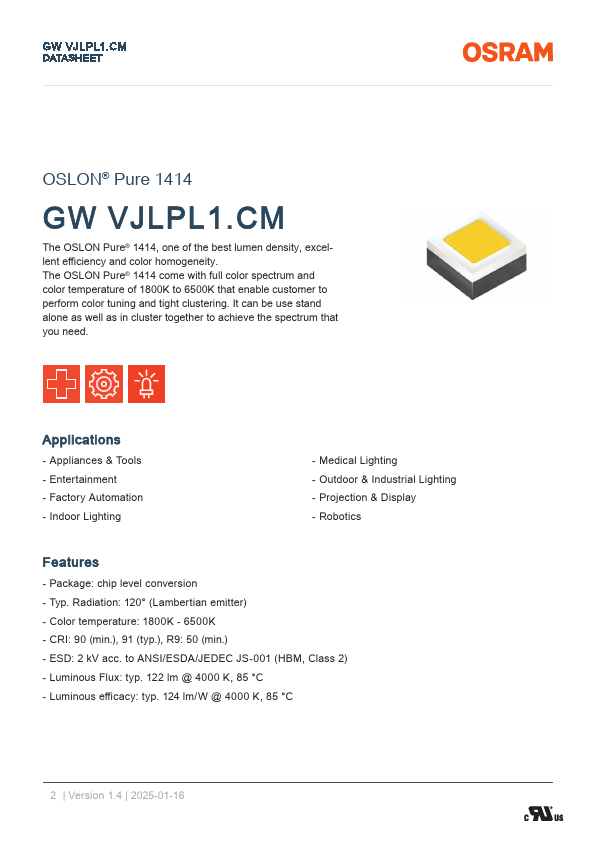

Features
- Package: chip level conversion
- Typ. Radiation: 120° (Lambertian emitter)
- Color temperature: 1800K
- 6500K
- CRI: 90 (min.), 91 (typ.), R9: 50 (min.)
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Luminous Flux: typ. 122 lm @ 4000 K, 85 °C
- Luminous efficacy: typ. 124 lm/W @ 4000 K, 85 °C
2 | Version 1.4 | 2025-01-16
GW VJLPL1.CM DATASHEET

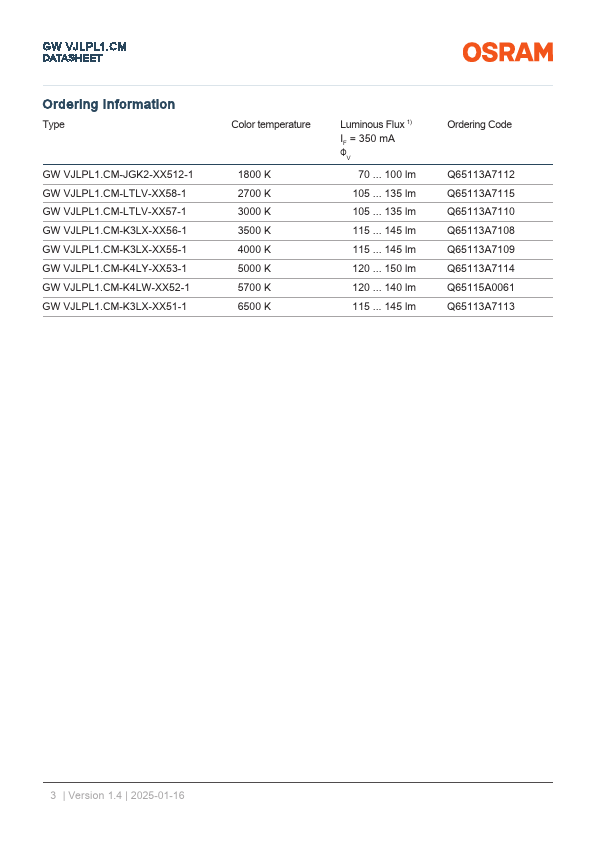

Ordering Information
Type
GW VJLPL1.CM-JGK2-XX512-1 GW VJLPL1.CM-LTLV-XX58-1 GW VJLPL1.CM-LTLV-XX57-1 GW VJLPL1.CM-K3LX-XX56-1 GW VJLPL1.CM-K3LX-XX55-1 GW VJLPL1.CM-K4LY-XX53-1 GW VJLPL1.CM-K4LW-XX52-1 GW VJLPL1.CM-K3LX-XX51-1
Color temperature
1800 K 2700 K 3000 K 3500 K 4000 K 5000 K 5700 K 6500 K
Luminous Flux 1) IF = 350 m A ΦV
70 ... 100 lm 105 ... 135 lm 105 ... 135 lm 115 ... 145 lm 115 ... 145 lm 120 ... 150 lm 120 ... 140 lm 115 ... 145 lm
Ordering Code
Q65113A7112 Q65113A7115 Q65113A7110 Q65113A7108 Q65113A7109 Q65113A7114 Q65115A0061 Q65113A7113
3 | Version 1.4 | 2025-01-16
