OSRAM KRTBDWLM31.32
LED
- Max Operating Temp : 110°C
- Min Operating Temp : -40°C
Source:
Octopart
| Part No. | KRTBDWLM31.32 |
|---|---|
| Datasheet | KRTBDWLM31.32 Download |
| Manufacturer |  OSRAM |
| Description | LED |
| Buy | Stock & Price |

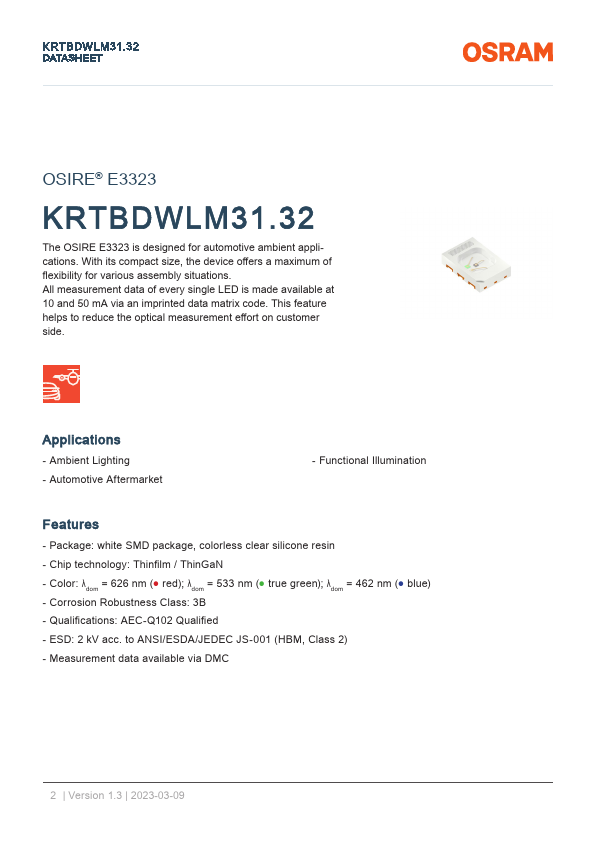

APPLICATIONS
- Ambient Lighting - Automotive Aftermarket - Functional Illumination FEATURES
- Package: white SMD package, colorless clear silicone resin - Chip technology: Thinfilm / ThinGaN - Color: λdom = 626 nm (● red); λdom = 533 nm (● true green); λdom = 462 nm (● blue) - Corrosion Robustness Class: 3B - Qualifications: AEC-Q102 Qualified - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - Measurement data available via DMC 2 | Version 1.3 | 2023-03-09 KRTBDWLM31.32 DATASHEETFEATURES

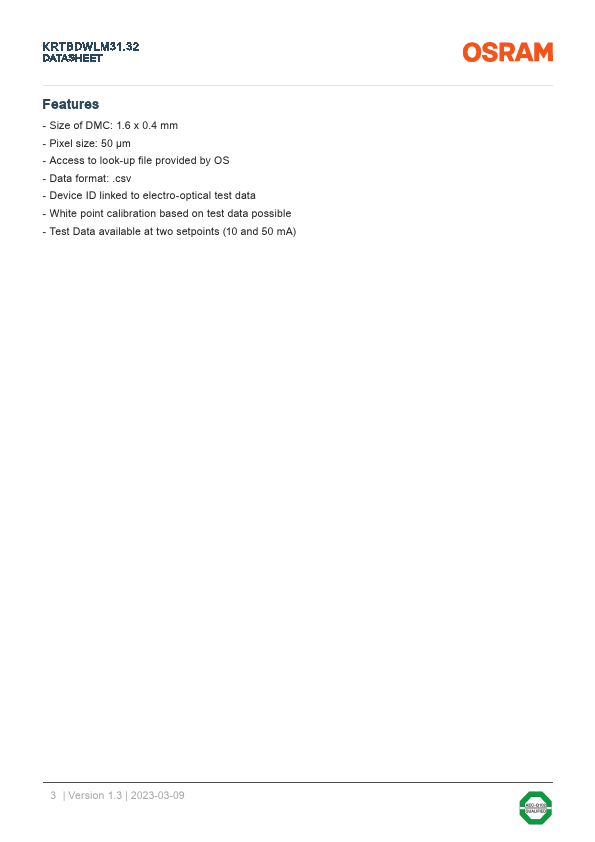

- Size of DMC: 1.6 x 0.4 mm - Pixel size: 50 µm - Access to look-up file provided by OS - Data format: .csv - Device ID linked to electro-optical test data - White point calibration based on test data possible - Test Data available at two setpoints (10 and 50 mA) 3 | Version 1.3 | 2023-03-09 KRTBDWLM31.32 DATASHEET Ordering Information Type Parameter KRTBDWLM31.32-2T1V-JW+5A8A-J3+2R1T-5V red true green blue Brightness IF = 10 mA IV = 315 … 800 mcd IV = 1120 … 1800 mcd IV = 125 … 315 m...
