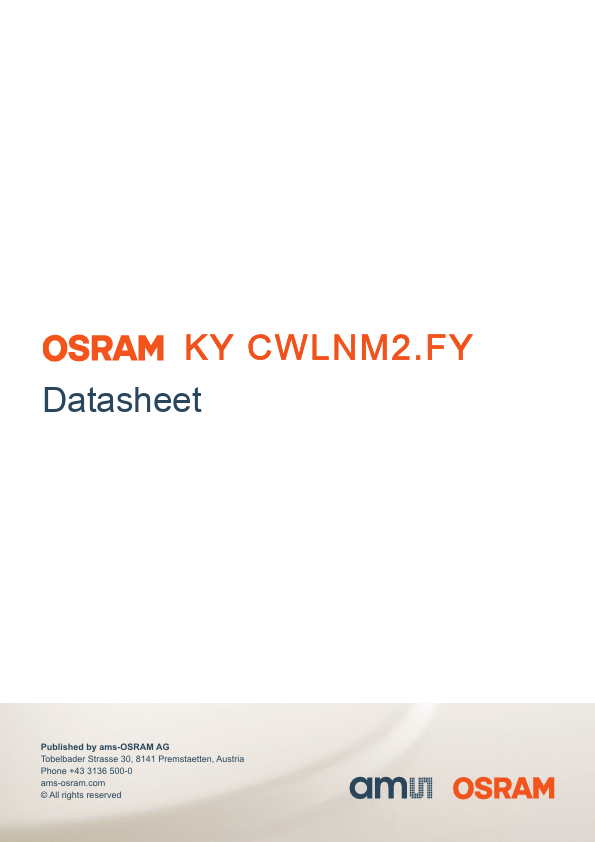

KY-CWLNM2.FY

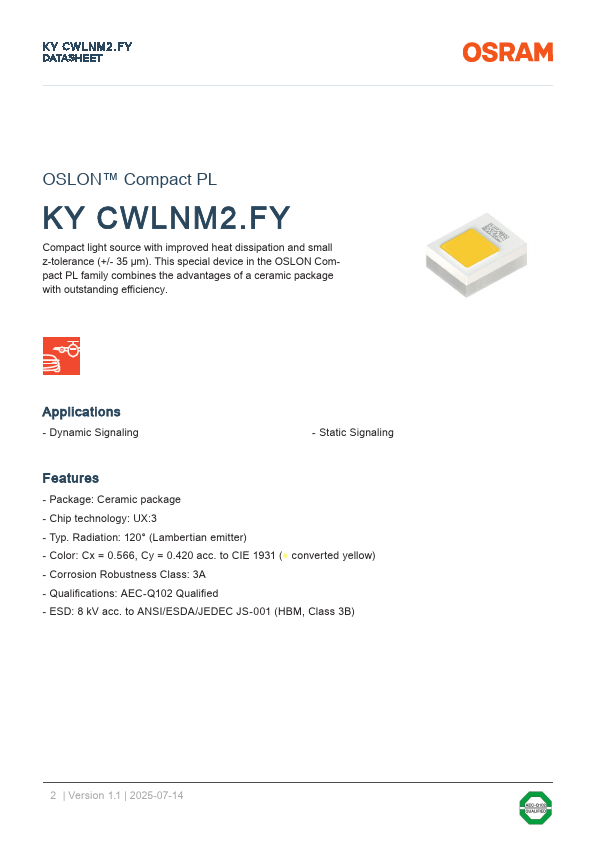

Features
- Package: Ceramic package
- Chip technology: UX:3
- Typ. Radiation: 120° (Lambertian emitter)
- Color: Cx = 0.566, Cy = 0.420 acc. to CIE 1931 (- converted yellow)
- Corrosion Robustness Class: 3A
- Qualifications: AEC-Q102 Qualified
- ESD: 8 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
2 | Version 1.1 | 2025-07-14
KY CWLNM2.FY DATASHEET

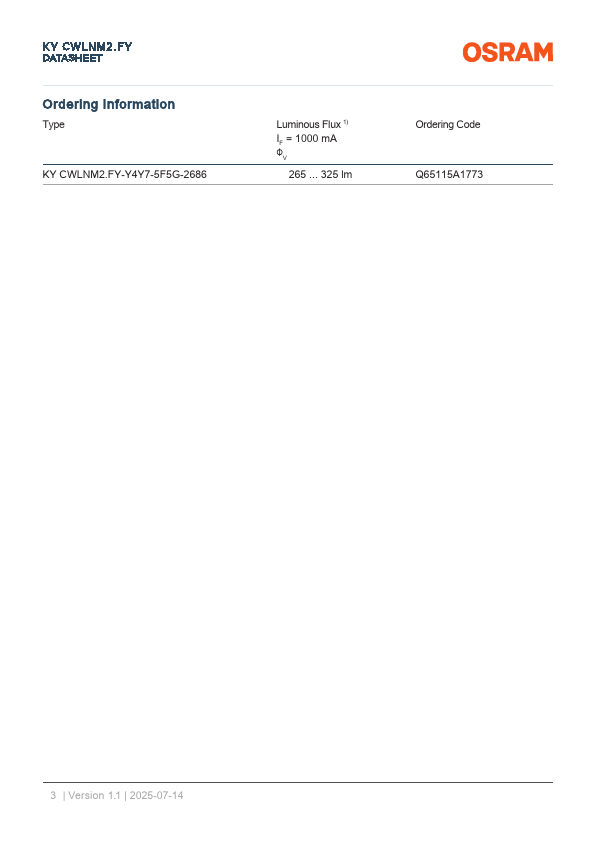

Ordering Information
Type
KY CWLNM2.FY-Y4Y7-5F5G-2686
Luminous Flux 1) IF = 1000 m A ΦV
265 ... 325 lm
Ordering Code Q65115A1773
3 | Version 1.1 | 2025-07-14
KY CWLNM2.FY DATASHEET
Maximum Ratings
Parameter
Operating Temperature 2)
Storage Temperature
Junction Temperature Junction Temperature for short time applications- Forward current TS = 25 °C Forward current pulsed D = 0.005 ; TS = 25 °C Surge current t ≤ 10 µs; D = 0.005 ; TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Reverse current 3)
- The median lifetime (L70/B50) for Tj = 175°C is 100h.
Symbol Top Tstg Tj Tj IF IF pulse IFS...
