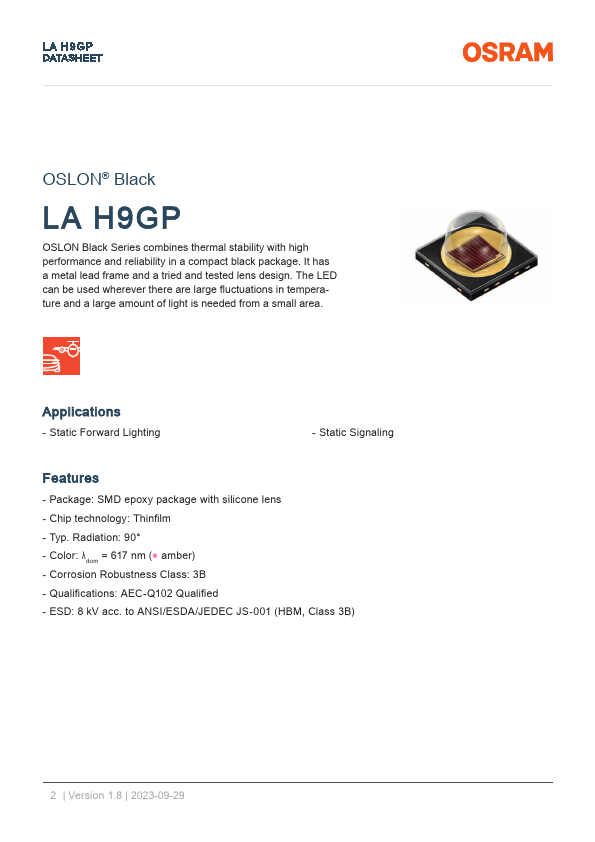

LA-H9GP
Features
- Package: SMD epoxy package with silicone lens
- Chip technology: Thinfilm
- Typ. Radiation: 90°
- Color: λdom = 617 nm (- amber)
- Corrosion Robustness Class: 3B
- Qualifications: AEC-Q102 Qualified
- ESD: 8 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
2 | Version 1.8 | 2023-09-29
LA H9GP DATASHEET

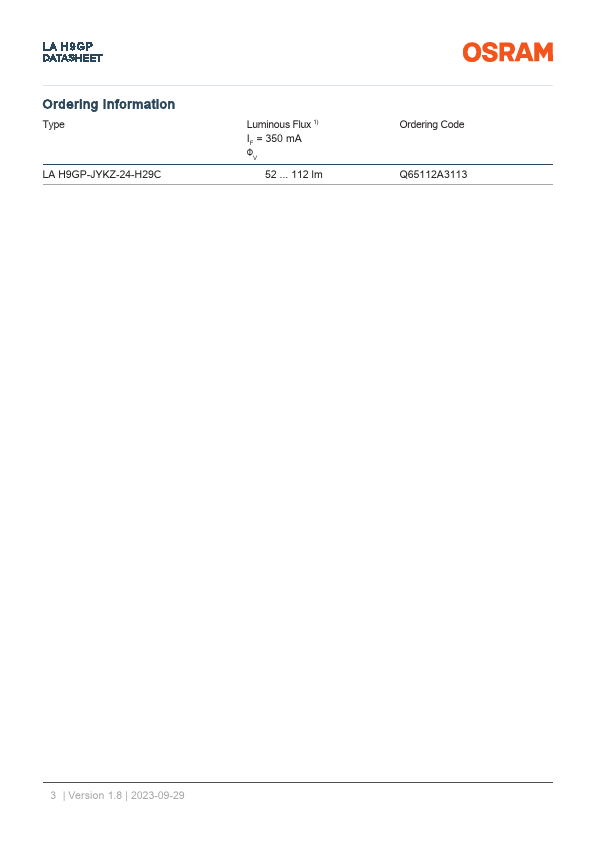

Ordering Information
Type
LA H9GP-JYKZ-24-H29C
Luminous Flux 1) IF = 350 m A ΦV
52 ... 112 lm
Ordering Code Q65112A3113
3 | Version 1.8 | 2023-09-29
LA H9GP DATASHEET

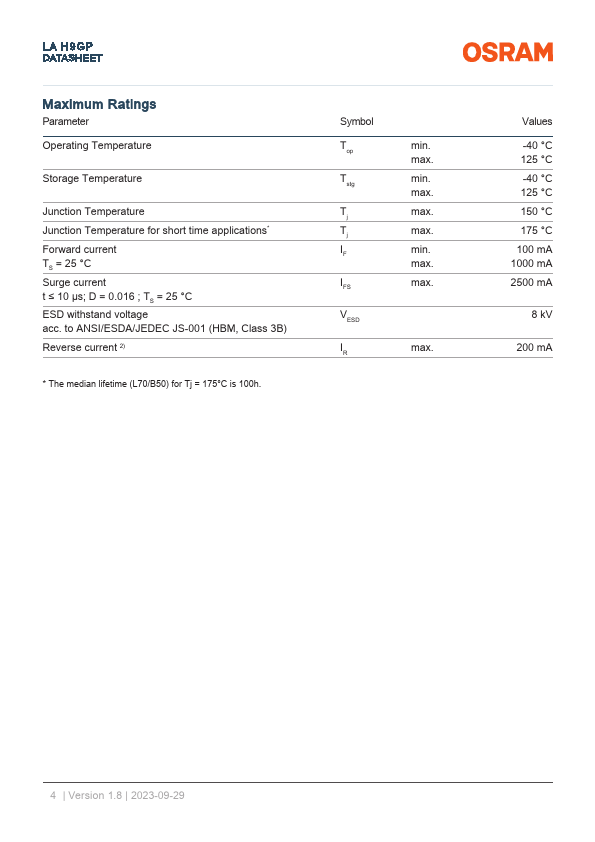

Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature Junction Temperature for short time applications- Forward current TS = 25 °C Surge current t ≤ 10 µs; D = 0.016 ; TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Reverse current 2)
- The median lifetime (L70/B50) for Tj = 175°C is 100h.
Symbol Top
Tstg
Tj Tj IF
VESD
IR min. max. min. max. max. max. min. max. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 150 °C 175 °C 100...
