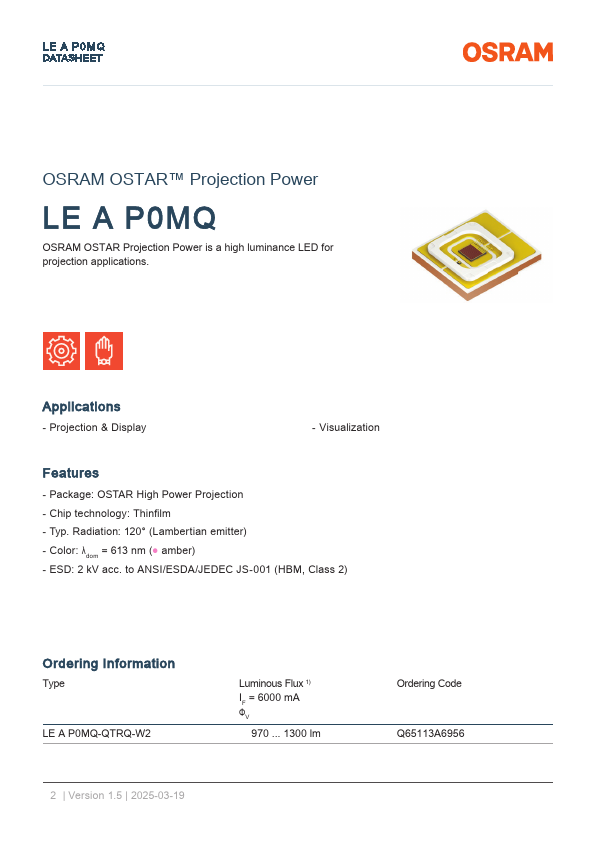

LE-A-P0MQ
Features
- Package: OSTAR High Power Projection
- Chip technology: Thinfilm
- Typ. Radiation: 120° (Lambertian emitter)
- Color: λdom = 613 nm (- amber)
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Ordering Information
Type
LE A P0MQ-QTRQ-W2
Luminous Flux 1) IF = 6000 m A ΦV
970 ... 1300 lm
2 | Version 1.5 | 2025-03-19
Ordering Code Q65113A6956
LE A P0MQ DATASHEET

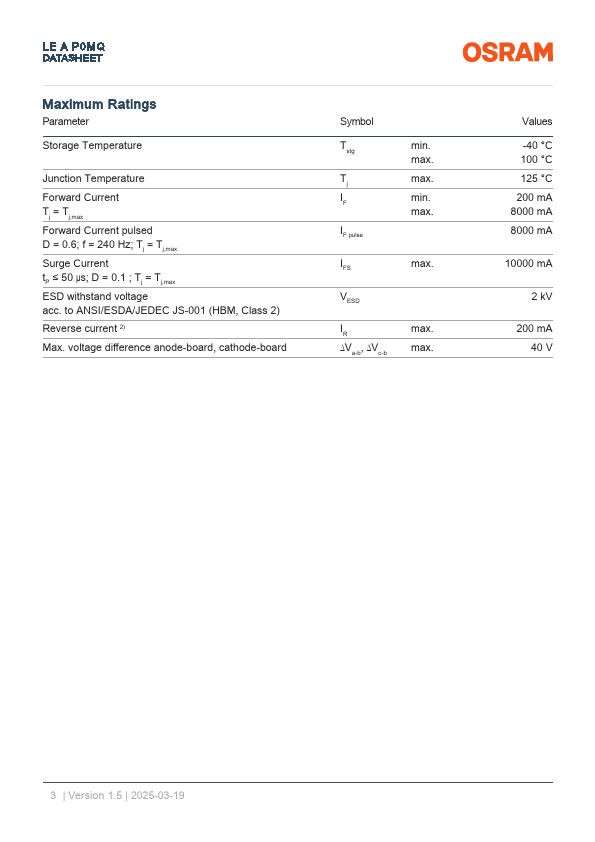

Maximum Ratings
Parameter
Storage Temperature
Junction Temperature Forward Current Tj = Tj,max Forward Current pulsed D = 0.6; f = 240 Hz; Tj = Tj,max Surge Current t P ≤ 50 μs; D = 0.1 ; Tj = Tj,max ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) Reverse current 2) Max. voltage difference anode-board, cathode-board
Symbol Tstg
Tj IF
IF pulse
VESD
IR ∆Va-b, ∆Vc-b min. max. max. min. max. max. max. max.
Values -40 °C 100 °C 125 °C 200 m A 8000 m A 8000 m A
10000 m A
2 k V
200 m A 40 V
3 | Version 1.5 | 2025-03-19
LE A P0MQ DATASHEET

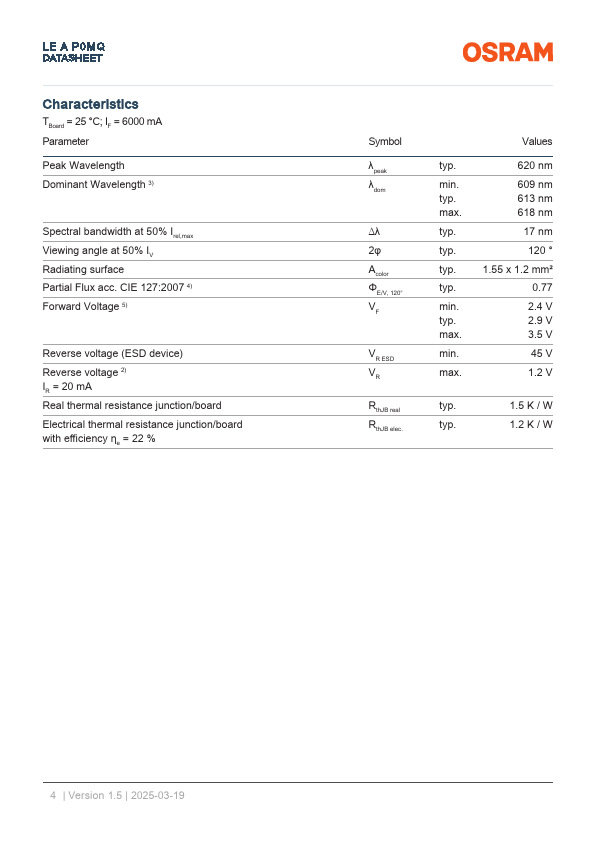

Characteristics
TBoard = 25 °C; IF = 6000 m...
