LGM67K

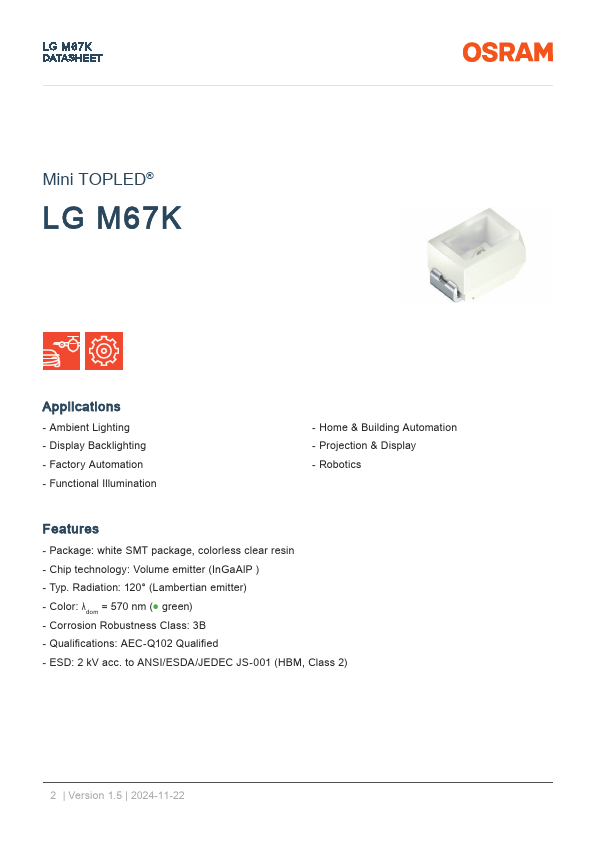

Features
- Package: white SMT package, colorless clear resin
- Chip technology: Volume emitter (In Ga Al P )
- Typ. Radiation: 120° (Lambertian emitter)
- Color: λdom = 570 nm (- green)
- Corrosion Robustness Class: 3B
- Qualifications: AEC-Q102 Qualified
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
2 | Version 1.5 | 2024-11-22
LG M67K DATASHEET

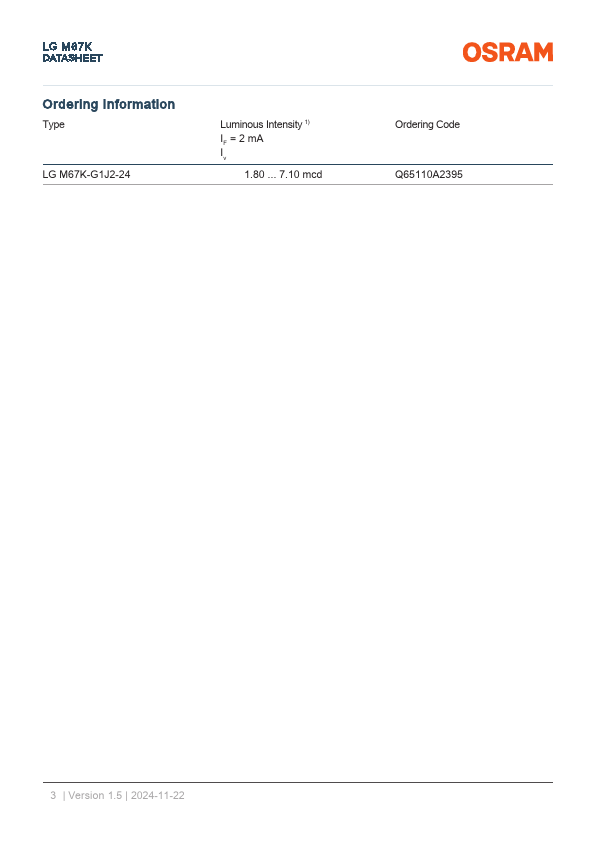

Ordering Information
Type
LG M67K-G1J2-24
Luminous Intensity 1) IF = 2 m A Iv
1 7.10 mcd
Ordering Code Q65110A2395
3 | Version 1.5 | 2024-11-22
LG M67K DATASHEET
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TS = 25 °C Forward current pulsed t ≤ 10 µs; D = 0.005 ; TS = 25 °C Reverse voltage 2) TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top Tstg Tj IF IF pulse VR VESD min. max. min. max. max. max. max. max.
Values -40 °C 100 °C -40 °C 100 °C 125 °C 20 m A
100 m A
12 V
2 k V
