LGQ396 - LED 0603

Datasheet Summary

Features

- Package: SMT package 0603, colorless diffused resin - Chip technology: Volume emitter (InGaAlP ) - Typ. Radiation: 150° (horizontal = 0°), 120° (vertical = 90°) - Color: λdom = 573 nm (.
green) - Corrosion Robustness Class: 3B - ESD: 1 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM) 2 | Version 1.8 | 2024-12-16 Not for new design LG Q396.

OSRAM

📥 Download Datasheet

Datasheet Details

Part number	LGQ396
Manufacturer	OSRAM
File Size	1.91 MB
Description	LED 0603
Datasheet	LGQ396 Datasheet

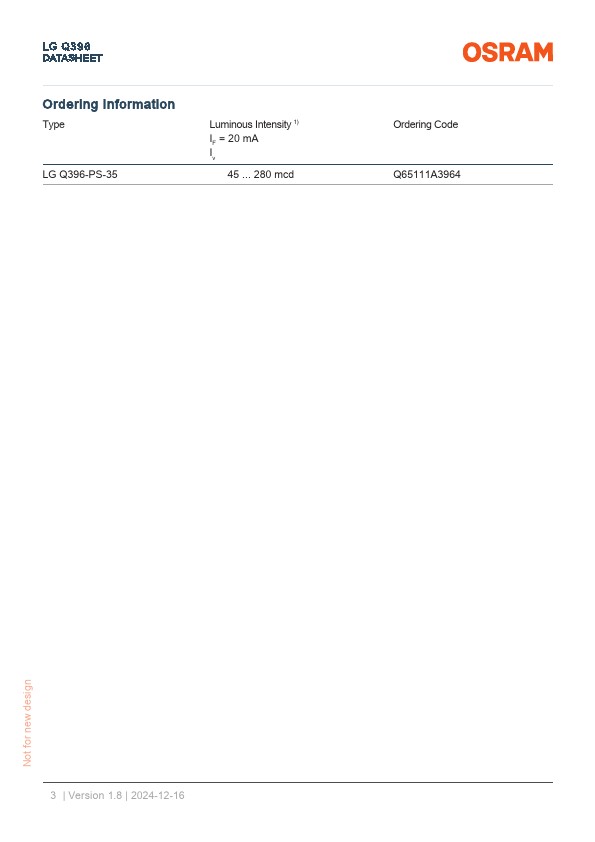

Additional preview pages of the LGQ396 datasheet.

📁 Similar Datasheet

LGQ2D102MHSC - Aluminum Electrolytic Capacitors (nichicon)
LGQ2D471MHSZ - Aluminum Electrolytic Capacitors (nichicon)
LGQ2D681MHSZ - Aluminum Electrolytic Capacitors (nichicon)
LGQ2E471MHSA - Aluminum Electrolytic Capacitors (nichicon)
LGQ2E681MHSC - Aluminum Electrolytic Capacitors (nichicon)
LGQ971 - CHIPLED (Siemens Semiconductor Group)

Other Datasheets by OSRAM

Full PDF Text Transcription

Click to expand full text

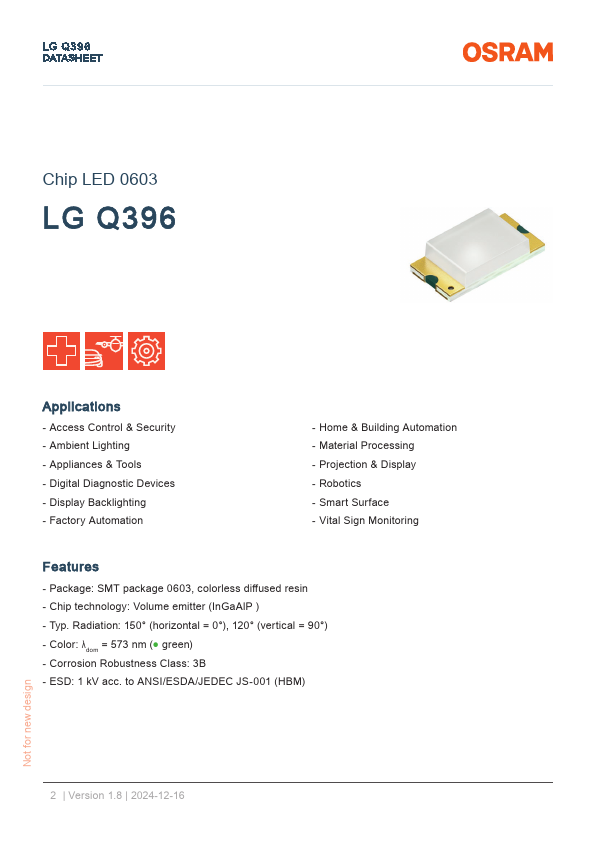

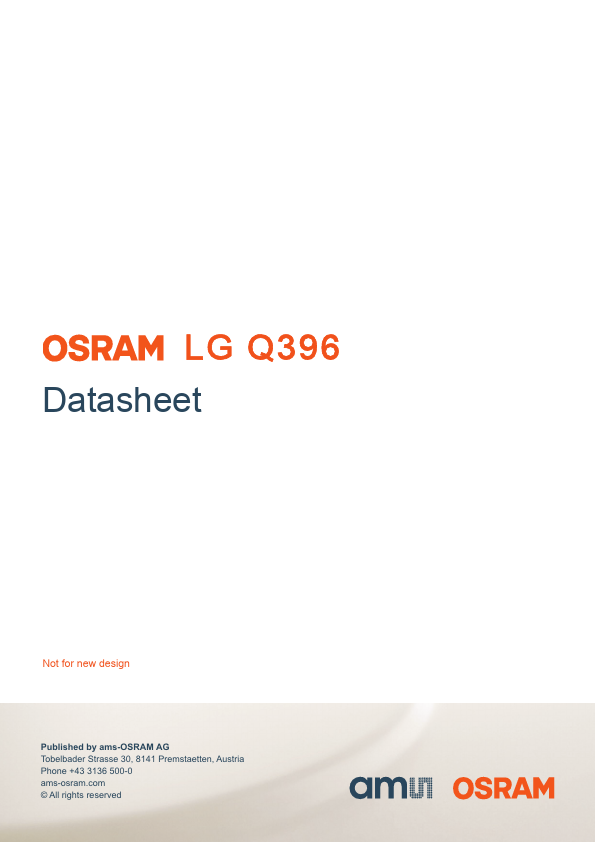

www.osram-os.com LG Q396 DATASHEET LG Q396 Datasheet Not for new design Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.8d | 2024-12-16 Not for new design LG Q396 DATASHEET Chip LED 0603 LG Q396 Applications - Access Control & Security - Ambient Lighting - Appliances & Tools - Digital Diagnostic Devices - Display Backlighting - Factory Automation - Home & Building Automation - Material Processing - Projection & Display - Robotics - Smart Surface - Vital Sign Monitoring Features - Package: SMT package 0603, colorless diffused resin - Chip technology: Volume emitter (InGaAlP ) - Typ.
