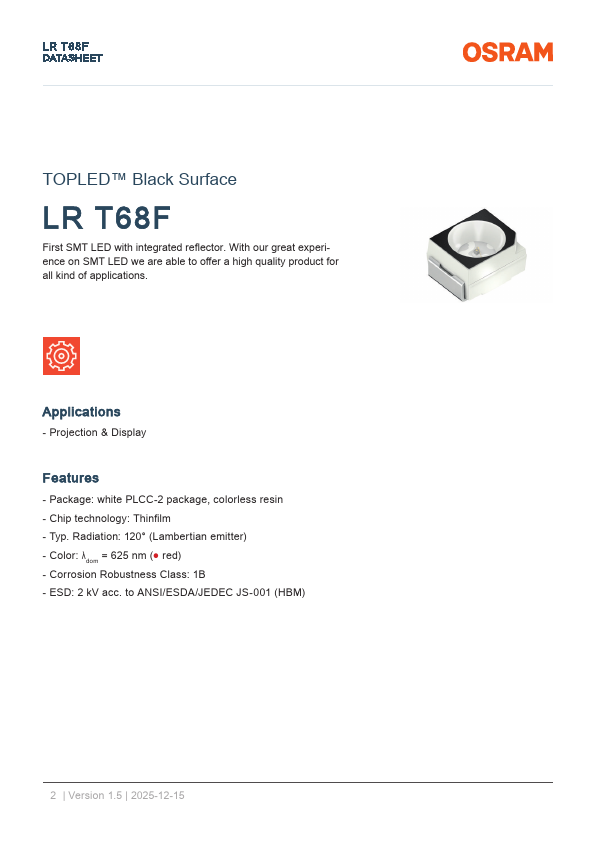

LRT68F
LRT68F is First SMT LED manufactured by ams OSRAM.
Features
- Package: white PLCC-2 package, colorless resin
- Chip technology: Thinfilm
- Typ. Radiation: 120° (Lambertian emitter)
- Color: λdom = 625 nm (- red)
- Corrosion Robustness Class: 1B
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
2 | Version 1.5 | 2025-12-15
LR T68F DATASHEET

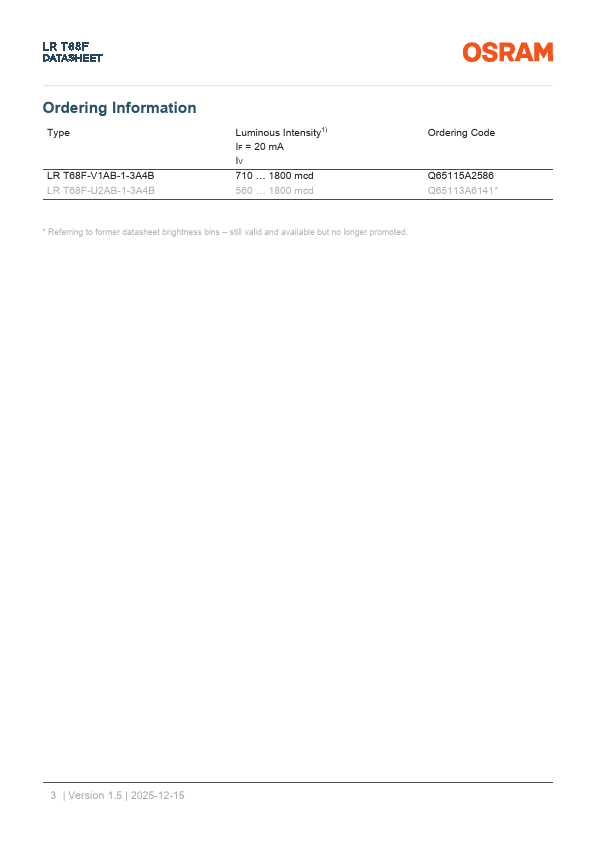

Ordering Information
Type
LR T68F-V1AB-1-3A4B LR T68F-U2AB-1-3A4B
Luminous Intensity1) IF = 20 m A IV
710 … 1800 mcd 560 … 1800 mcd
Ordering Code
Q65115A2586 Q65113A6141-
- Referring to former datasheet brightness bins
- still valid and available but no longer promoted.
3 | Version 1.5 | 2025-12-15
LR T68F DATASHEET

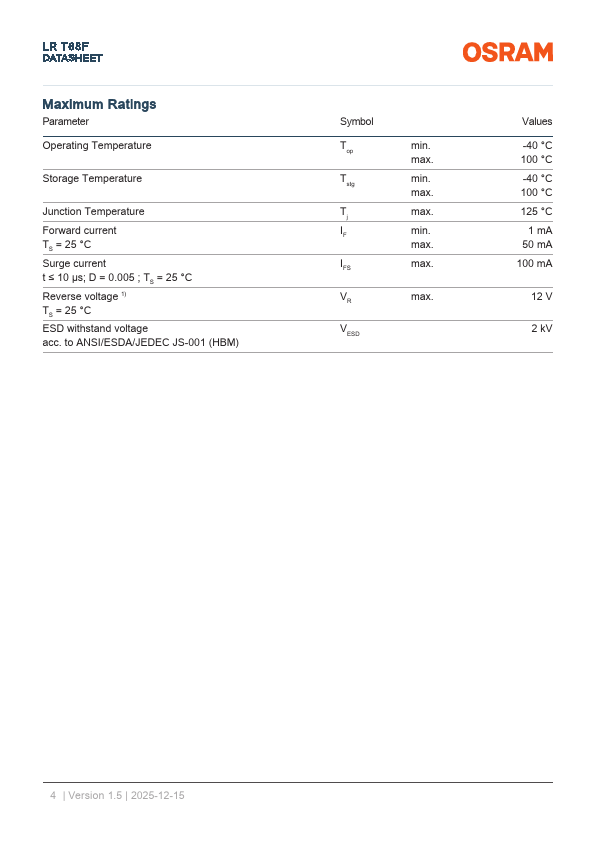

Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TS = 25 °C Surge current t ≤ 10 µs; D = 0.005 ; TS = 25 °C Reverse voltage 1) TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. min. max. max. max.
Values
-40 °C 100 °C -40 °C 100 °C 125 °C
1 m A 50 m A 100 m A
12 V
2 k V
4 | Version 1.5 | 2025-12-15
LR T68F DATASHEET
Characteristics...
