LRVH9F Datasheet | ams OSRAM

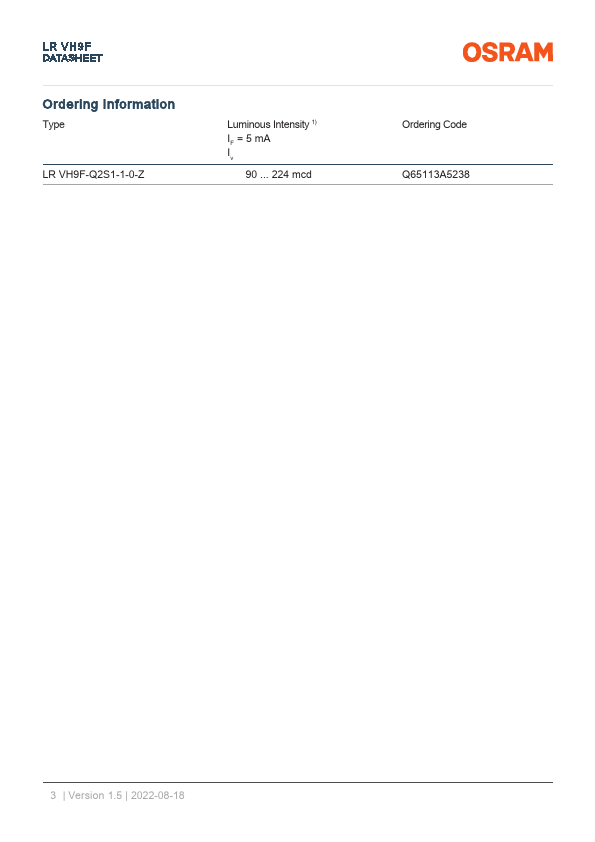

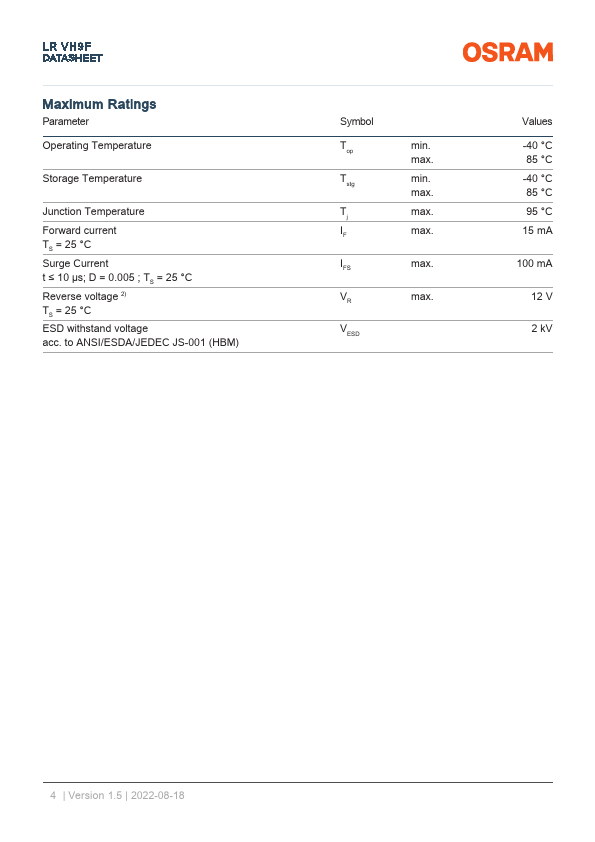

Features - Package: SMT package, standard SMT footprint 0402, colorless diffused resin - Chip technology: Thinfilm - Typ. Radiation: 140° (horizontal), 150° (vertical) - Color: λdom = 625 nm (- red) - Optical efficacy: 50 lm/W - Corrosion Robustness Class: 3B - ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)  2 | Version 1.5 | 2022-08-18 LR VH9F DATASHEET Ordering Information  Type LR VH9F-Q2S1-1-0-Z Luminous Intensity 1) IF = 5 m A Iv 90 ... 224 mcd Ordering Code Q65113A5238  3 | Version 1.5 | 2022-08-18  LR VH9F DATASHEET Maximum Ratings Parameter Operating Temperature Storage Temperature Junction Temperature Forward current TS = 25 °C Surge Current t ≤ 10 µs; D = 0.005 ; TS = 25 °C Reverse voltage 2) TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM) Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. max. max. max. Values -40 °C 85 °C -40 °C 85 °C 95 °C 15 m A 100 m A 12 V 2 k V   4 | Version 1.5 | 2022-08-18 LR VH9F DATASHEET Characteristics IF = 5 m A; TS = 25 °C Parameter Peak Wavelength Dominant Wavelength 3) Spectral Bandwidth at 50% Irel,max Viewing angle at 50% IV values for 0°, 90° Forward Voltage 4) IF = 5 m A Reverse current 2) VR = 12 V Real thermal resistance junction/solderpoint 5)...
