LRY8SF - 3010 Micro SIDE LED

Datasheet Summary

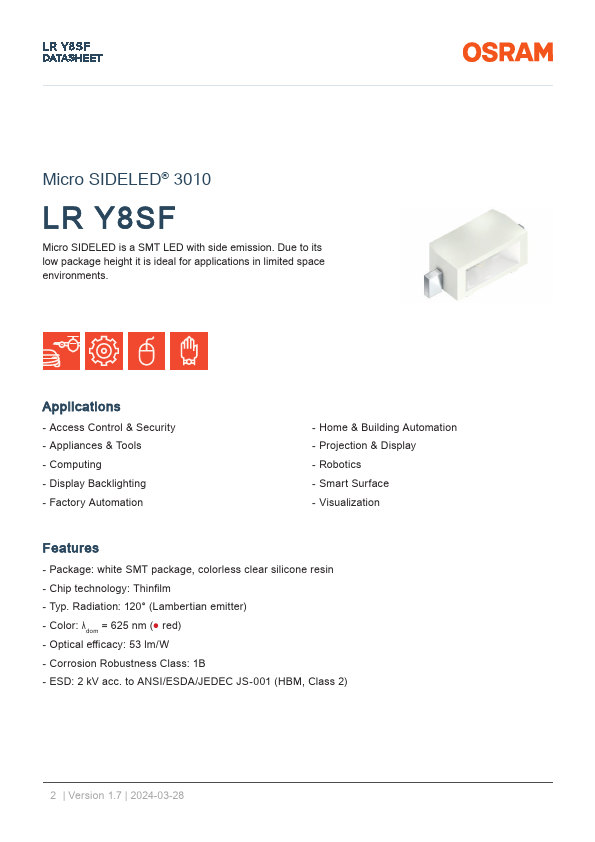

Features

- Package: white SMT package, colorless clear silicone resin - Chip technology: Thinfilm - Typ. Radiation: 120° (Lambertian emitter) - Color: λdom = 625 nm (.
red) - Optical efficacy: 53 lm/W - Corrosion Robustness Class: 1B - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) 2 | Version 1.7 | 2024-03-28 LR Y8SF.

OSRAM

📥 Download Datasheet

Datasheet Details

Part number	LRY8SF
Manufacturer	OSRAM
File Size	1.68 MB
Description	3010 Micro SIDE LED
Datasheet	LRY8SF Datasheet

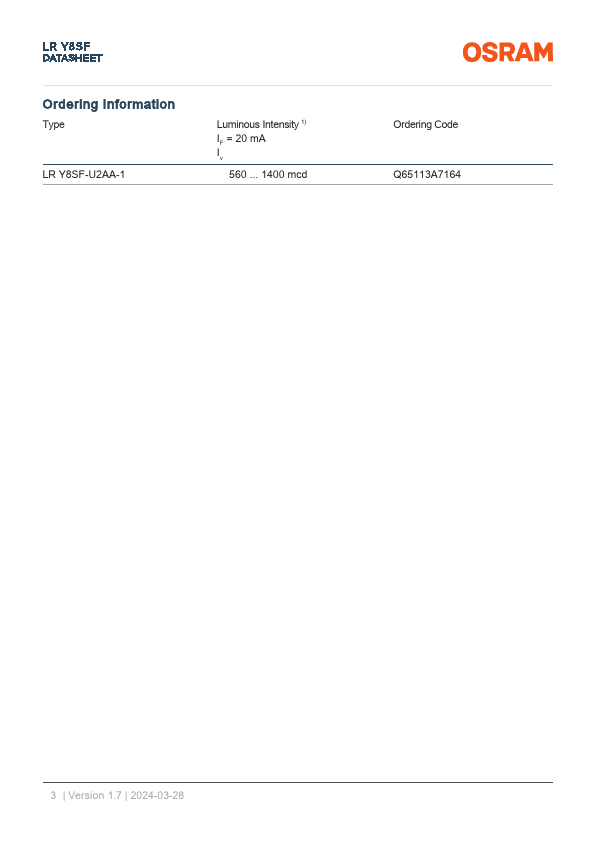

Additional preview pages of the LRY8SF datasheet.

📁 Similar Datasheet

Other Datasheets by OSRAM

Full PDF Text Transcription

Click to expand full text

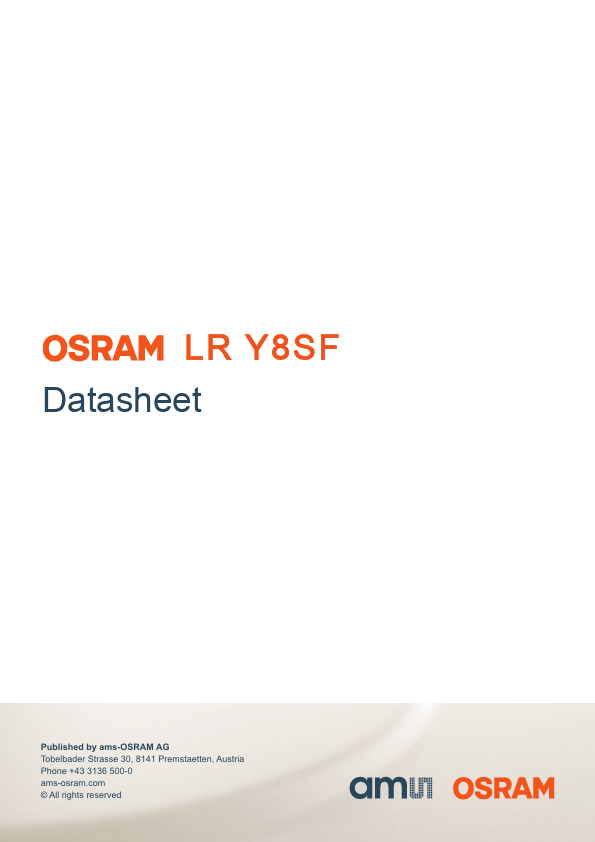

www.osram-os.com LR Y8SF DATASHEET LR Y8SF Datasheet Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.7d | 2024-03-28 LR Y8SF DATASHEET Micro SIDELED® 3010 LR Y8SF Micro SIDELED is a SMT LED with side emission. Due to its low package height it is ideal for applications in limited space environments. Applications - Access Control & Security - Appliances & Tools - Computing - Display Backlighting - Factory Automation - Home & Building Automation - Projection & Display - Robotics - Smart Surface - Visualization Features - Package: white SMT package, colorless clear silicone resin - Chip technology: Thinfilm - Typ.
