LSR976
Features
:
- Package: SMT package 0805, colorless diffused resin
- Chip technology: In Ga Al P
- Typ. Radiation: 150°
- Color: λdom = 633 nm (- super red)
- Optical efficacy: 7 lm/W
- Corrosion Robustness Class: 3B
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
1 Version 1.3 | 2021-09-28
LS R976

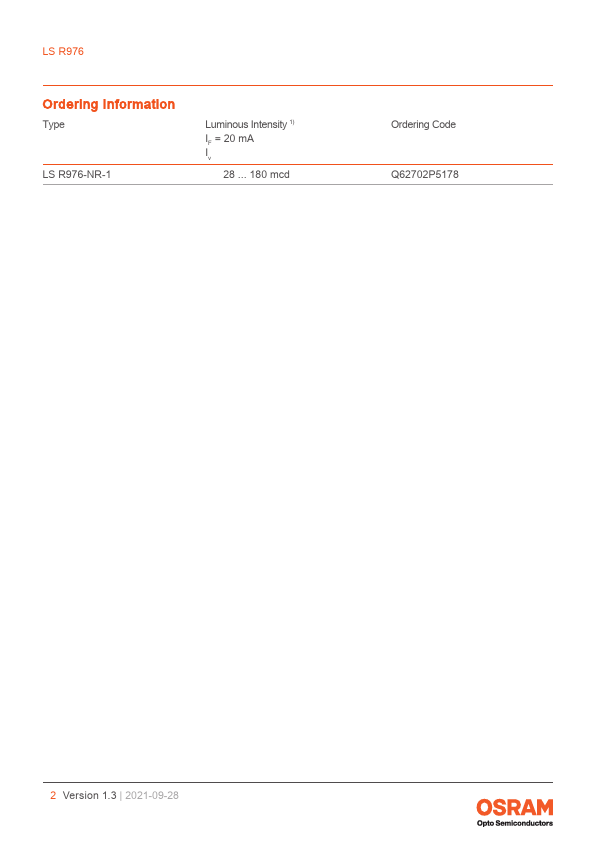

Ordering Information
Type
LS R976-NR-1
Luminous Intensity 1) IF = 20 m A Iv
28 ... 180 mcd
Ordering Code Q62702P5178
2 Version 1.3 | 2021-09-28
LS R976

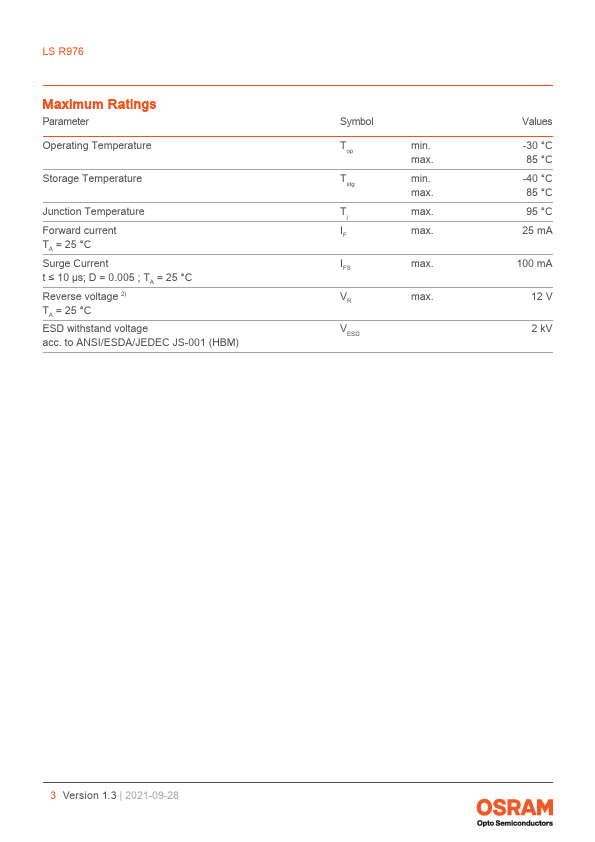

Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TA = 25 °C Surge Current t ≤ 10 µs; D = 0.005 ; TA = 25 °C Reverse voltage 2) TA = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. max. max. max.
Values -30 °C 85 °C -40 °C 85 °C 95 °C 25 m A
100 m A
12 V
2 k V
3 Version 1.3 | 2021-09-28
LS R976
Characteristics
IF = 20 m A; TA = 25 °C Parameter
Peak Wavelength Dominant...
