LST676

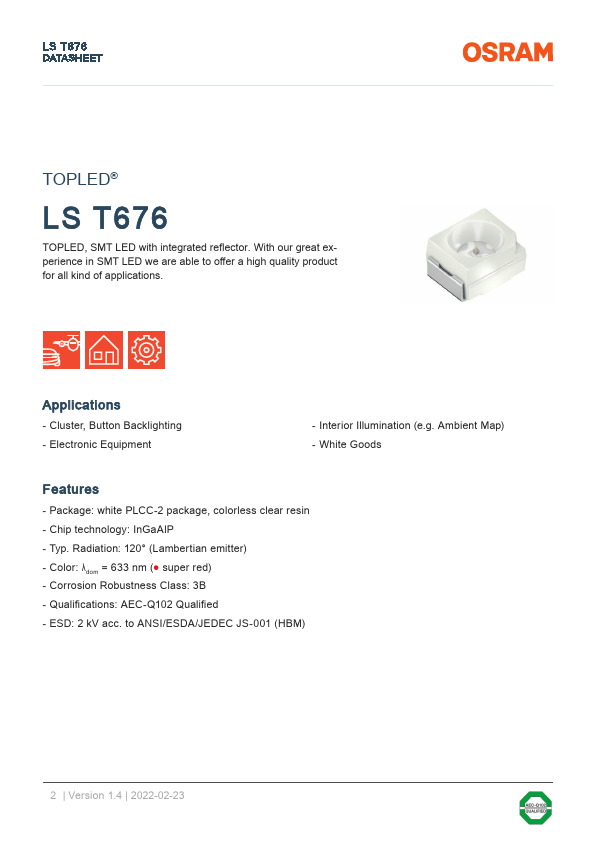

Features
- Package: white PLCC-2 package, colorless clear resin
- Chip technology: In Ga Al P
- Typ. Radiation: 120° (Lambertian emitter)
- Color: λdom = 633 nm (- super red)
- Corrosion Robustness Class: 3B
- Qualifications: AEC-Q102 Qualified
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
2 | Version 1.4 | 2022-02-23
<img
<img
<img
LS T676 DATASHEET

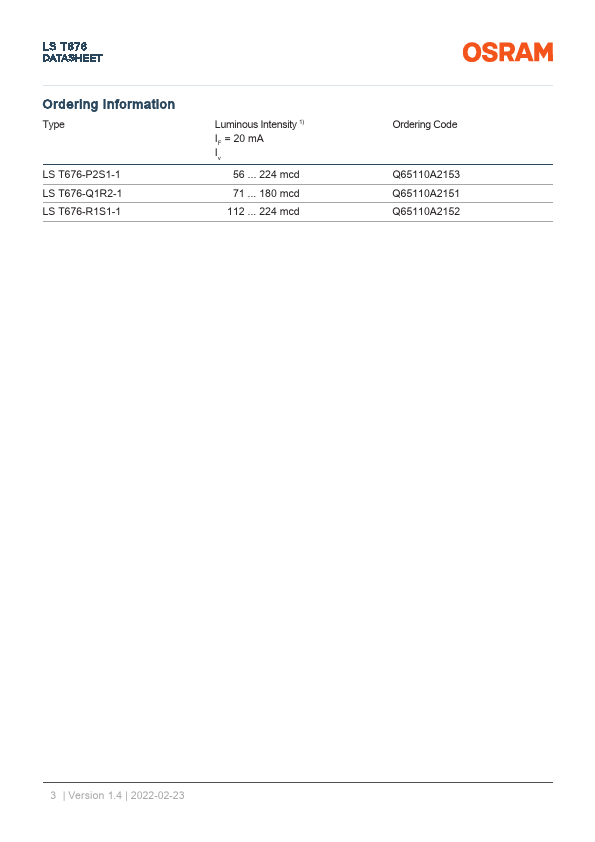

Ordering Information
Type
LS T676-P2S1-1 LS T676-Q1R2-1 LS T676-R1S1-1
Luminous Intensity 1) IF = 20 m A Iv
56 ... 224 mcd
71 ... 180 mcd
112 ... 224 mcd
Ordering Code
Q65110A2153 Q65110A2151 Q65110A2152
3 | Version 1.4 | 2022-02-23
LS T676 DATASHEET
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TS = 25 °C Forward current pulsed t ≤ 10 µs; D = 0.005 ; TS = 25 °C Surge current Single pulses; t ≤ 10 μs; TS = 25 °C Reverse voltage 2) TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Symbol Top Tstg Tj IF IF pulse IFS VR VESD min. max. min....
