LWQ38E - 0603 Chip LED

Features

  • - Package: SMT package 0603, colored diffused resin - Chip technology: Volume emitter on Sapphire (AlInGaN) - Typ. Radiation: 150° (horizontal = 0°), 130° (vertical = 90°) - Color: Cx = 0.3, Cy = 0.28 acc. to CIE 1931 (.
  • white) - Optical efficacy: 36 lm/W - Corrosion Robustness Class: 3B - ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) 2 | Version 1.10 | 2024-12-16 Not for new design LW Q38E.

📥 Download Datasheet

📁 Similar Datasheet

  • LWQ183 - Hyper CHIPLED (OSRAM GmbH)
  • LWQ18S - Hyper CHIPLED (OSRAM GmbH)
  • LWQ983 - Hyper CHIPLED (OSRAM GmbH)
Other Datasheets by OSRAM

    Full PDF Text Transcription

    Click to expand full text

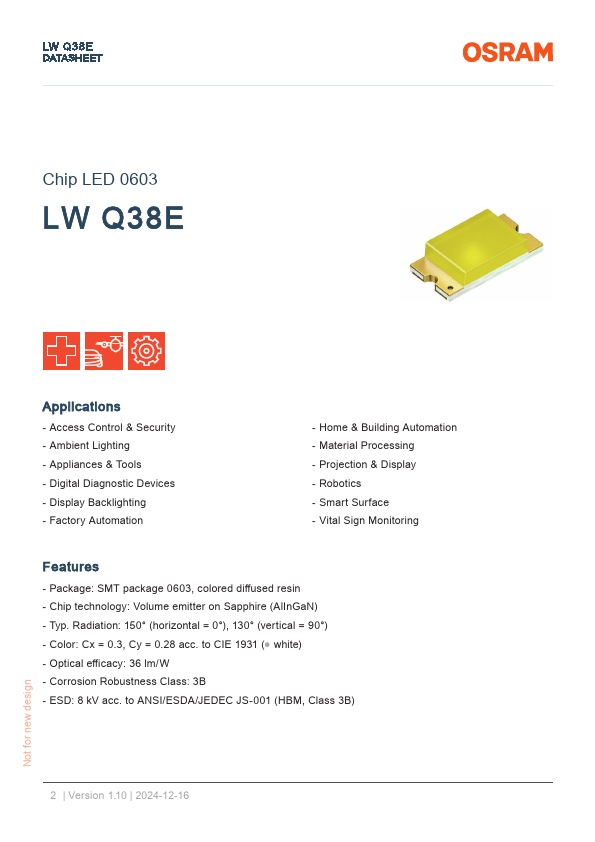

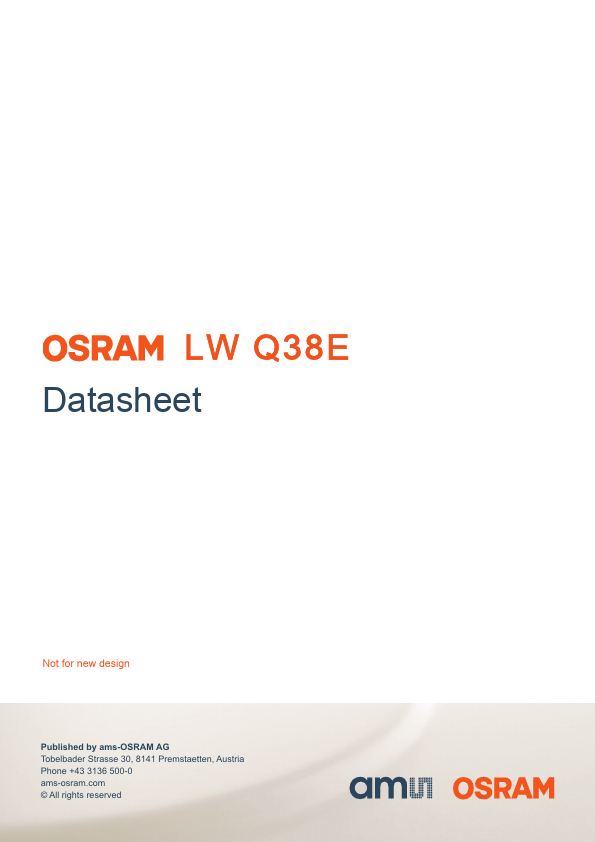

    www.osram-os.com LW Q38E DATASHEET LW Q38E Datasheet  Not for new design Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © A1ll r|igVhetsrsreiosnerv1e.1d0 | 2024-12-16 Not for new design LW Q38E DATASHEET Chip LED 0603 LW Q38E Applications - Access Control & Security - Ambient Lighting - Appliances & Tools - Digital Diagnostic Devices - Display Backlighting - Factory Automation  - Home & Building Automation - Material Processing - Projection & Display - Robotics - Smart Surface - Vital Sign Monitoring Features - Package: SMT package 0603, colored diffused resin - Chip technology: Volume emitter on Sapphire (AlInGaN) - Typ. Radiation: 150° (horizontal = 0°), 130° (vertical = 90°) - Color: Cx = 0.3, Cy = 0.28 acc.
