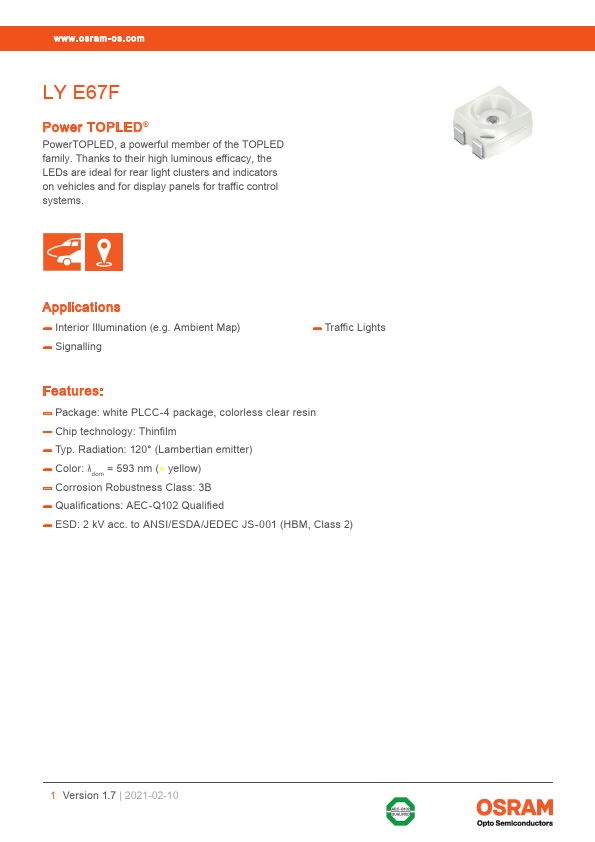

LYE67F
Features
:
- - Package: white PLCC-4 package, colorless clear resin
- - Chip technology: Thinfilm
- - Typ. Radiation: 120° (Lambertian emitter)
- - Color: λdom = 593 nm (- yellow)
- - Corrosion Robustness Class: 3B
- - Qualifications: AEC-Q102 Qualified
- - ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
1 Version 1.7 | 2021-02-10
LY E67F

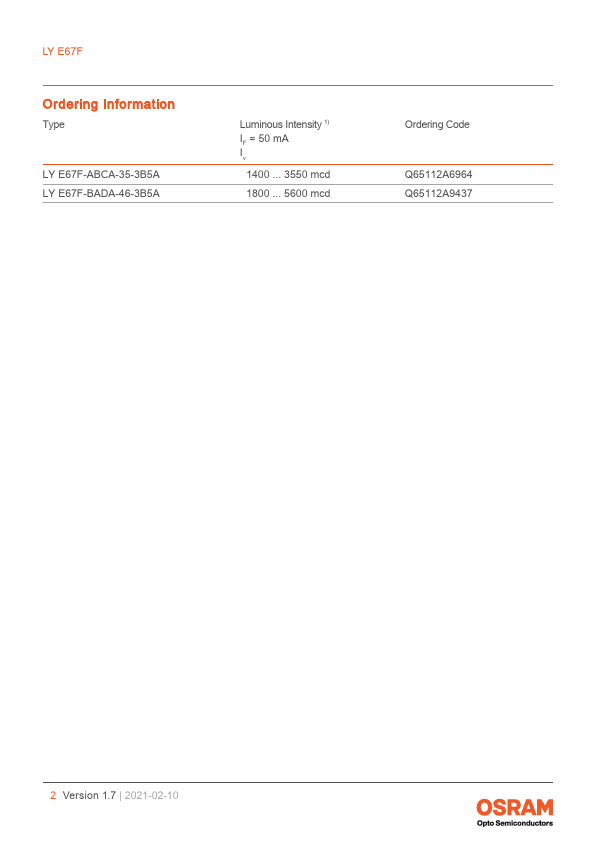

Ordering Information
Type
LY E67F-ABCA-35-3B5A LY E67F-BADA-46-3B5A
Luminous Intensity 1) IF = 50 m A Iv
1400 ... 3550 mcd
1800 ... 5600 mcd
Ordering Code
Q65112A6964 Q65112A9437
2 Version 1.7 | 2021-02-10
LY E67F

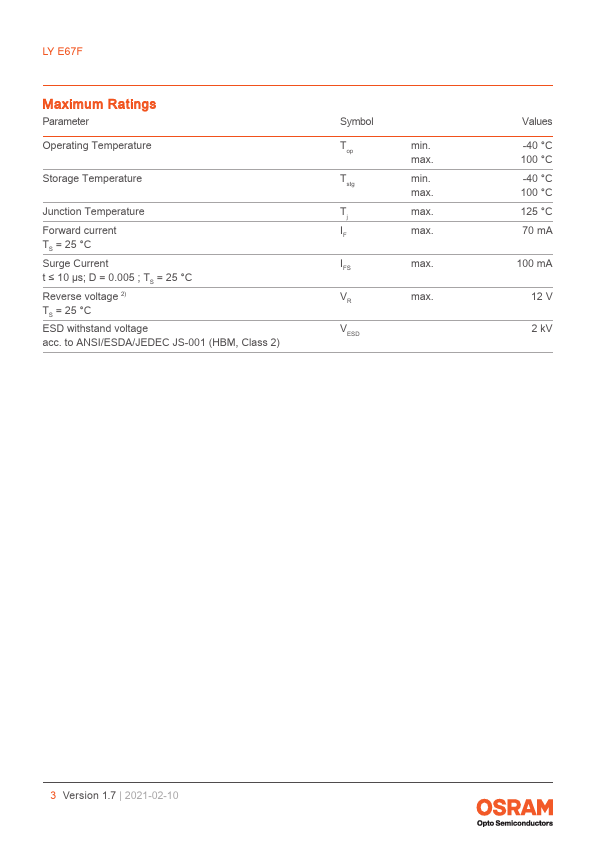

Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature Forward current TS = 25 °C Surge Current t ≤ 10 µs; D = 0.005 ; TS = 25 °C Reverse voltage 2) TS = 25 °C ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top Tstg Tj IF IFS VR VESD min. max. min. max. max. max. max. max.
Values -40 °C 100 °C -40 °C 100 °C 125 °C 70 m A
100 m A
12 V
2 k V
3 Version 1.7 |...
