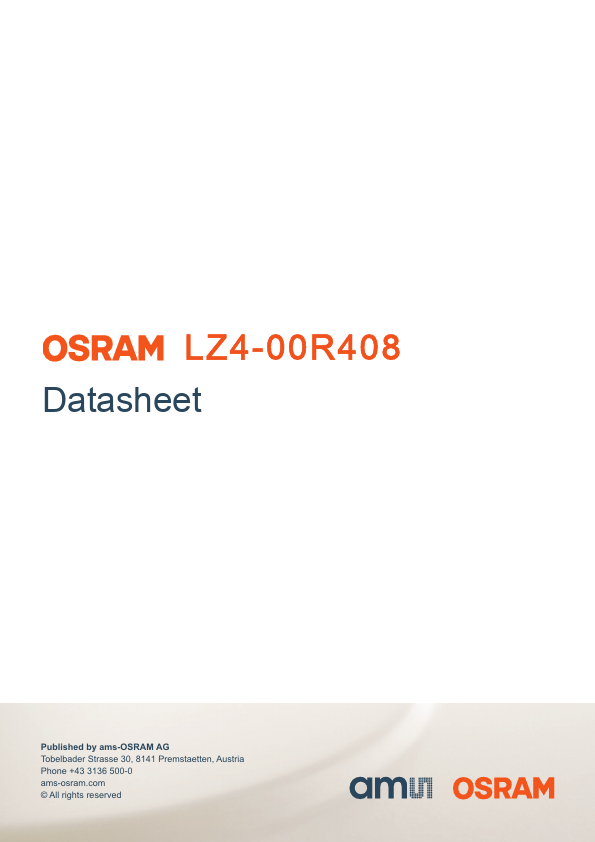

LZ4-00R408

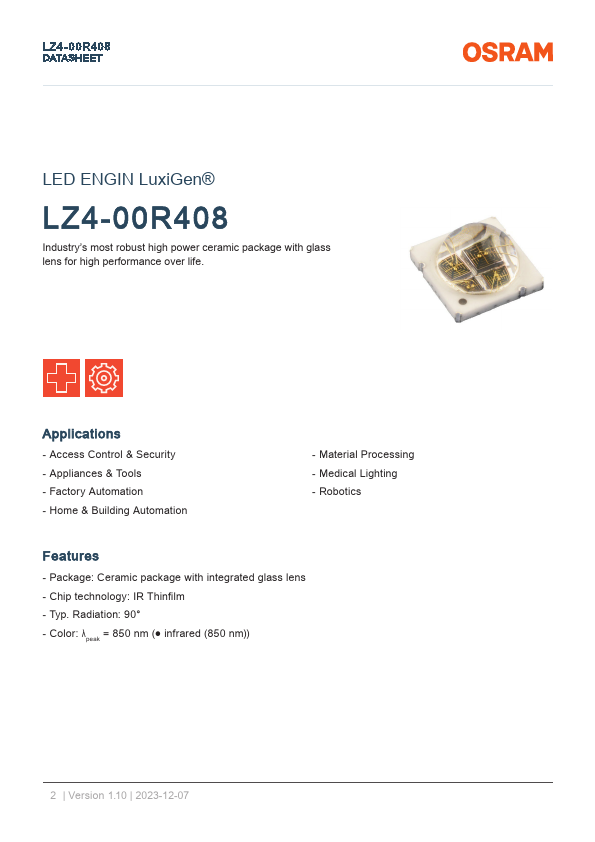

Features
- Material Processing
- Medical Lighting
- Robotics
- Package: Ceramic package with integrated glass lens
- Chip technology: IR Thinfilm
- Typ. Radiation: 90°
- Color: λpeak = 850 nm (- infrared (850 nm))
2 | Version 1.10 | 2023-12-07
LZ4-00R408 DATASHEET

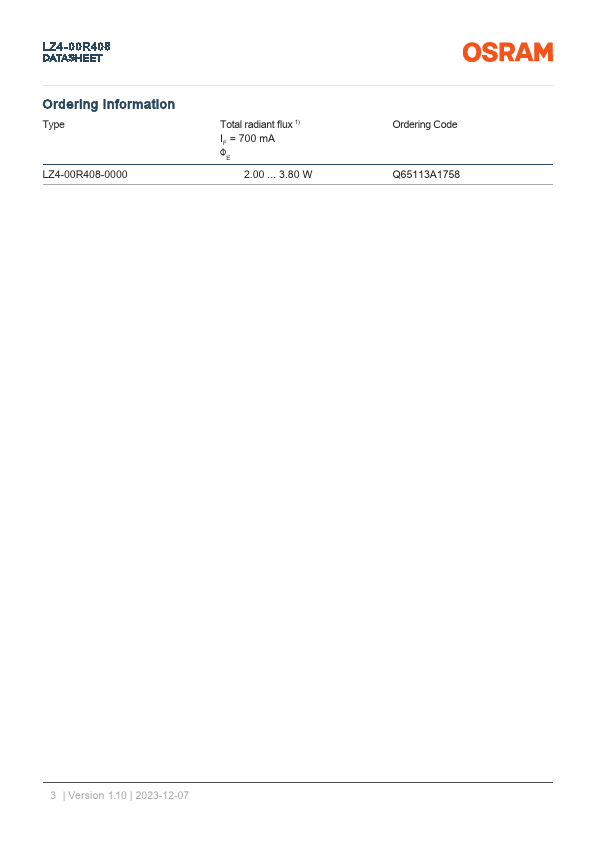

Ordering Information
Type
LZ4-00R408-0000
Total radiant flux 1) IF = 700 m A ΦE
2 3.80 W
Ordering Code Q65113A1758
3 | Version 1.10 | 2023-12-07
LZ4-00R408 DATASHEET
Maximum Ratings
Parameter Operating Temperature
Storage Temperature
Junction Temperature 2) Forward Current 2) Forward Current pulsed t ≤ 10 ms; D ≤ 0.1 ; TC = 25 °C ESD withstand voltage acc. ANSI/ESDA/JEDEC JS-001 (HBM, Class 0) Reverse voltage 3)
Symbol Top
Tstg
Tj IF IF pulse
VESD
VR min. max. min. max. max. max. max.
Values
-40 °C 125 °C -40 °C 125 °C 125 °C 1000 m A 2000 m A
ESD sensitive device
Not designed for reverse operation
4 | Version 1.10 | 2023-12-07
LZ4-00R408 DATASHEET
Characteristics
IF = 700 m A; TC = 25 °C;...
