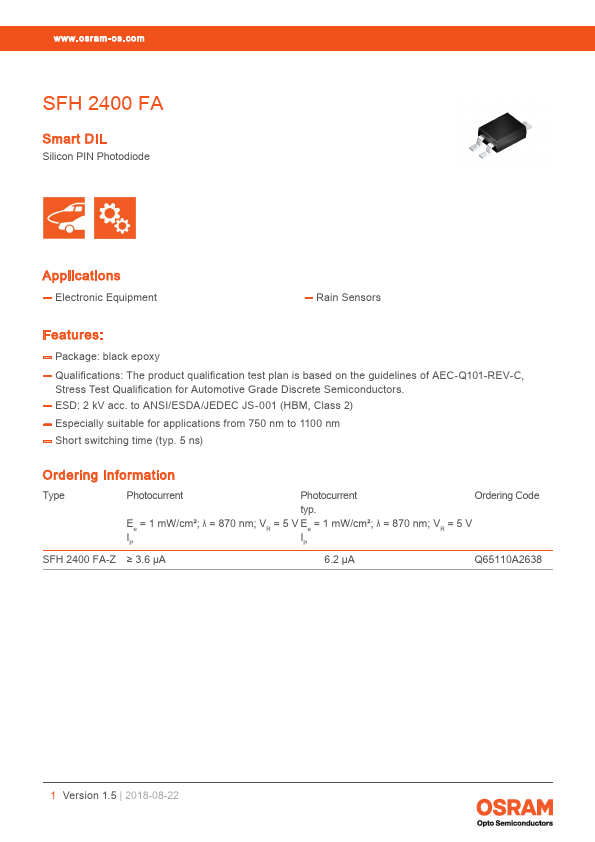

Datasheet Summary
Prowdwuwk.todsartaemn-bolast.tco|mVersion 1.1 SFH 2400 FA
SFH 2400 FA
Smart DIL
Silicon PIN Photodiode
Applications
- - Electronic Equipment
- - Rain Sensors
Features
:
- - Package: black epoxy
- - Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C,
Stress Test Qualification for Automotive Grade Discrete Semiconductors.
- - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- - Especially suitable for applications from 750 nm to 1100 nm
- - Short switching time (typ. 5 ns)
Ordering Information
Type
Photocurrent
Photocurrent
Ordering Code typ.
Ee = 1 mW/cm²; λ = 870 nm; VR = 5 V Ee = 1 mW/cm²; λ = 870 nm; VR = 5 V
SFH 2400 FA-Z...
