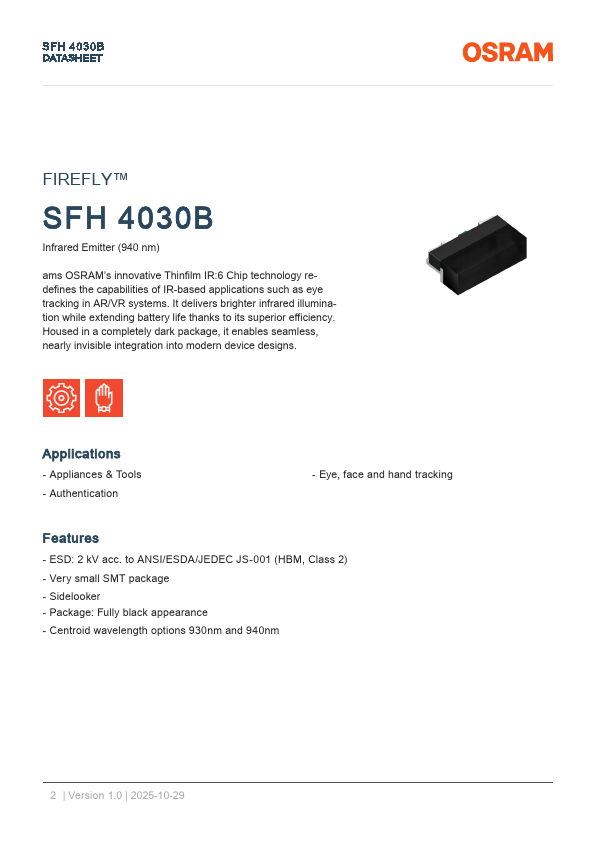

SFH4030B
Features
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Very small SMT package
- Sidelooker
- Package: Fully black appearance
- Centroid wavelength options 930nm and 940nm
2 | Version 1.0 | 2025-10-29
SFH 4030B DATASHEET

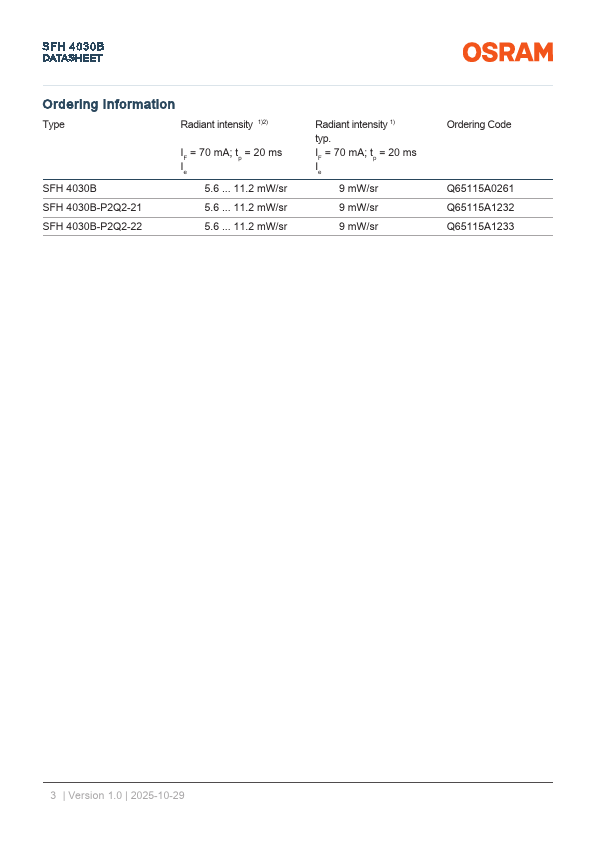

Ordering Information
Type
Radiant intensity 1)2)
SFH 4030B SFH 4030B-P2Q2-21 SFH 4030B-P2Q2-22
IF = 70 m A; tp = 20 ms Ie
5 11.2 m W/sr 5 11.2 m W/sr 5 11.2 m W/sr
Radiant intensity 1) typ. IF = 70 m A; tp = 20 ms Ie
9 m W/sr
9 m W/sr
9 m W/sr
Ordering Code
Q65115A0261 Q65115A1232 Q65115A1233
3 | Version 1.0 | 2025-10-29
SFH 4030B DATASHEET
Maximum Ratings
TS = 25 °C Parameter Operating temperature
Storage temperature
Junction temperature Forward current
Forward current pulsed tp ≤ 50 µs; D ≤ 0.005 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top
Tstg
Tj IF
IF pulse
VR Ptot VESD min. max. min. max. max. min. max. max. max. max. max.
Values
-40 °C 85...
