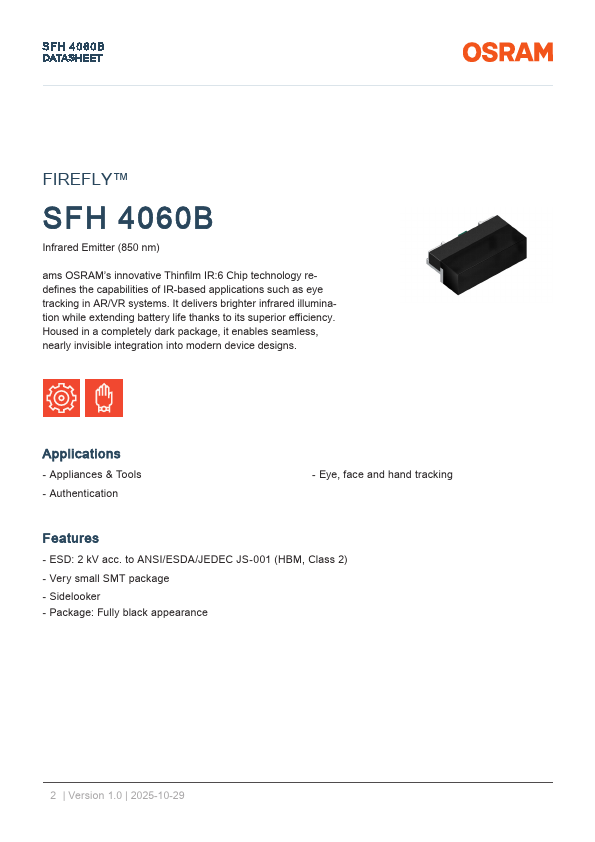

SFH4060B
Features
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Very small SMT package
- Sidelooker
- Package: Fully black appearance
2 | Version 1.0 | 2025-10-29
SFH 4060B DATASHEET

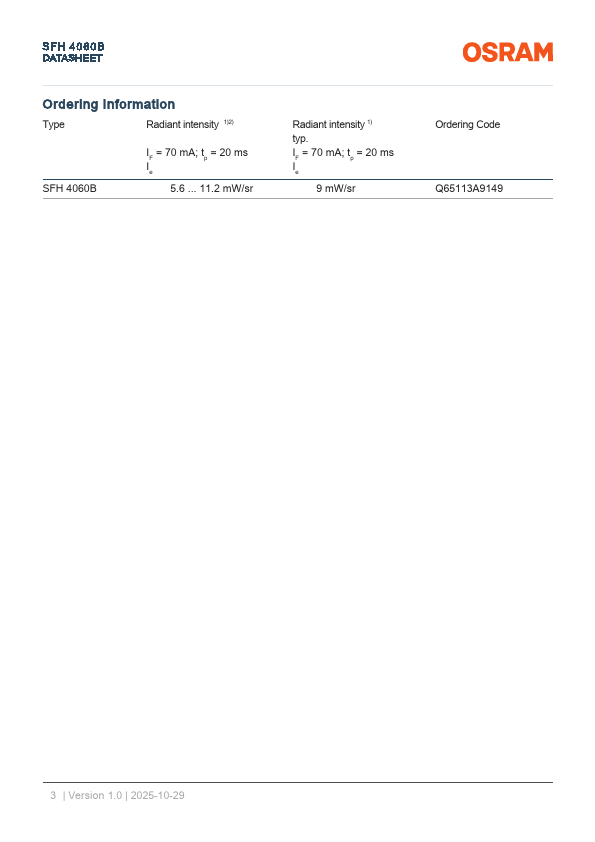

Ordering Information
Type
Radiant intensity 1)2)
SFH 4060B
IF = 70 m A; tp = 20 ms Ie
5 11.2 m W/sr
Radiant intensity 1) typ. IF = 70 m A; tp = 20 ms Ie
9 m W/sr
Ordering Code Q65113A9149
3 | Version 1.0 | 2025-10-29
SFH 4060B DATASHEET
Maximum Ratings
TS = 25 °C Parameter Operating temperature
Storage temperature
Junction temperature Forward current
Forward current pulsed tp ≤ 50 µs; D ≤ 0.005 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top
Tstg
Tj IF
IF pulse
VR Ptot VESD min. max. min. max. max. min. max. max. max. max. max.
Values
-40 °C 85 °C -40 °C 85 °C 100 °C 1 m A 70 m A 0.7 A
5V 136 m W
2 k V
4 | Version 1.0 | 2025-10-29
SFH 4060B...
