SFH409 - GaAs Infrared Emitter

Features

  • Very highly efficient GaAs-LED.
  • High reliability.
  • High pulse handling capability.
  • Good spectral match to silicon photodetectors.
  • Same package as SFH 309, SFH 487 Anwendungen.
  • IR-Fernsteuerungen von Fernseh-, Rundfunkund Videogeräten, Lichtdimmern.
  • Lichtschranken bis 500 kHz.
  • Münzzähler.
  • Sensorik.
  • Diskrete Optokoppler.

📥 Download Datasheet

Datasheet Details

Part number SFH409
Manufacturer ams OSRAM
File Size 85.05 KB
Description GaAs Infrared Emitter
Datasheet download datasheet SFH409 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SFH409 GaAs Infrared Emitter Siemens Semiconductor Group
SFH400 GaAs Infrared Emitter Siemens Semiconductor Group
SFH401 GaAs Infrared Emitter Siemens
SFH402 GaAs-IR-Lumineszenzdiode GaAs Infrared Emitter Siemens Semiconductor Group
SFH405 GaAs Infrared Emitter Siemens Semiconductor Group

Other Datasheets by ams OSRAM

Part Number Description
SFH400 GaAs Infrared Emitter
SFH401 GaAs Infrared Emitter
SFH4030B Infrared Emitter
SFH4043 High Power Infrared Emitter
SFH405 GaAs Infrared Emitter

Full PDF Text Transcription

Click to expand full text

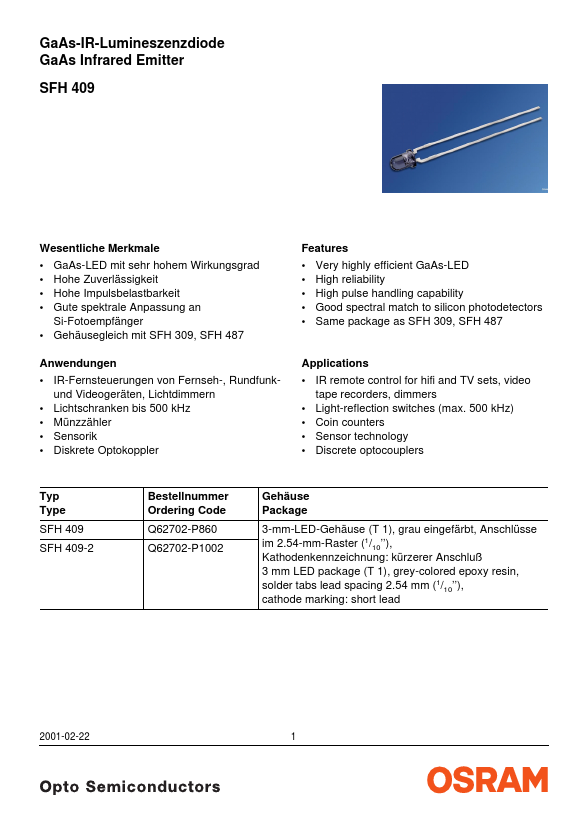

GaAs-IR-Lumineszenzdiode GaAs Infrared Emitter SFH 409 Wesentliche Merkmale • GaAs-LED mit sehr hohem Wirkungsgrad • Hohe Zuverlässigkeit • Hohe Impulsbelastbarkeit • Gute spektrale Anpassung an Si-Fotoempfänger • Gehäusegleich mit SFH 309, SFH 487 Features • Very highly efficient GaAs-LED • High reliability • High pulse handling capability • Good spectral match to silicon photodetectors • Same package as SFH 309, SFH 487 Anwendungen • IR-Fernsteuerungen von Fernseh-, Rundfunkund Videogeräten, Lichtdimmern • Lichtschranken bis 500 kHz • Münzzähler • Sensorik • Diskrete Optokoppler Applications • IR remote control for hifi and TV sets, video tape recorders, dimmers • Light-reflection switches (max.
