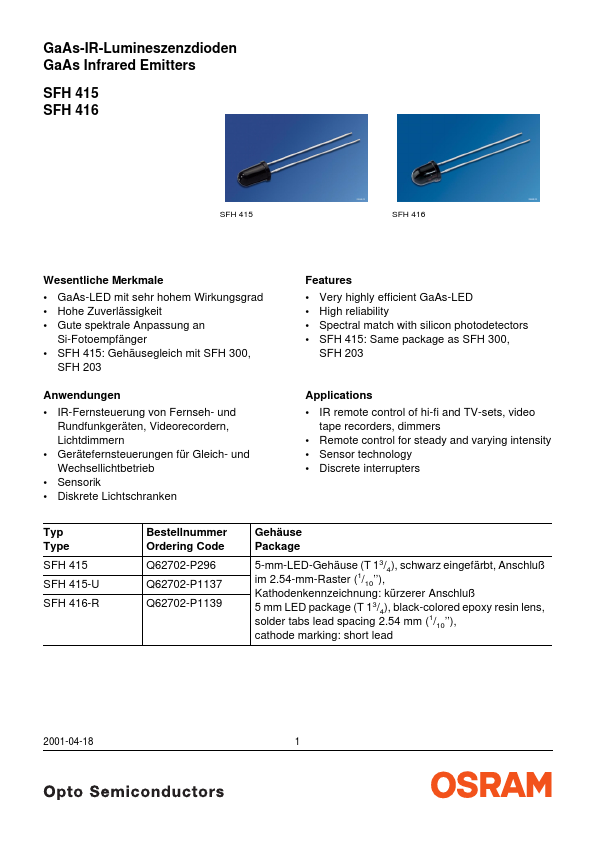

SFH416
Features
- Very highly efficient Ga As-LED
- High reliability
- Spectral match with silicon photodetectors
- SFH 415: Same package as SFH 300,
SFH 203
Applications
- IR remote control of hi-fi and TV-sets, video tape recorders, dimmers
- Remote control for steady and varying intensity
- Sensor technology
- Discrete interrupters
Typ Type SFH 415 SFH 415-U SFH 416-R
Bestellnummer Ordering Code Q62702-P296 Q62702-P1137 Q62702-P1139
Gehäuse Package
5-mm-LED-Gehäuse (T 13/4), schwarz eingefärbt, Anschluß im 2.54-mm-Raster (1/10’’), Kathodenkennzeichnung: kürzerer Anschluß 5 mm LED package (T 13/4), black-colored epoxy resin lens, solder tabs lead spacing 2.54 mm (1/10’’), cathode marking: short lead
2001-04-18

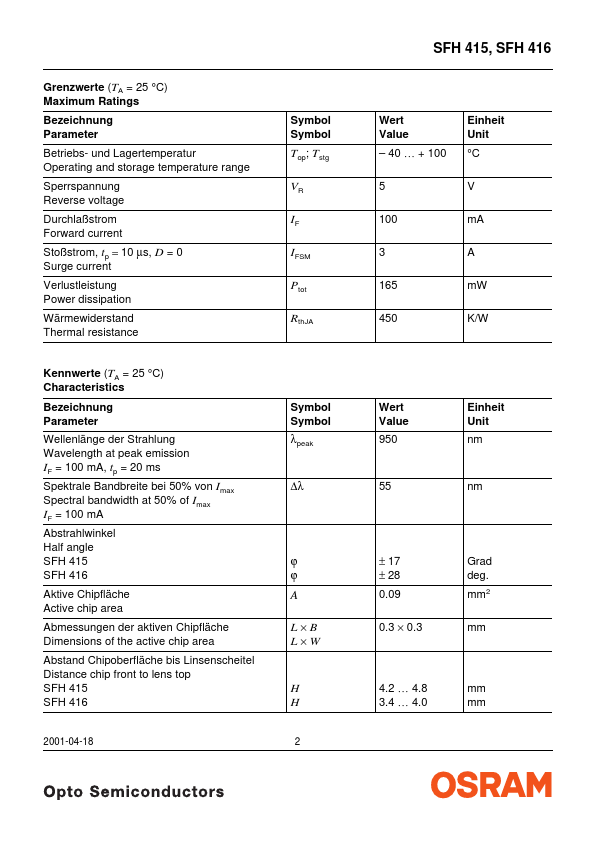

Grenzwerte (TA = 25 °C)
Maximum Ratings
Bezeichnung Parameter
Betriebs- und Lagertemperatur Operating and storage temperature range
Sperrspannung Reverse voltage
Durchlaßstrom Forward current
Stoßstrom, tp = 10 µs, D = 0
Surge current
Verlustleistung Power dissipation
Wärmewide...
