OSRAM SFH4170SA01
High Power Infrared Emitter
| Part No. | SFH4170SA01 |
|---|---|
| Datasheet | SFH4170SA01 Download |
| Manufacturer |  OSRAM |
| Description | High Power Infrared Emitter |
| Buy | Stock & Price |

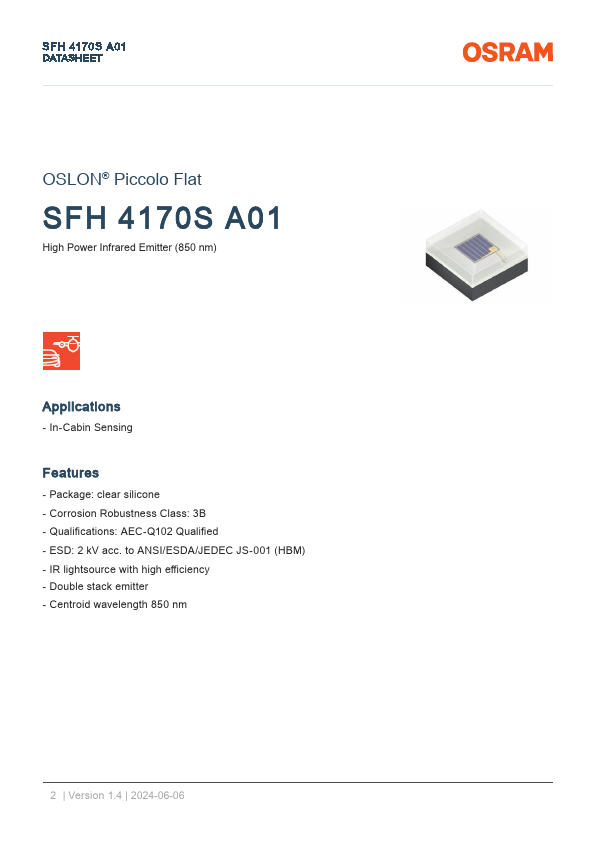

APPLICATIONS
- In-Cabin SensingFEATURES

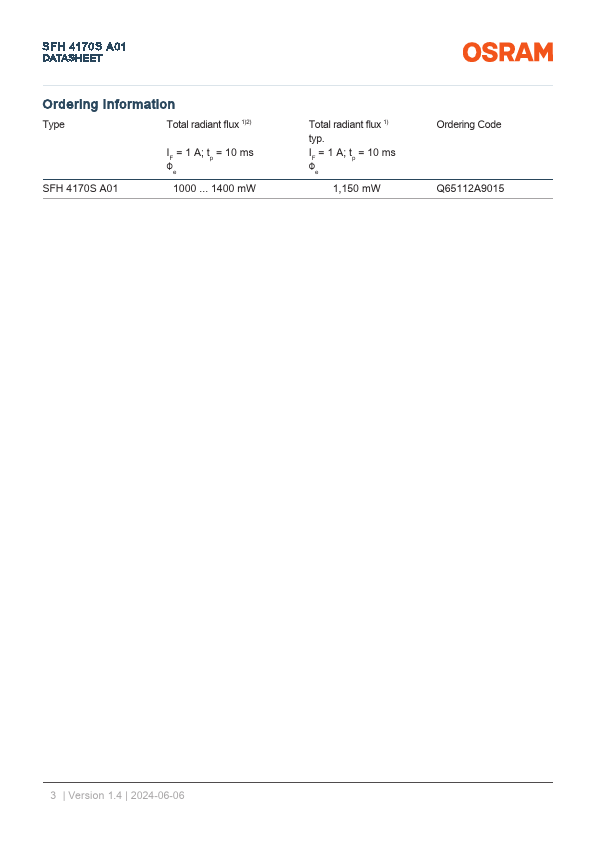

- Package: clear silicone - Corrosion Robustness Class: 3B - Qualifications: AEC-Q102 Qualified - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM) - IR lightsource with high efficiency - Double stack emitter - Centroid wavelength 850 nm 2 | Version 1.4 | 2024-06-06 SFH 4170S A01 DATASHEET Ordering Information Type Total radiant flux 1)2) SFH 4170S A01 IF = 1 A; tp = 10 ms Φe 1000 ... 1400 mW Total radiant flux 1) typ. IF = 1 A; tp = 10 ms Φe 1,150 mW Ordering Code Q65112A9015 3 | Version 1.4 | 2024-06-06 SFH 4170S A01 DATASHEETMAXIMUM RATINGS
TA = 25 °C Parameter Operating temperature Storage temperature Junction temperature Forward current Forward current pulsed tp ≤ 600 µs; D ≤ 0.005 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM) Symbol Top Tstg Tj IF IF pulse VR Ptot VESD min. max. min. max. max. max. max. max. max. max. Values -40 °C 105 °C -40 °C 105 °C 145 °C 1000 mA 2A 5V 3600 mW 2 k...
