SFH41747B
SFH41747B is IR EMITTER manufactured by ams OSRAM.

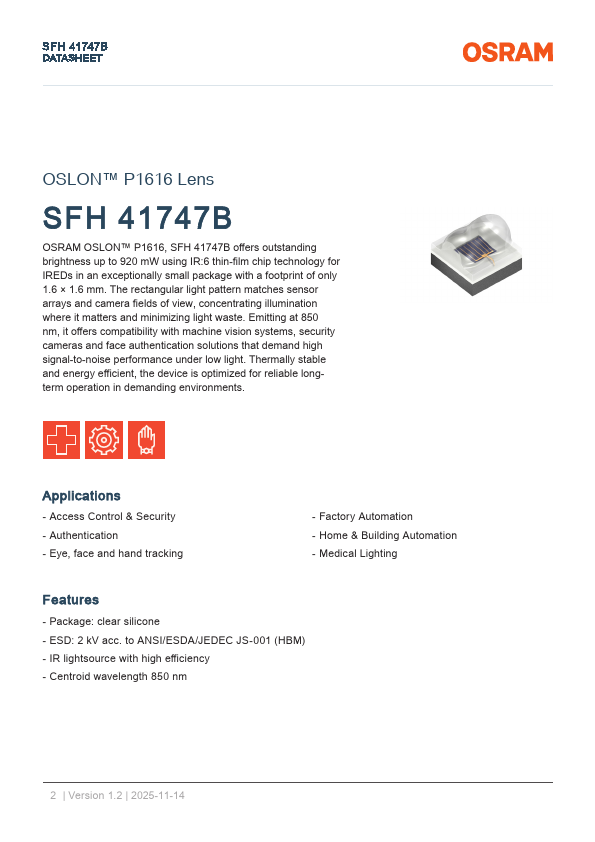

Features
- Package: clear silicone
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
- IR lightsource with high efficiency
- Centroid wavelength 850 nm
2 | Version 1.2 | 2025-11-14
SFH 41747B DATASHEET

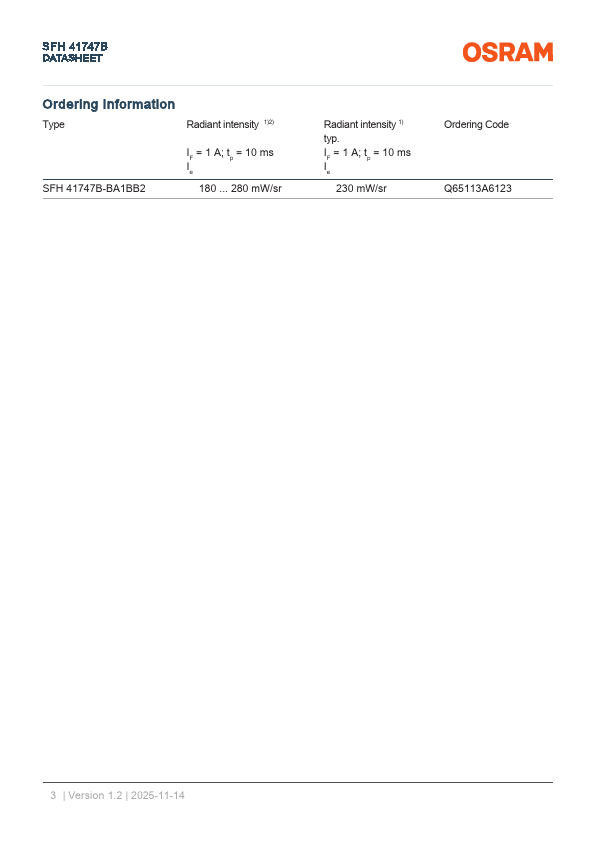

Ordering Information
Type
Radiant intensity 1)2)
SFH 41747B-BA1BB2
IF = 1 A; tp = 10 ms Ie
180 ... 280 m W/sr
Radiant intensity 1) typ. IF = 1 A; tp = 10 ms Ie
230 m W/sr
Ordering Code Q65113A6123
3 | Version 1.2 | 2025-11-14
SFH 41747B DATASHEET
Maximum Ratings
TA = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current Forward current pulsed tp ≤ 10 ms; D ≤ 0.005 Reverse voltage 3) ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Symbol Top
Tstg
Tj IF IF pulse
VR VESD min. max. min. max. max. max. max. max. max.
Values
-40 °C 105 °C -40 °C 105 °C 145 °C 1000 m A 2000 m A
5V 2 k V
Note: For the forward current and power consumption please see maximum permissible forward current diagram.
4 | Version 1.2 | 2025-11-14
SFH 41747B DATASHEET
Characteristics
IF = 1000 m A; tp = 10 ms; TA = 25 °C...
