SFH4257R - High Power Infrared Emitter

Features

  •  - Package: clear epoxy - Qualifications: AEC-Q102 Qualified - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - Black coloured TOPLED-package - Peak wavelength typ. 860 nm  2 | Version 1.10 | 2022-06-24 SFH 4257R.

📥 Download Datasheet

Datasheet Details

Part number SFH4257R
Manufacturer ams OSRAM
File Size 1.30 MB
Description High Power Infrared Emitter
Datasheet download datasheet SFH4257R Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SFH4257 High Power Infrared Emitter OSRAM GmbH
SFH425 GaAs-IR-Lumineszenzdiode in SMT-Gehause GaAs Infrared Emitter in SMT Package Siemens Semiconductor Group
SFH425 (SFH420 / SFH425) GaAs Infrared Emitter OSRAM GmbH
SFH4250 High Power Infrared Emitter OSRAM GmbH
SFH4250S High Power Infrared Emitter OSRAM GmbH

Other Datasheets by ams OSRAM

Part Number Description
SFH4211 GaAs Infrared Emitter
SFH400 GaAs Infrared Emitter
SFH401 GaAs Infrared Emitter
SFH4030B Infrared Emitter
SFH4043 High Power Infrared Emitter

Full PDF Text Transcription

Click to expand full text

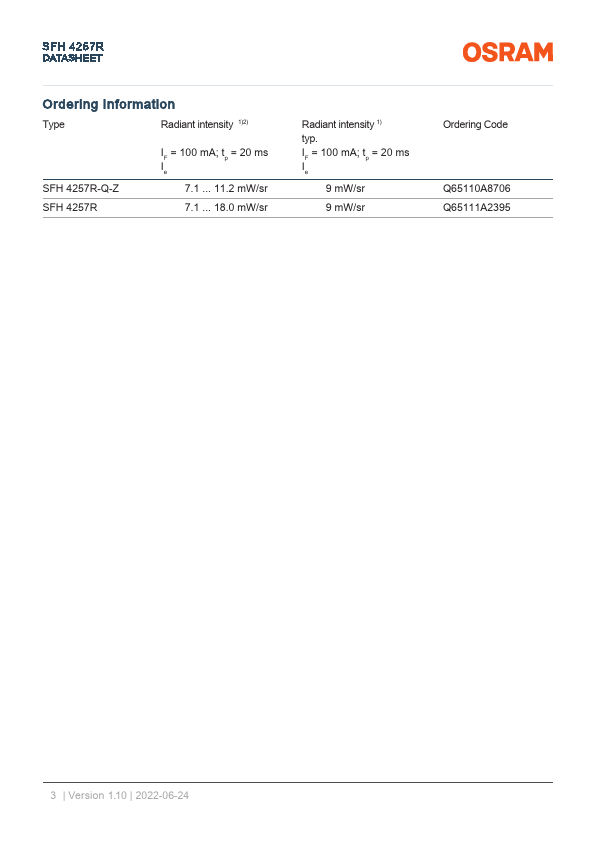

SFH 4257R DATASHEET TOPLED® Black SFH 4257R High Power Infrared Emitter (850 nm) Applications - Electronic Equipment - Industrial Automation (Machine Controls, Light Barriers, Vision Controls) - Measurement Levelling Features:  - Package: clear epoxy - Qualifications: AEC-Q102 Qualified - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - Black coloured TOPLED-package - Peak wavelength typ. 860 nm  2 | Version 1.10 | 2022-06-24 SFH 4257R DATASHEET Ordering Information  Type Radiant intensity  1)2) SFH 4257R-Q-Z SFH 4257R IF = 100 mA; tp = 20 ms Ie 7.1 ... 11.2 mW/sr 7.1 ... 18.0 mW/sr Radiant intensity 1) typ. IF = 100 mA; tp = 20 ms Ie 9 mW/sr 9 mW/sr Ordering Code Q65110A8706 Q65111A2395  3 | Version 1.
