SFH4546

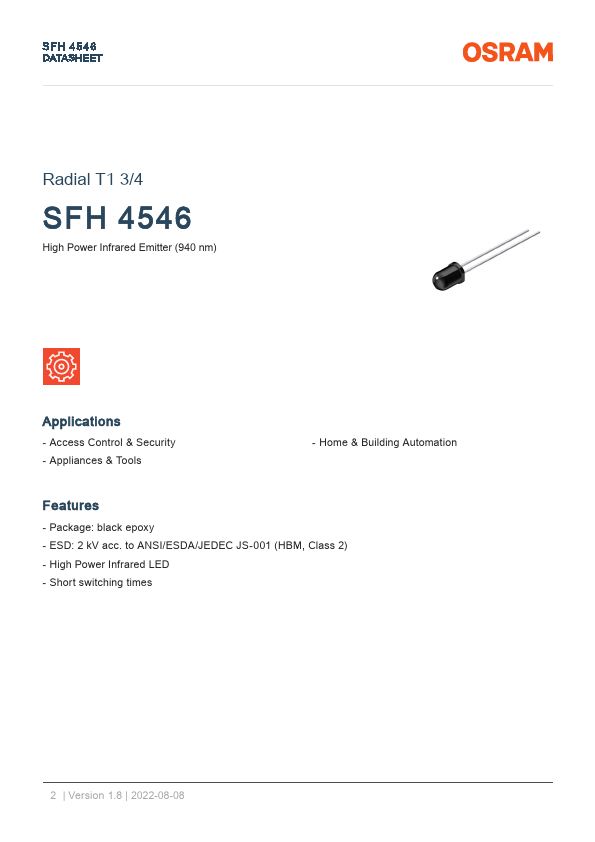

Features
- Package: black epoxy
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- High Power Infrared LED
- Short switching times
2 | Version 1.8 | 2022-08-08
SFH 4546 DATASHEET

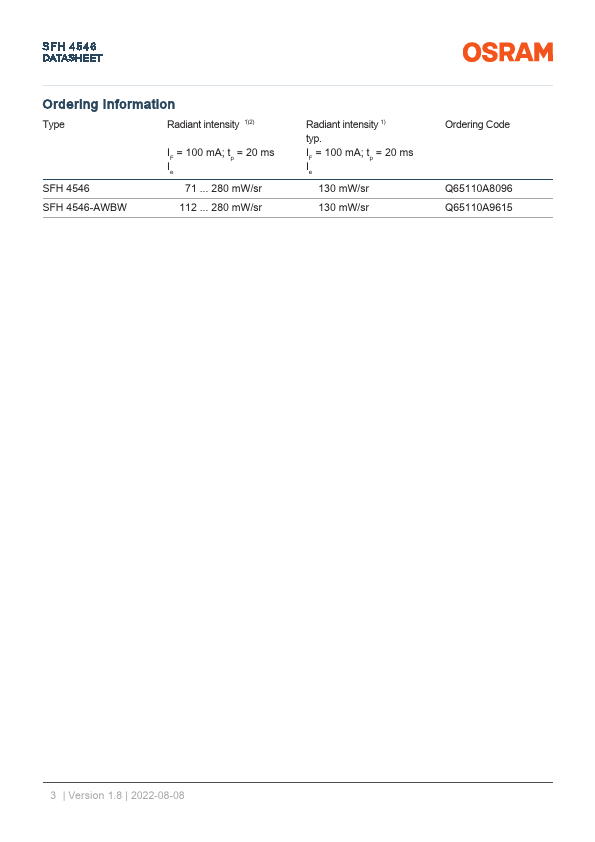

Ordering Information
Type
Radiant intensity 1)2)
SFH 4546 SFH 4546-AWBW
IF = 100 m A; tp = 20 ms Ie
71 ... 280 m W/sr
112 ... 280 m W/sr
Radiant intensity 1) typ. IF = 100 m A; tp = 20 ms Ie
130 m W/sr
130 m W/sr
Ordering Code
Q65110A8096 Q65110A9615
3 | Version 1.8 | 2022-08-08
SFH 4546 DATASHEET
Maximum Ratings
TA = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current Forward current pulsed tp ≤ 400 µs; D ≤ 0.005 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top
Tstg
Tj IF IF pulse
VR Ptot VESD min. max. min. max. max. max. max. max. max. max.
Values
-40 °C 100 °C -40 °C 100 °C 100 °C 100 m A
1A
5V 180 m W
2 k...
