OSRAM SFH4550
High Power Infrared Emitter
| Part No. | SFH4550 |
|---|---|
| Datasheet | SFH4550 Download |
| Manufacturer |  OSRAM |
| Description | High Power Infrared Emitter |
| Buy | Stock & Price |

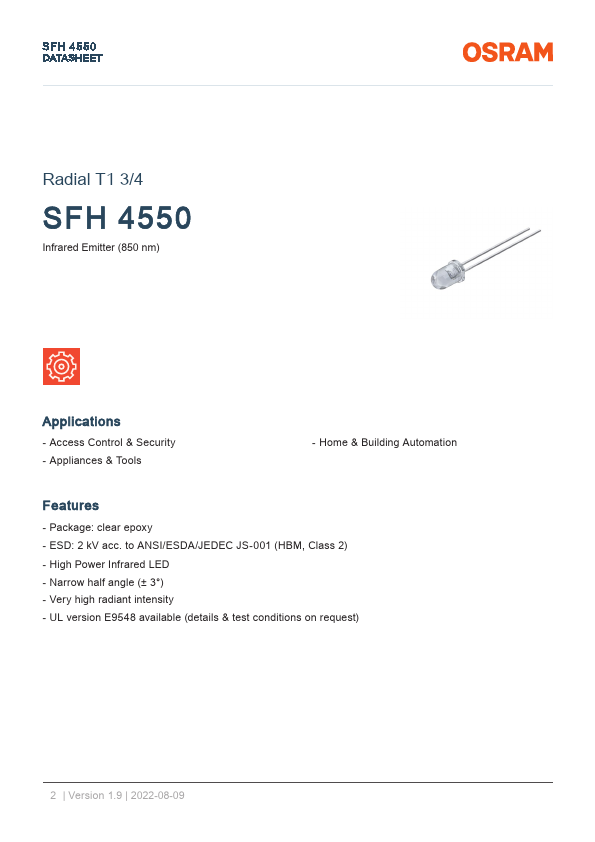

APPLICATIONS
- Access Control & Security - Appliances & Tools - Home & Building AutomationFEATURES

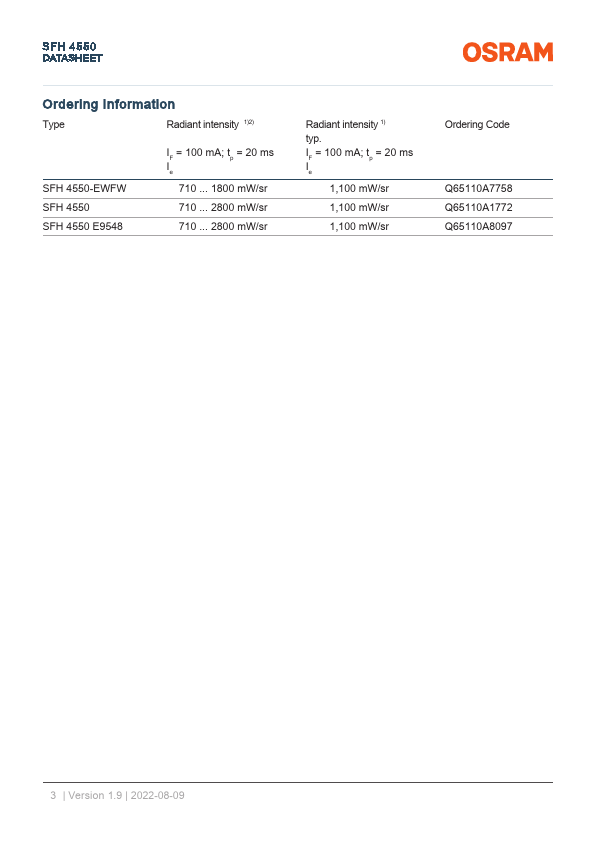

- Package: clear epoxy - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - High Power Infrared LED - Narrow half angle (± 3°) - Very high radiant intensity - UL version E9548 available (details & test conditions on request) 2 | Version 1.9 | 2022-08-09 SFH 4550 DATASHEET Ordering Information Type Radiant intensity 1)2) SFH 4550-EWFW SFH 4550 SFH 4550 E9548 IF = 100 mA; tp = 20 ms Ie 710 ... 1800 mW/sr 710 ... 2800 mW/sr 710 ... 2800 mW/sr Radiant intensity 1) typ. IF = 100 mA; tp = 20 ms Ie 1,100 mW/sr 1,100 mW/sr 1,100 mW/sr Ordering Code Q65110A7758 Q65110A1772 Q65110A8097 3 | Version 1.9 | 2022-08-09 SFH 4550 DATASHEETMAXIMUM RATINGS
TA = 25 °C Parameter Operating temperature Storage temperature Junction temperature Forward current Forward current pulsed tp ≤ 400 µs; D ≤ 0.005 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) Symbol Top Tstg Tj IF IF pulse VR Ptot VESD min. max. min. max. max. max. max. max. max. max.
