Datasheet Summary
SFH 4641 DATASHEET
MIDLED®
SFH 4641
Narrow beam LED in MIDLED package (940 nm)
Applications
- Access Control & Security
- Appliances & Tools
- Factory Automation
- Robotics
Features
- Package: clear silicone
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.
- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Short switching times
- Narrow half angle
- Taping as Toplooker
- Also available as Sidelooker (SFH4646)
2 | Version 1.11 | 2023-05-15
SFH 4641 DATASHEET

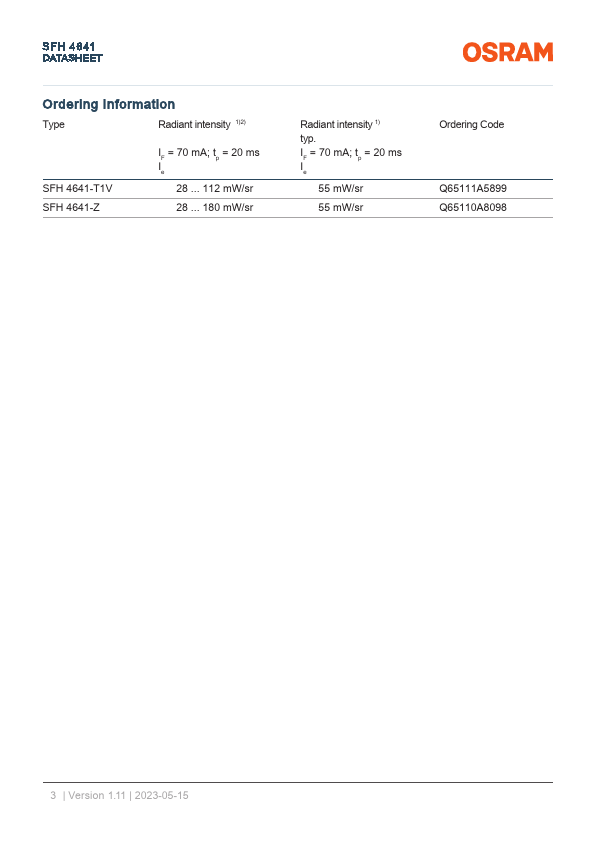

Ordering Information
Type
Radiant intensity 1)2)
SFH 4641-T1V SFH 4641-Z
IF = 70 mA; tp...
